Amplifier: Service and Repair

REMOVAL AND INSTALLATION

CAUTION: To remove the front seat assembly of vehicle with side air bag, refer to SRS Service Precautions and Curtain Air Bag Module(s).

Pre-removal & Post-installation Operation:

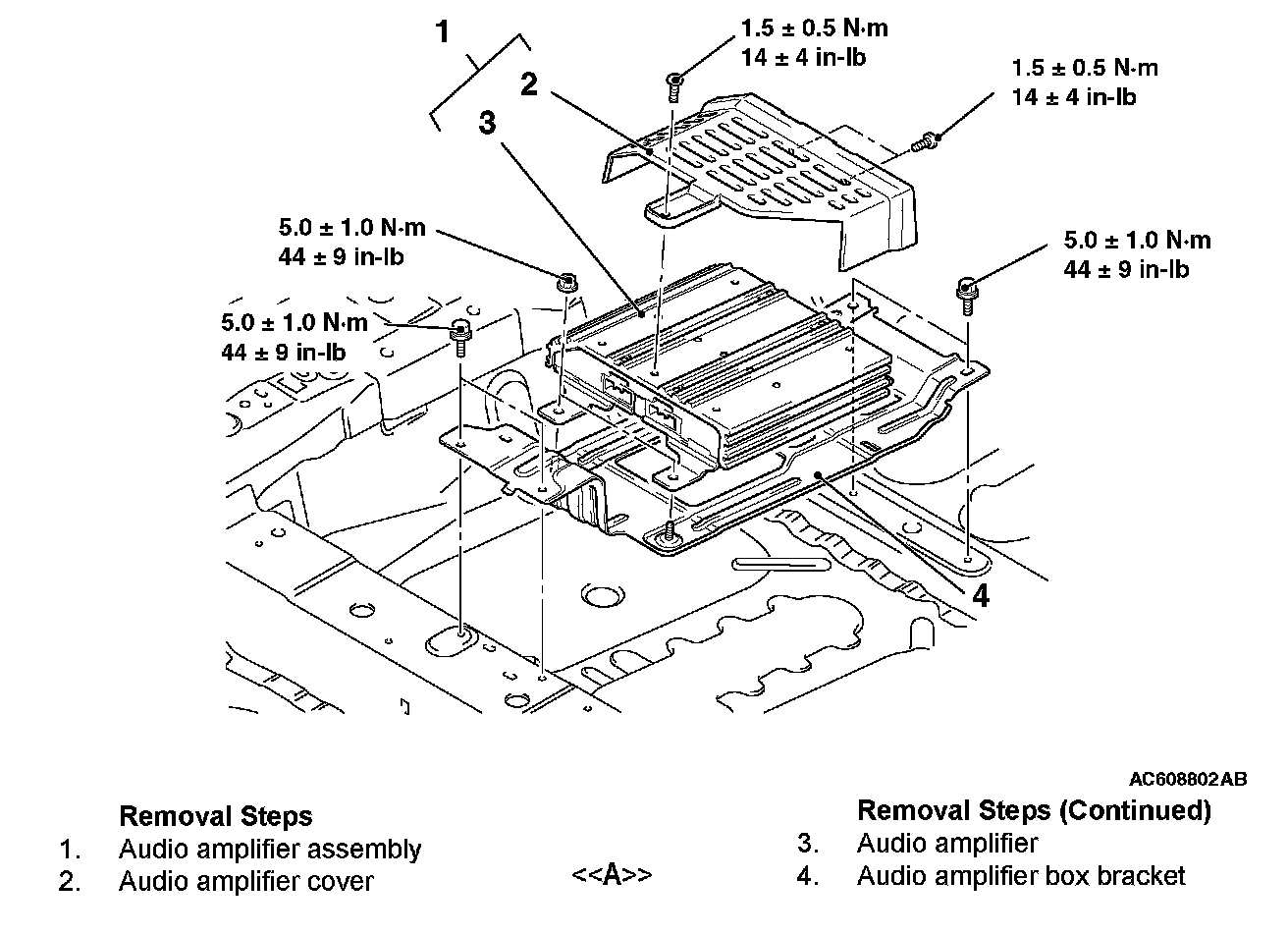

Removal Steps 1-4:

REMOVAL SERVICE POINT

[[A]] REMOVAL OF AUDIO AMPLIFIER BOX BRACKET
Turn up the carpet, and remove the audio amplifier box bracket.
