Entertainment Systems: Testing and Inspection

INSPECTION

AUDIO AND VIDEO ADAPTER INSPECTION

1. Remove the audio and video adapter.

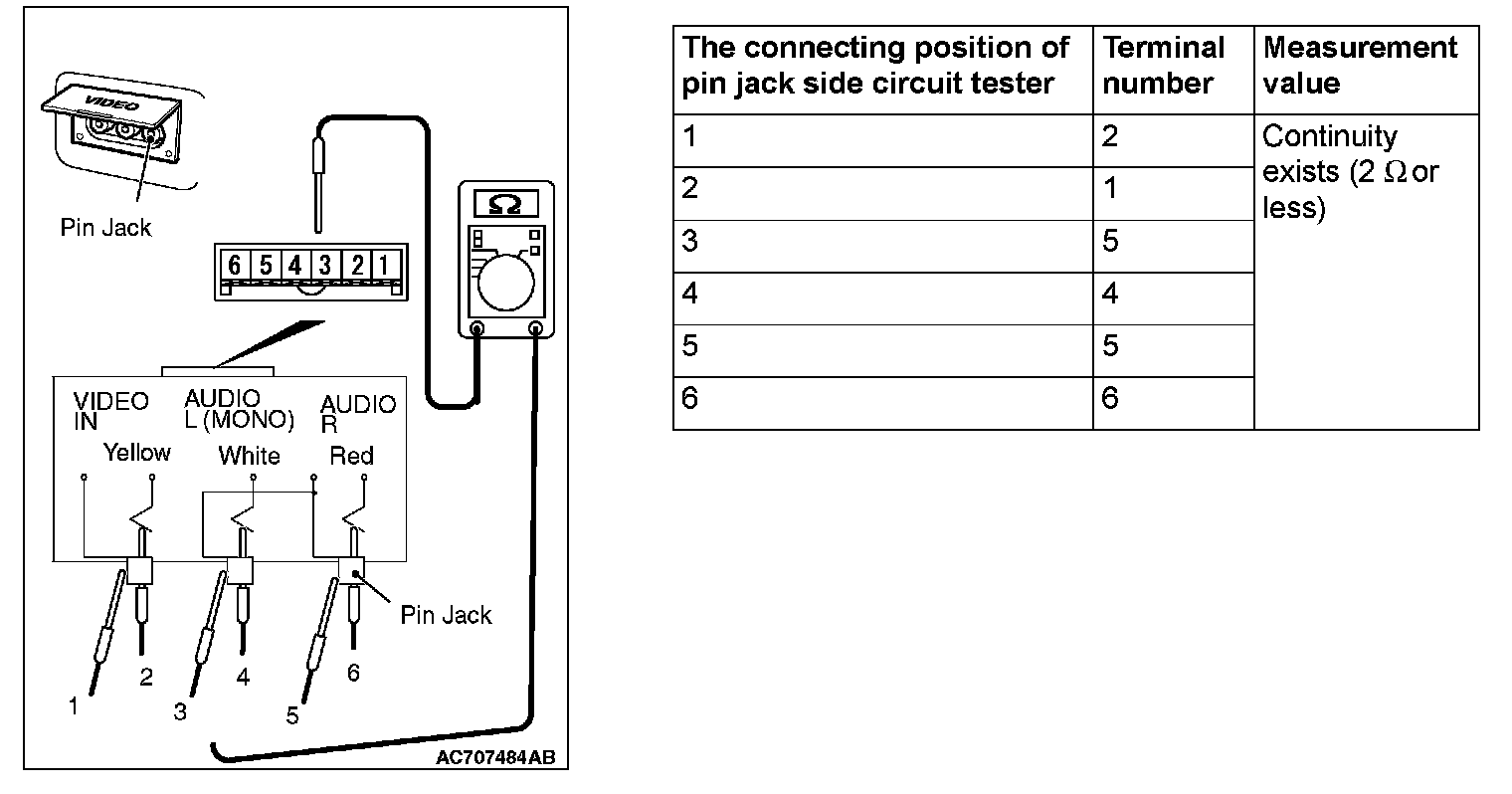

2. Check that continuity exists between the terminal and the pin jack of audio and video adapter.
