Home >> Mitsubishi >> 2008 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antenna >> Service and Repair

Antenna: Service and Repair

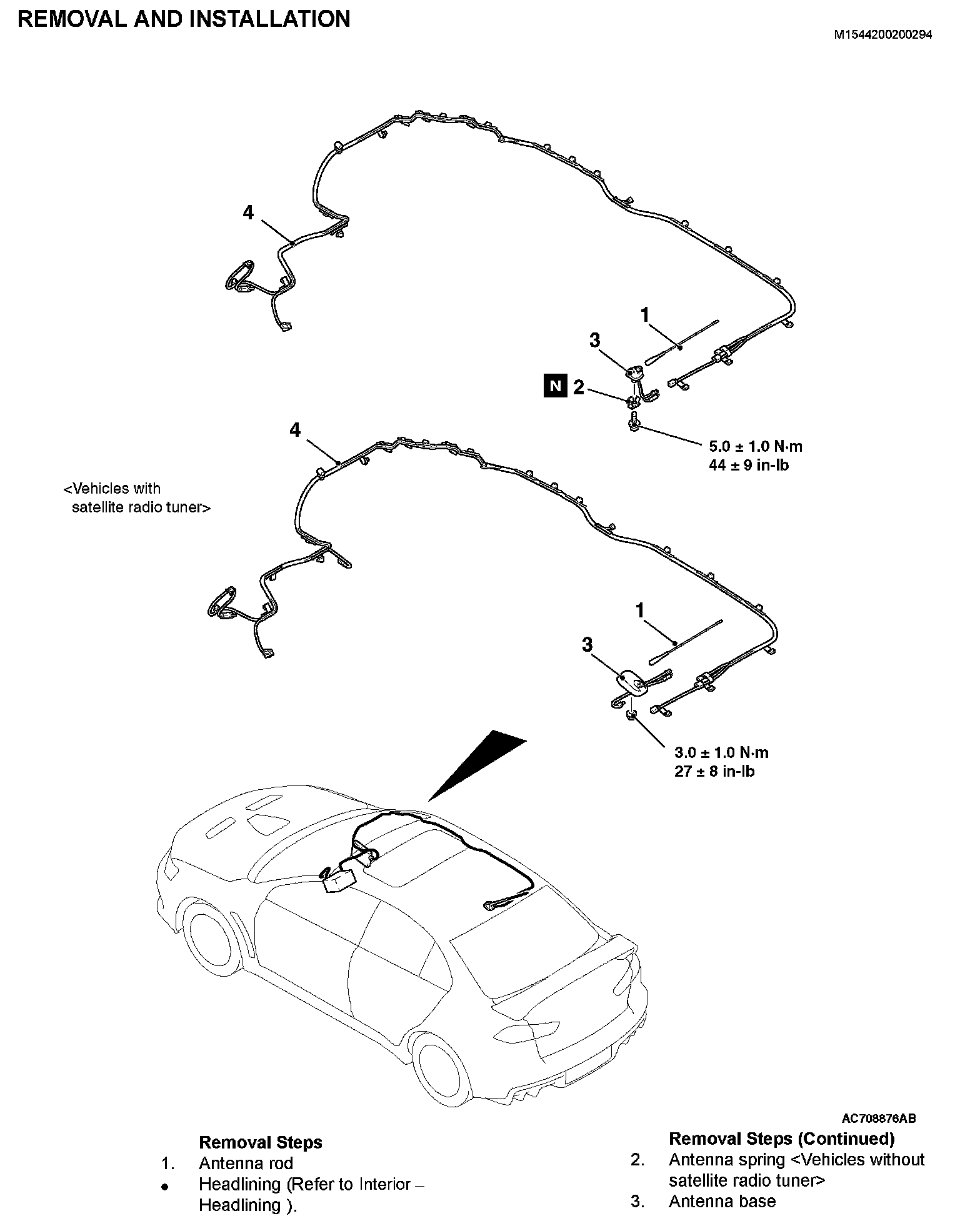

Removal Steps 1-3 (Part 1):

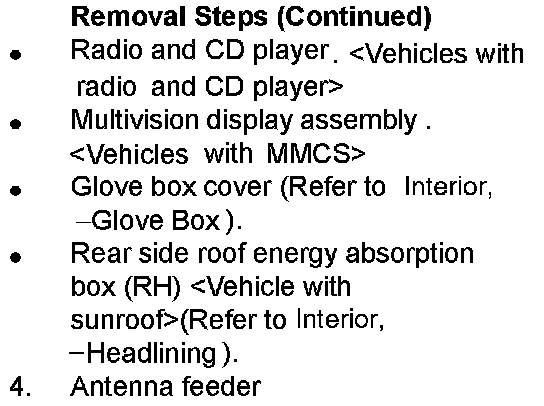

Removal Steps 1-4 (Part 2):
