Combination Meter
DTC U1415: Coding Not Completed/Data FailCAUTION:
- If DTC U1415 is set, diagnose the CAN bus lines.
- When replacing the ECU, always check that the communication circuit is normal.
DIAGNOSTIC FUNCTION
If the vehicle information data is not registered to the combination meter, the combination meter sets DTC U1415.
JUDGEMENT CRITERIA
With the global coding counter value "0," if all the global coding data (vehicle information) are not stored, the combination meter determines that a problem has occurred.
TROUBLESHOOTING HINTS
- The CAN bus line may be defective.
- The combination meter may be defective.
- The ETACS-ECU may be defective.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicles Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

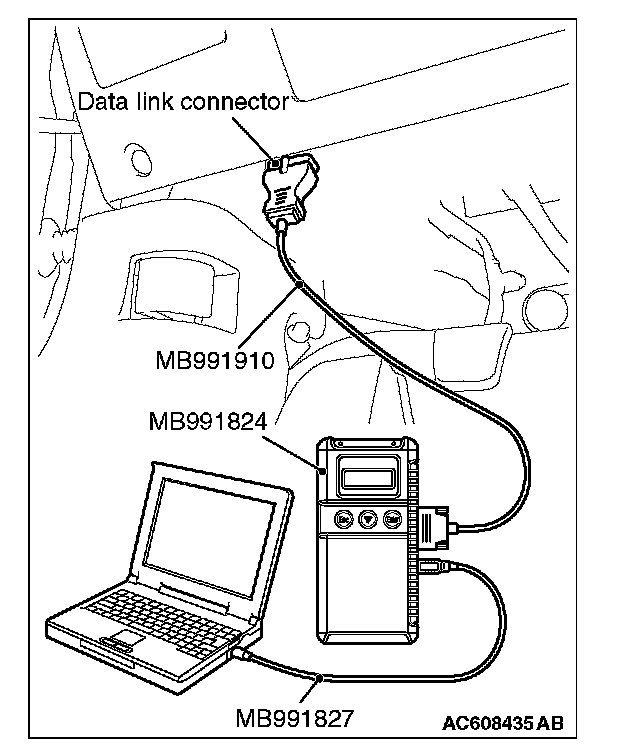

1. Connect scan tool MB991958. Refer to "How to connect the Scan Tool (M.U.T.-III)." How to Connect the Scan Tool (M.U.T.-III)
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q : Is the CAN bus line found to be normal?
YES : Go to Step 2.
NO : Repair the CAN bus line (Refer to Controller Area Network, Diagnosis).
STEP 2. Using scan tool MB991958, read the ETACS-ECU diagnostic trouble code.
Check if DTC is set to the ETACS-ECU.
Q : Is the DTC set?
YES : Troubleshoot the ETACS-ECU. Diagnostic Trouble Code Descriptions
NO : Go to Step 3.
STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the combination meter.
1. Erase the DTC.
2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
3. Check if DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q : Is the DTC set?
YES : Replace the combination meter.
NO : The trouble can be an intermittent malfunction (Refer to General (Body and Chassis) -How to use Troubleshooting/inspection Service Points -How to Cope with Intermittent Malfunction).
