Satellite Radio Tuner
DTC U0184: Audio CAN TimeoutCAUTION:
- If DTC U0184 is set to the ETACS-ECU, always diagnose the CAN bus line.
- Before replacing the ECU, ensure that the communication circuit is normal.
TROUBLE JUDGMENT
If the signal from radio and CD player cannot be received, the satellite radio tuner sets DTC U0184.
JUDGMENT CRITERIA
After the following statuses continue to be true for 5 seconds, if the communication with the radio and CD player cannot be established for 0.6 second or more, the satellite radio tuner determines that a problem has occurred.
- No abnormality is present to the network.
- Ignition switch is in the ON position.
- No abnormality is present to the power supply fuse, or the odometer value is at 80.5 km (50.0 miles) or more.
- ETACS-ECU system voltage is at 10 - 16 volts.
TROUBLESHOOTING HINTS
- The radio and CD player may be defective.
- The satellite radio tuner may be defective.
- The CAN bus may be defective.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

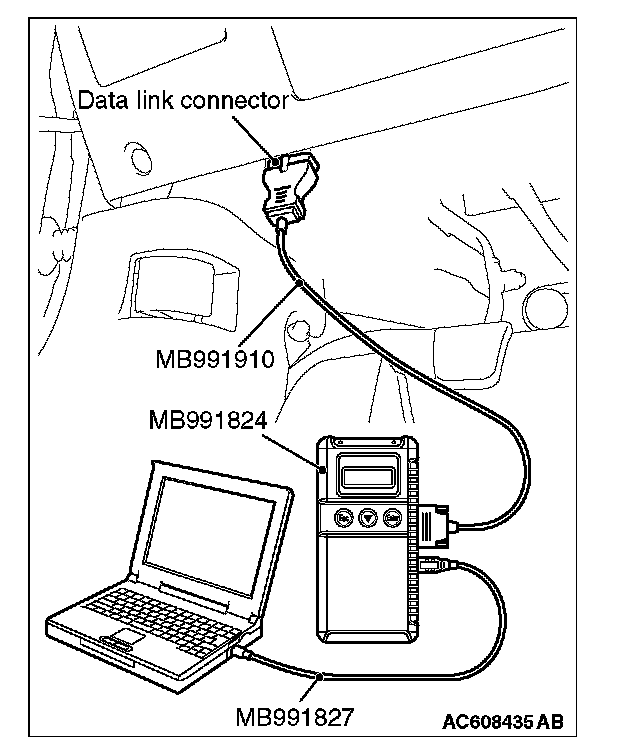

1. Connect scan tool MB991958. Refer to "How to connect the Scan Tool (M.U.T.-III)." Scan Tool Connecting
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q : Is the CAN bus line found to be normal?
YES : Go to Step 2.
NO : Repair the CAN bus line (Refer to Controller Area Network, Diagnosis).
STEP 2. Using scan tool MB991958, read the audio diagnostic trouble code.
Check if DTC is set to the radio and CD player.
Q : Is the DTC set?
YES : Troubleshoot the audio. Diagnostic Trouble Code Descriptions
NO : Go to Step 3.
STEP 3. Recheck for diagnostic trouble code.
Check again if the DTC is set to the satellite radio tuner.
1. Erase the DTC.
2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
3. Check if DTC is set.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q : Is the DTC set?
YES : Replace the satellite radio tuner.
NO : The trouble can be an intermittent malfunction (Refer to General (Body and Chassis), How to use Troubleshooting/inspection Service Points- How to Cope with Intermittent Malfunction).
