P1802

DTC P1802: Shift Lever System (LIN communication malfunction)





CAUTION:
^ If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.
^ Whenever the ECU is replaced, ensure that the CAN bus lines are normal.

DIAGNOSTIC FUNCTION
TC-SST-ECU checks that the CAN back-up communication (LIN) is normal.

DESCRIPTIONS OF MONITOR METHODS
The CAN back-up communication is determined to be abnormal.

PROBABLE CAUSES
^ Malfunction of the shift lever-ECU
^ Malfunction of the LIN bus
^ Malfunction of TC-SST-ECU

DIAGNOSTIC PROCEDURE

STEP 1. Scan tool CAN bus diagnostics
Using scan tool MB991958, diagnose the CAN bus lines.

Q: Is the check result normal?
YES: Go to Step 2.
NO: Repair the CAN bus lines. After repairing the CAN bus line, go to Step 2.

STEP 2. Scan tool diagnostic trouble code
Check the shift lever diagnostic trouble code.

Q: Is the DTC set?
YES: Perform the relevant troubleshooting.
NO: Go to Step 3.

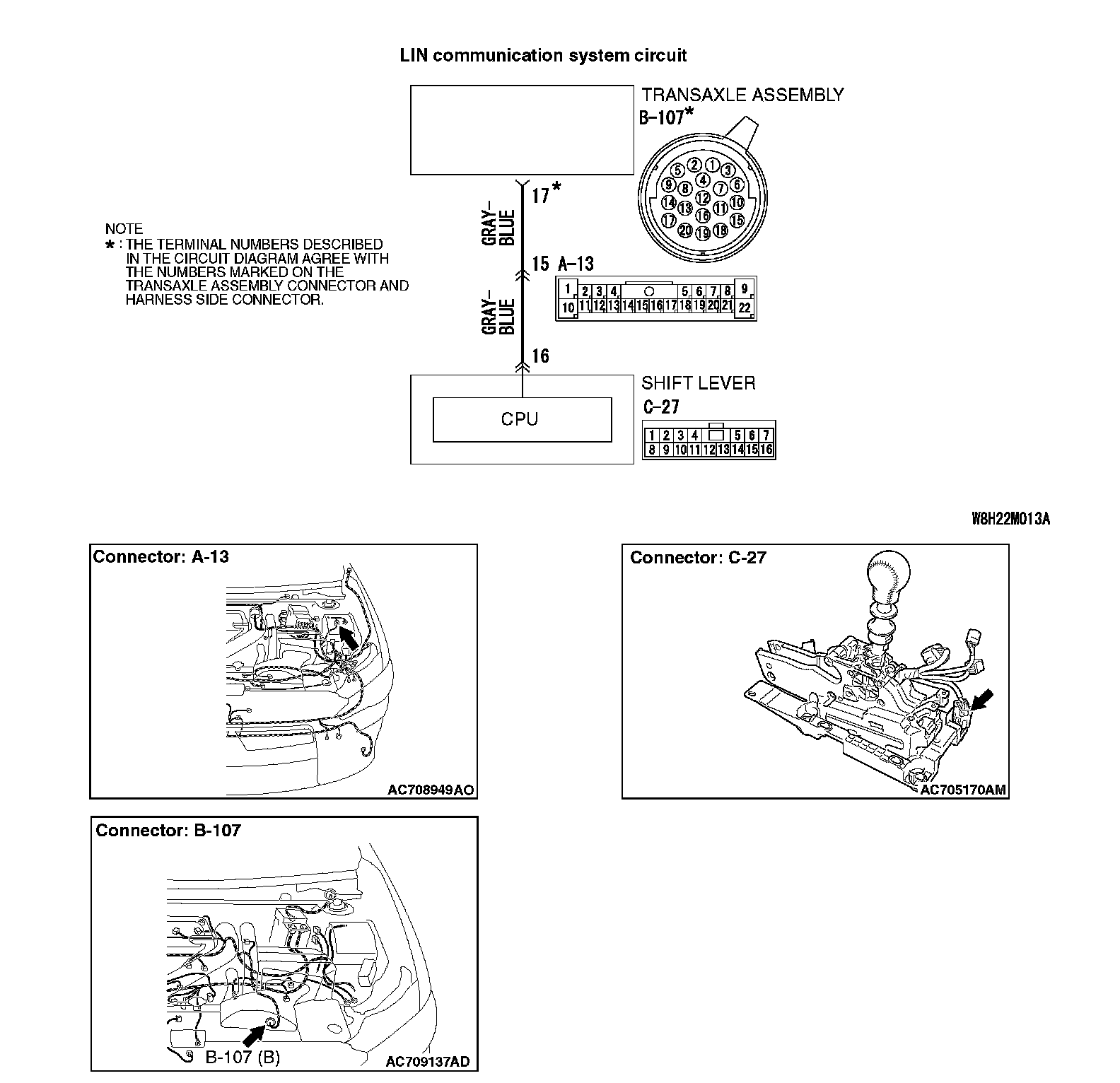

STEP 3. Inspection of the TC-SST-ECU connector, intermediate connector, and shift lever-ECU connector: B-107, A-13, C-27
Check for the contact with terminals.

Q: Is the check result normal?
YES: Go to Step 4.
NO: Repair the defective connector.

STEP 4. Check the wiring harness between B-107 TC-SST-ECU connector terminal No. 17 and C-27 shift lever-ECU connector terminal No. 16.
Check the communication line for open or short circuit.

Q: Is the check result normal?
YES: Go to Step 5.
NO: Repair the wiring harness.

STEP 5. Replace the shift lever assembly, and check if the diagnostic trouble code is reset.
1) Replace the shift lever assembly.
2) Check the DTC

Q: Is DTC No. P1802 set?
YES: Replace the TC-SST assembly.
NO: Intermittent malfunction.
