P1590

DTC P1590: TCM to ECM Communication Error in Torque Reduction Request

TECHNICAL DESCRIPTIONS OF MONITOR METHODS
The ECM checks whether the errors in data communications sent by the TCM exist or not.

MONITOR EXECUTION
Continuous

MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)

Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable

Sensor (The sensor below is determined to be normal)
- Not applicable

DTC SET CONDITIONS

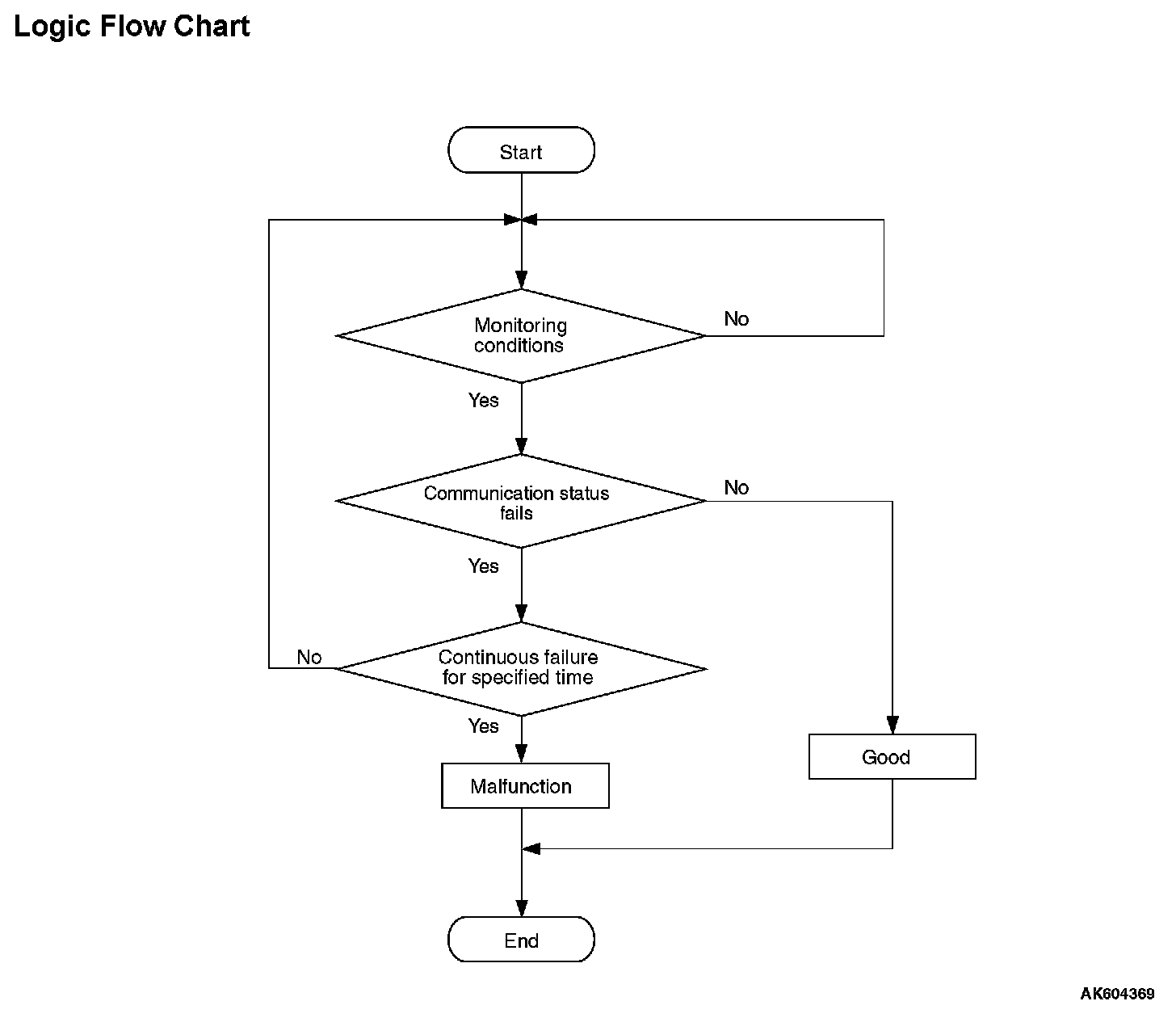

Logic Flow Chart:

Check Condition
- Ignition switch is "ON" position.

Judgment Criterion
- ECM detects an error in communication between ECM and TCM.

FAIL-SAFE AND BACKUP FUNCTION
- Engine output is restricted.

OBD-II DRIVE CYCLE PATTERN
- None.

TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- CAN line harness damage or connector damage.
- ECM failed.

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

STEP 1. Using scan tool MB991958, diagnose CAN bus line.






CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Diagnose CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line normal?

YES : Go to Step 2.

NO : Repair the CAN bus line. Refer to Controller Area Network, Can Bus Diagnostics Table.

STEP 2. Using scan tool MB991958, read the diagnostic trouble code (DTC).

1. Turn the ignition switch to the "ON" position.
2. Read the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is DTC P1590 set?

YES : Replace the ECM. When the ECM is replaced, register the ID code. Refer to Keyless Operation System (KOS), ID Code Registration Necessity Judgment Table [Vehicles with KOS> or Wireless Control Module, ID Codes Registration Judgment Table [Vehicles with WCM>.

NO : It can be assumed that this malfunction is intermittent. Refer to General (Body and Chassis), How to Use Troubleshooting/Inspection Service Points - How to Cope with Intermittent Malfunctions.
