Home >> Mitsubishi >> 2008 >> Lancer Evolution L4-2.0L Turbo (4B11T/C) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Supplemental Restraint System (SRS) >> Supplemental Restraint System (SRS) [SRS ECU]

Supplemental Restraint System (SRS) [SRS ECU]

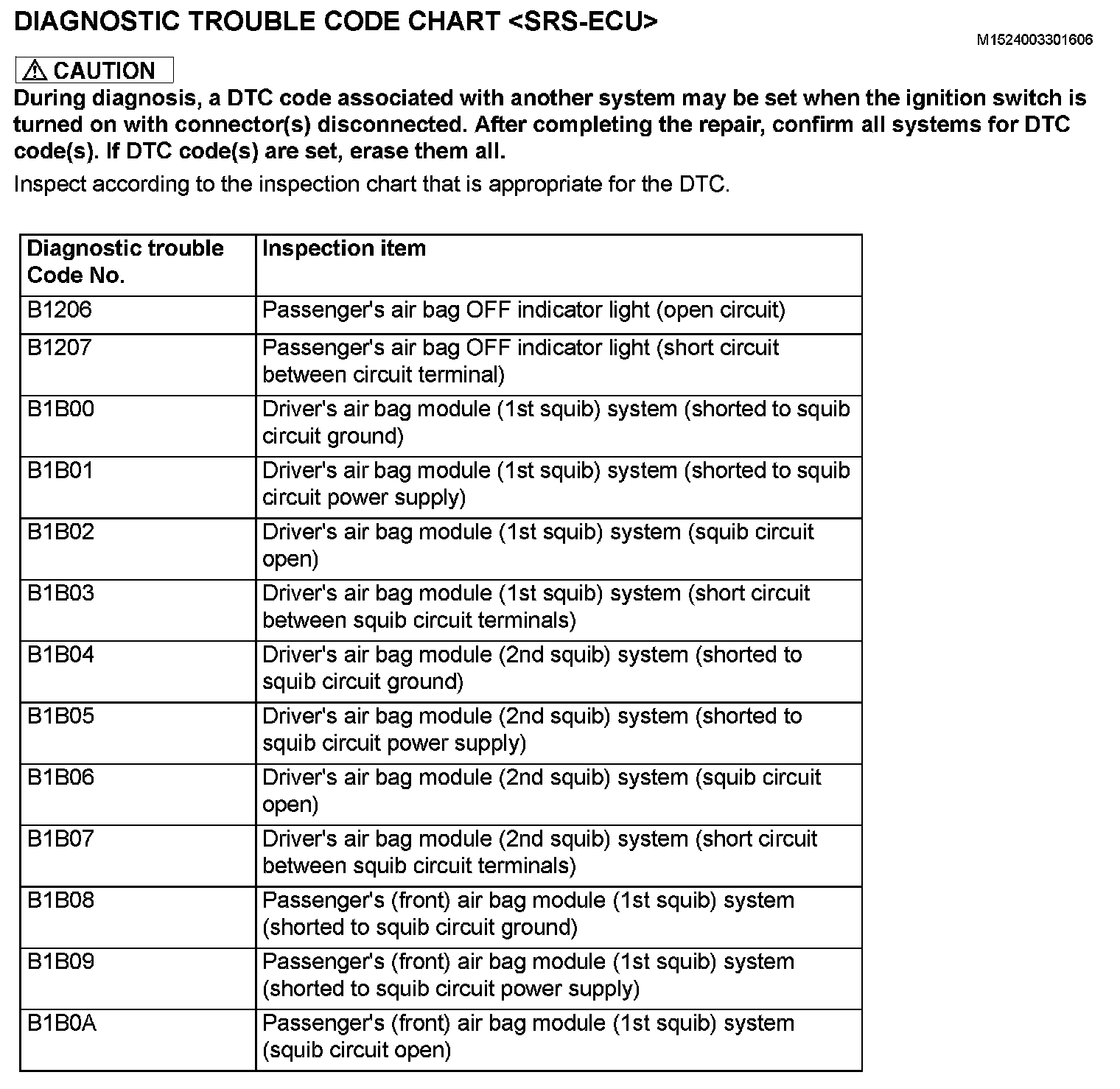

B1206 - B1B0A:

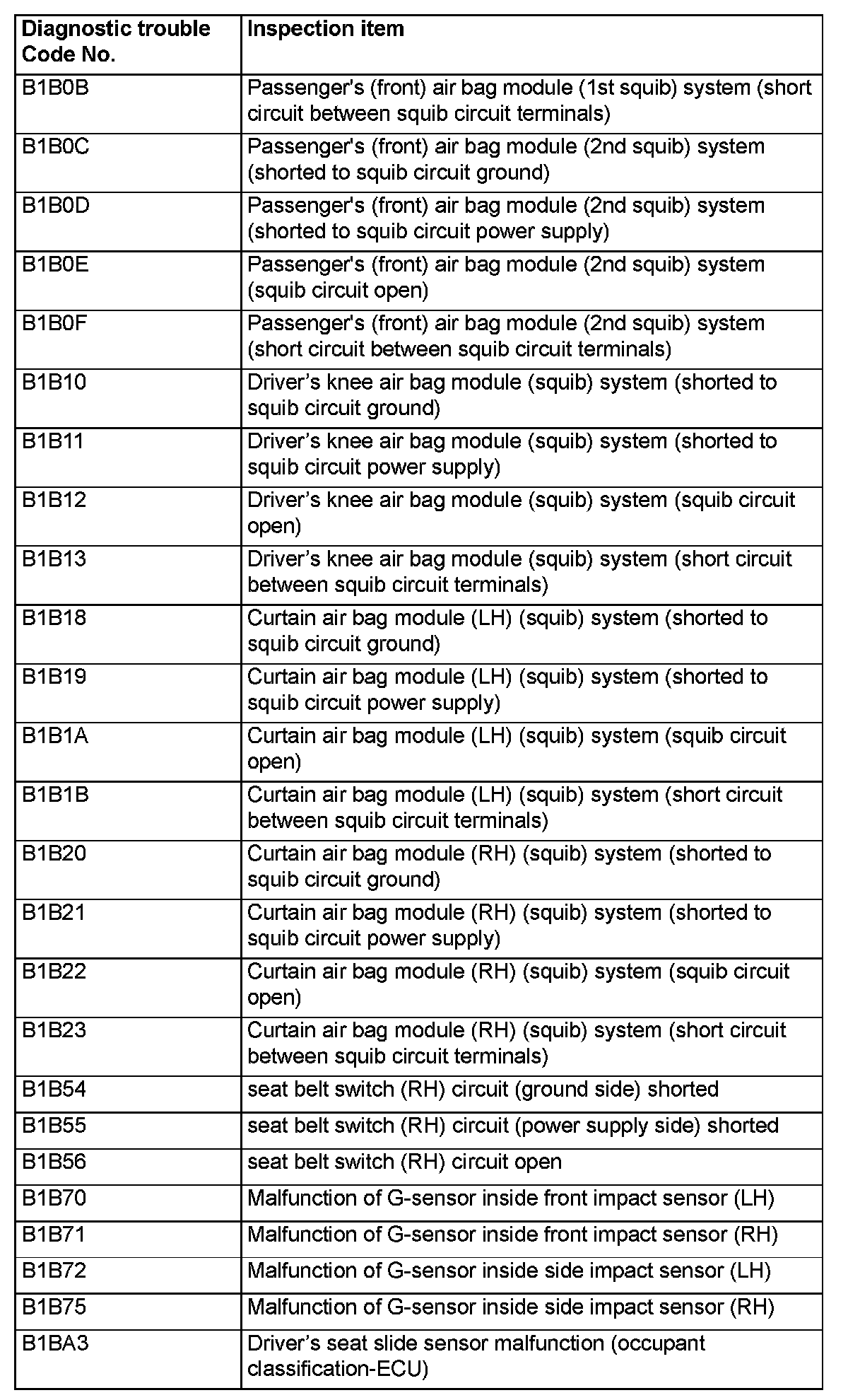

B1B0B - B1BA3:

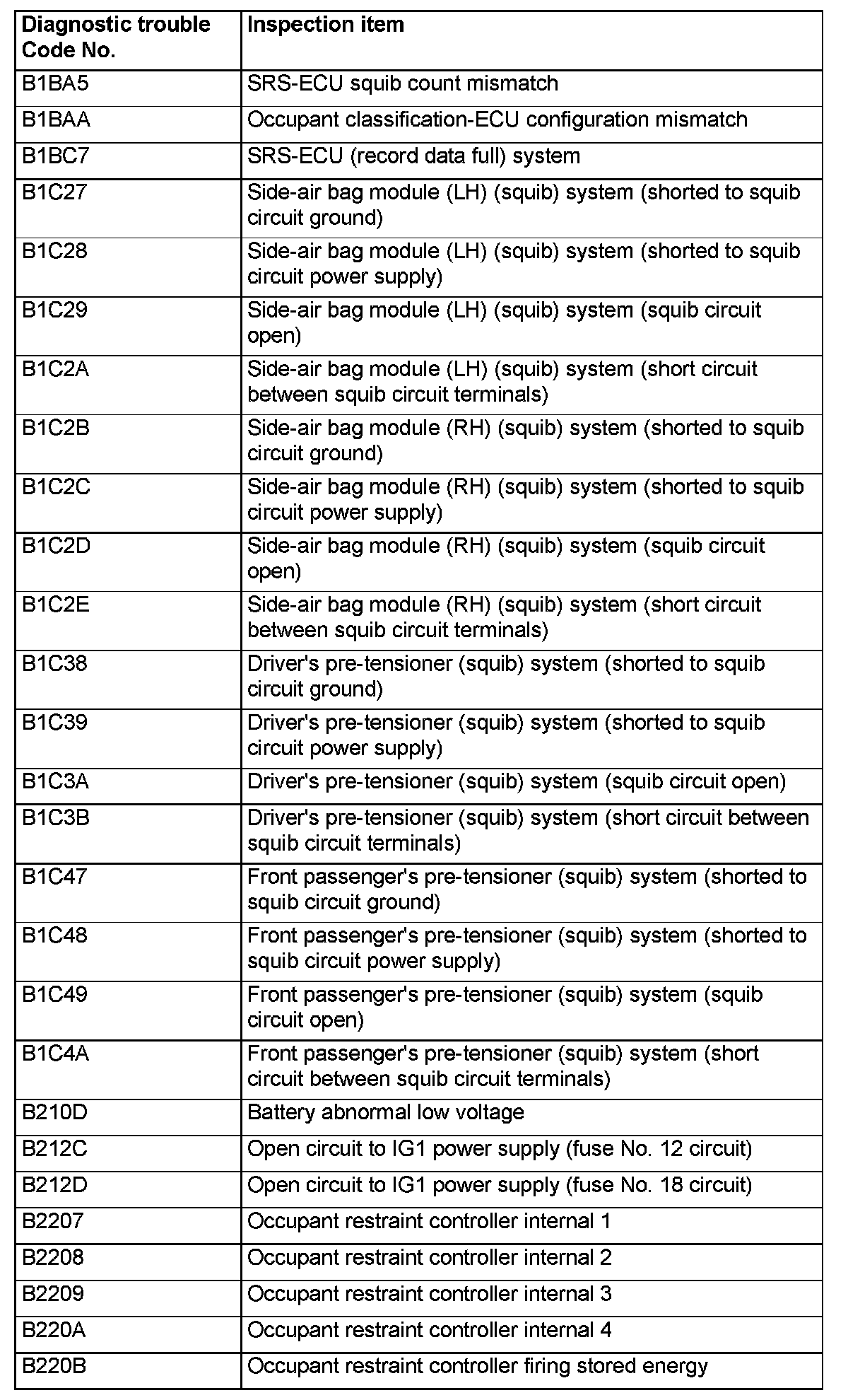

B1BA5 - B220B:

B220C - B223D / U019 - U1415:
