Wiper System Inspection

WINDSHIELD INTERMITTENT WIPER INTERVAL CHECK

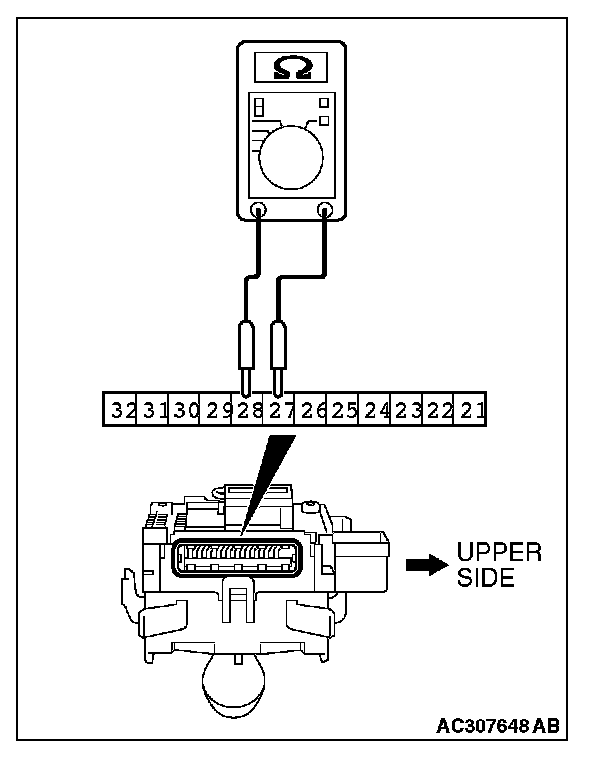

Check that the resistance varies between 0 and 1 Kilo ohm when the windshield intermittent interval is turned from FAST to SLOW by after measuring resistance between connector terminals 27 and 28 at the column switch.
