Trailing Arm: Service and Repair

TRAILING ARM

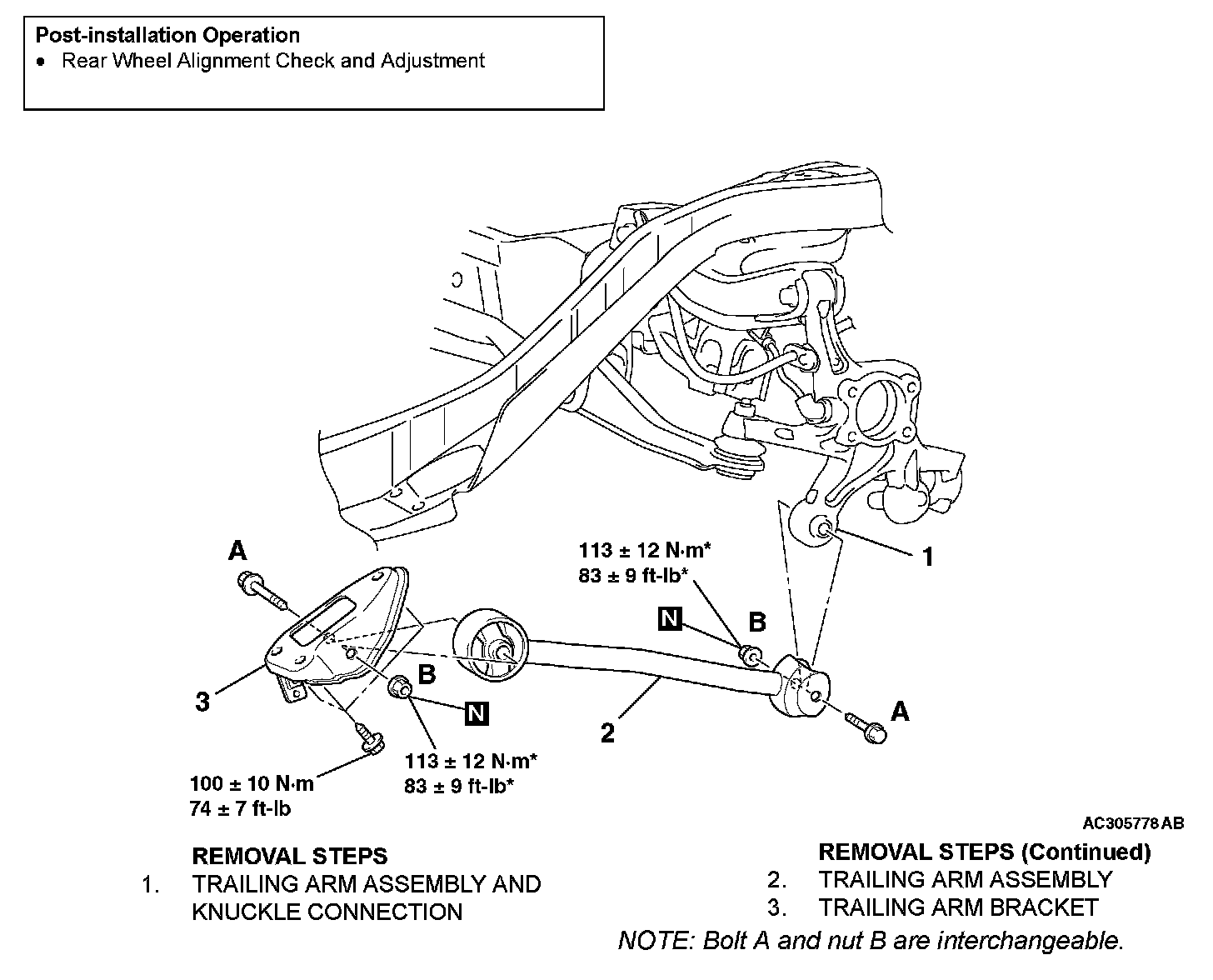

REMOVAL AND INSTALLATION

CAUTION: *:Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

INSPECTION
^ Check the bushings for wear and deterioration.
^ Check the trailing arm for bending or breakage.
^ Check all bolts for condition and straightness.
