Lower Control Arm

LOWER ARM
REMOVAL AND INSTALLATION

CAUTION: *:Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on the ground in an unladen condition.

REMOVAL SERVICE POINT
[[A]] LOWER ARM BOLT REMOVAL

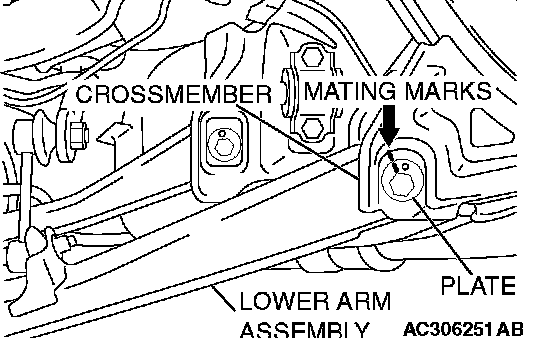

Place mating marks on the crossmember and the plate before removing the lower arm bolt.

INSPECTION
^ Check the bushings for wear and deterioration.
^ Check the lower arm for bending or breakage.
^ Check all bolts for condition and straightness.
