Overhaul
STEERING COLUMN SHAFT ASSEMBLYDISASSEMBLY AND ASSEMBLY
WARNING: Do not move the tilt lever from the lock position until the installation is completed. If you move it accidentally, the steering column cannot be reinstalled correctly.

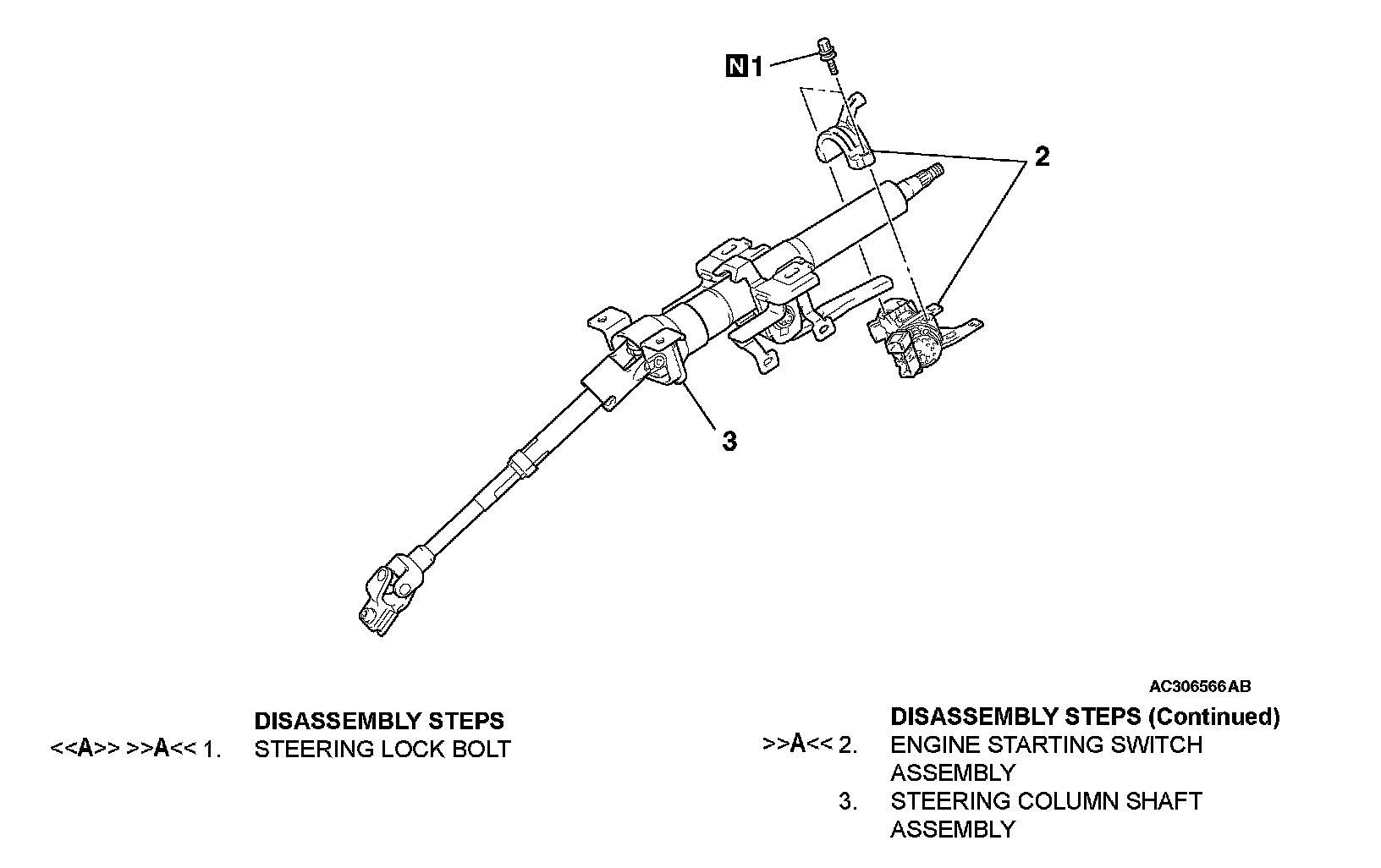

Disassembly Steps 1-3:
DISASSEMBLY SERVICE POINT
[[A]] STEERING LOCK BOLT REMOVAL
1. Drill in the steering lock bolt a hole deep enough for the tap to stand.
2. Remove the steering lock bolt with a left-hand tap.
ASSEMBLY SERVICE POINT

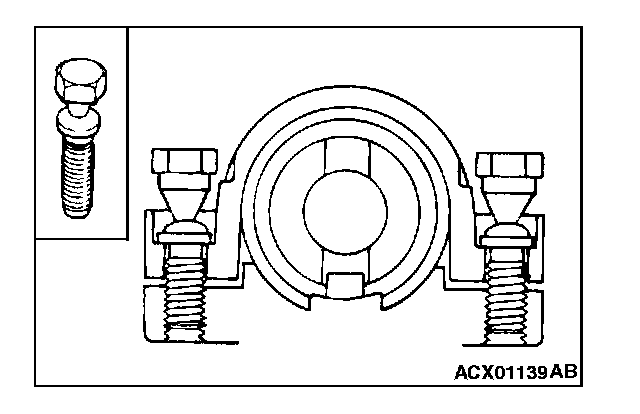

]]A[[ ENGINE STARTING SWITCH ASSEMBLY/STEERING LOCK BOLT INSTALLATION
CAUTION: The bolts must be replaced with new ones when the steering lock is installed.
1. When installing the engine starting switch assembly to the steering column shaft assembly, temporarily install the engine starting switch assembly in alignment with the column boss.
2. After checking that the lock works properly, tighten the steering lock bolts until the head is twisted off.
