Home >> Mitsubishi >> 2008 >> Galant L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Locations

Powertrain Management: Locations

Overall View:



View A-D:

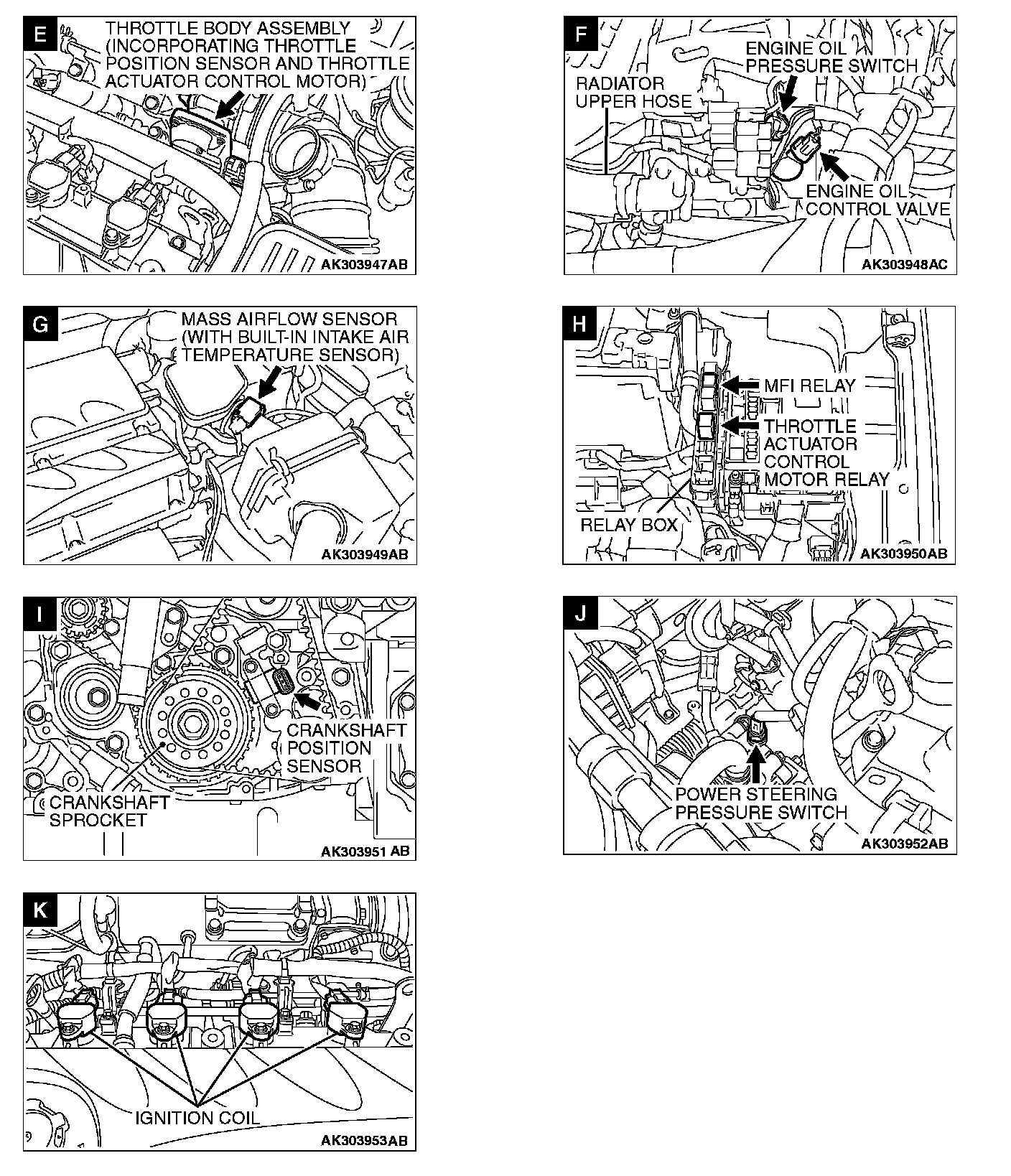

View E-K:

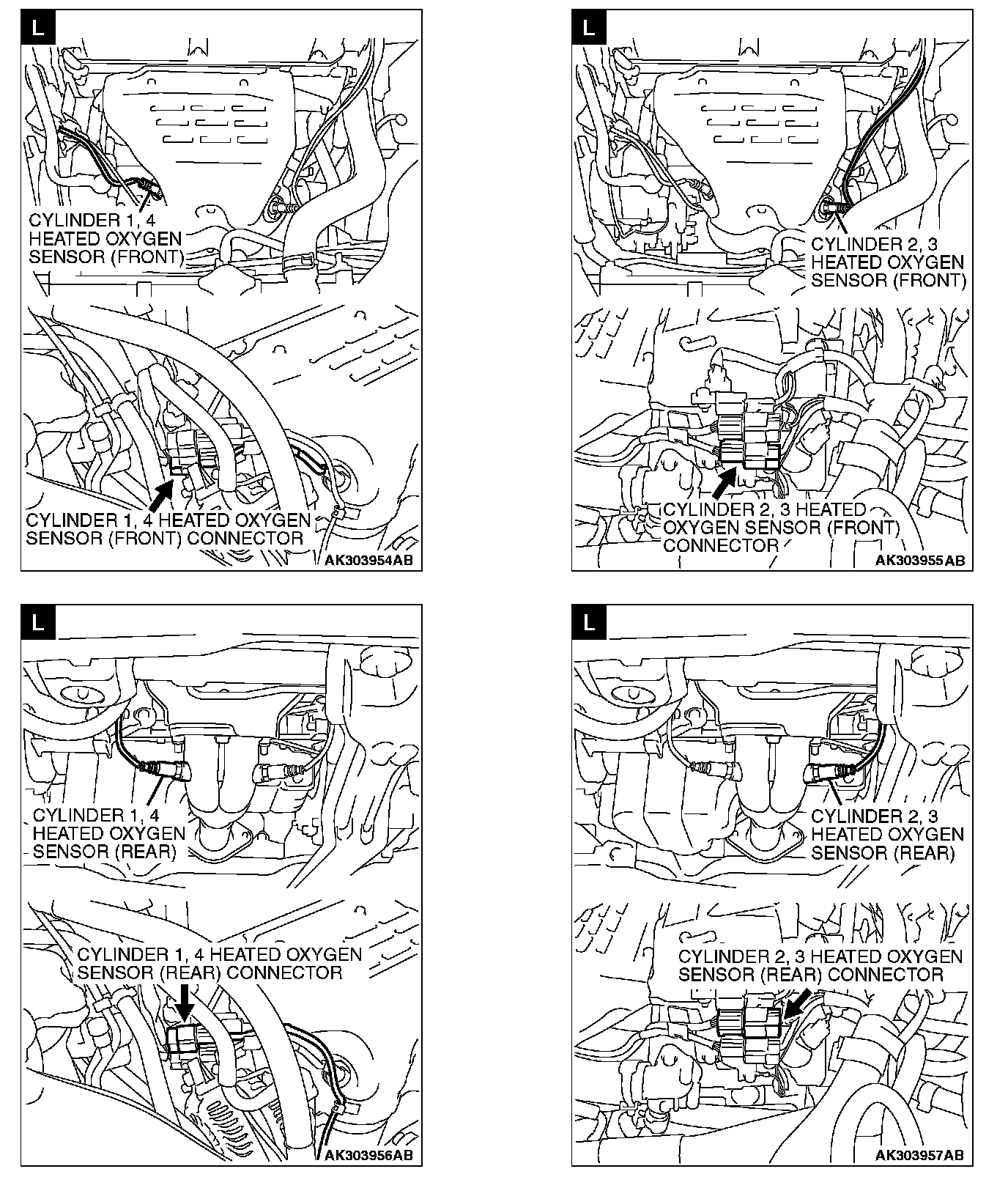

View L-L:



View M-R:



View S-W:
