Rear Axle

REAR AXLE HUB ASSEMBLY

REMOVAL AND INSTALLATION

CAUTION:
^ For vehicles with ABS, be careful not to strike the pole piece at the tip of the rear wheel speed sensor with tools during servicing work.
^ The rear hub assembly should not be dismantled.

Removal Steps 1-6:

REMOVAL SERVICE POINTS

[[A]] CALIPER ASSEMBLY REMOVAL
1. Remove the caliper assembly with brake hose.
2. Retain the removed caliper assembly with a wire and the like to prevent from falling.

[[B]] BRAKE DISC REMOVAL

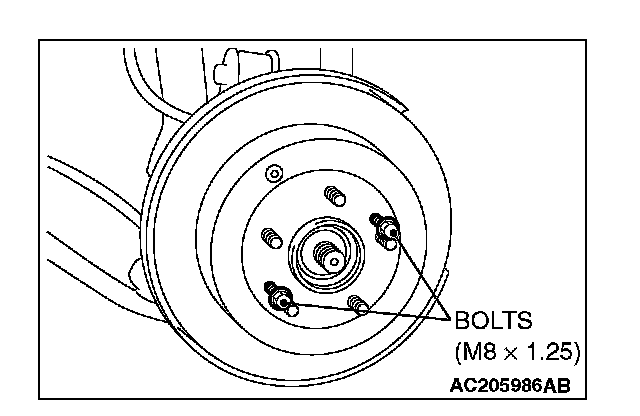

If the brake disc is seized, install M8 � 1.25 bolts as shown, and remove the disc by tightening the bolts evenly and gradually.

[[C]] REAR HUB ASSEMBLY REMOVAL

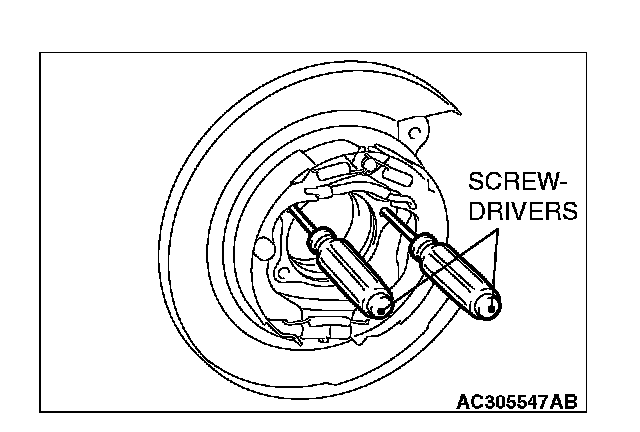

Insert flat-tipped screwdrivers into the mounting holes of knuckle hub to prevent the rear brake shoe and backing plate from falling down after the rear hub assembly has been removed from the knuckle.
