Mitsubishi
>>
2008
>>
Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>

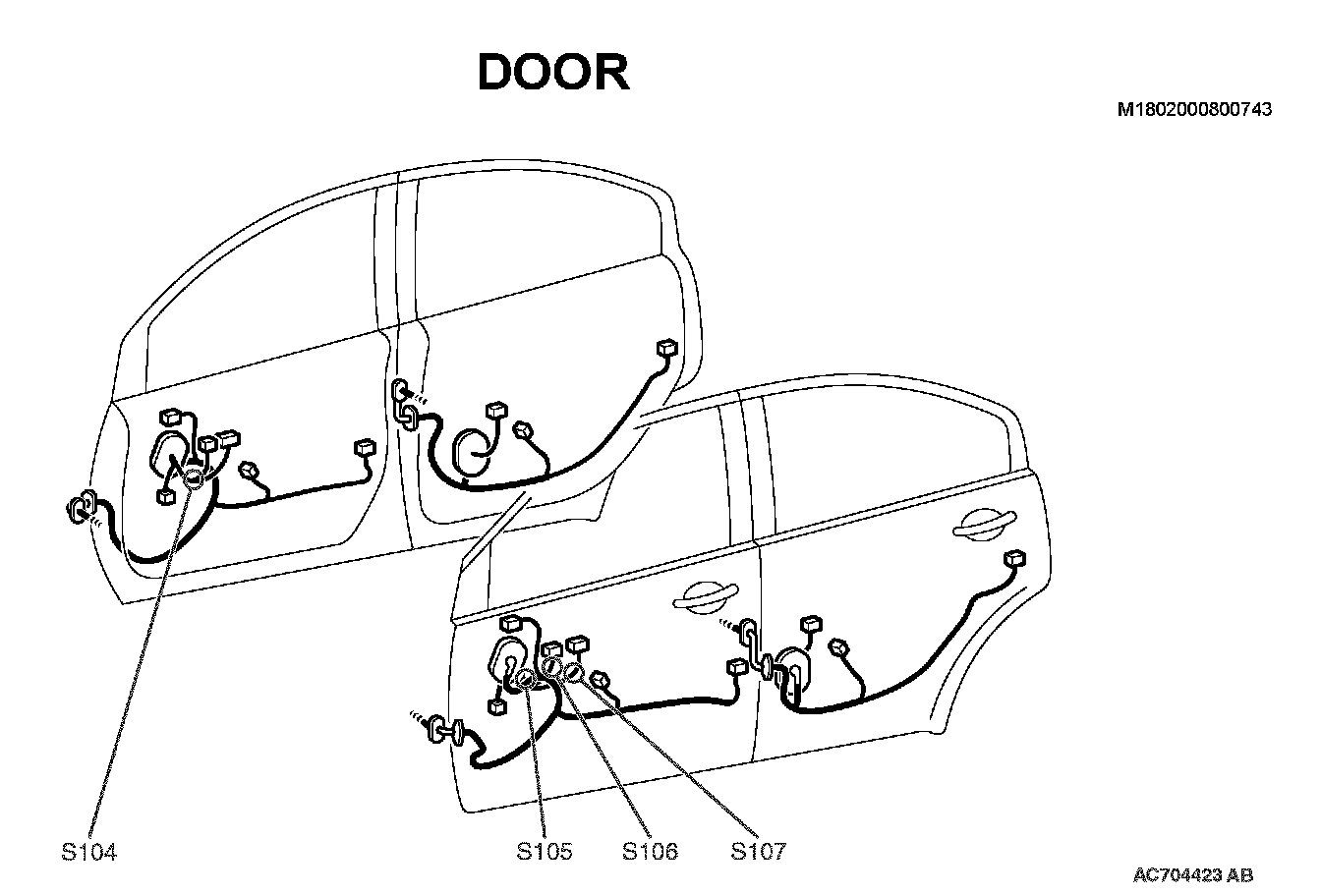

S104-S107 (Door)
S104-S107 (Door)
S104 To S107:
