Galant L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>

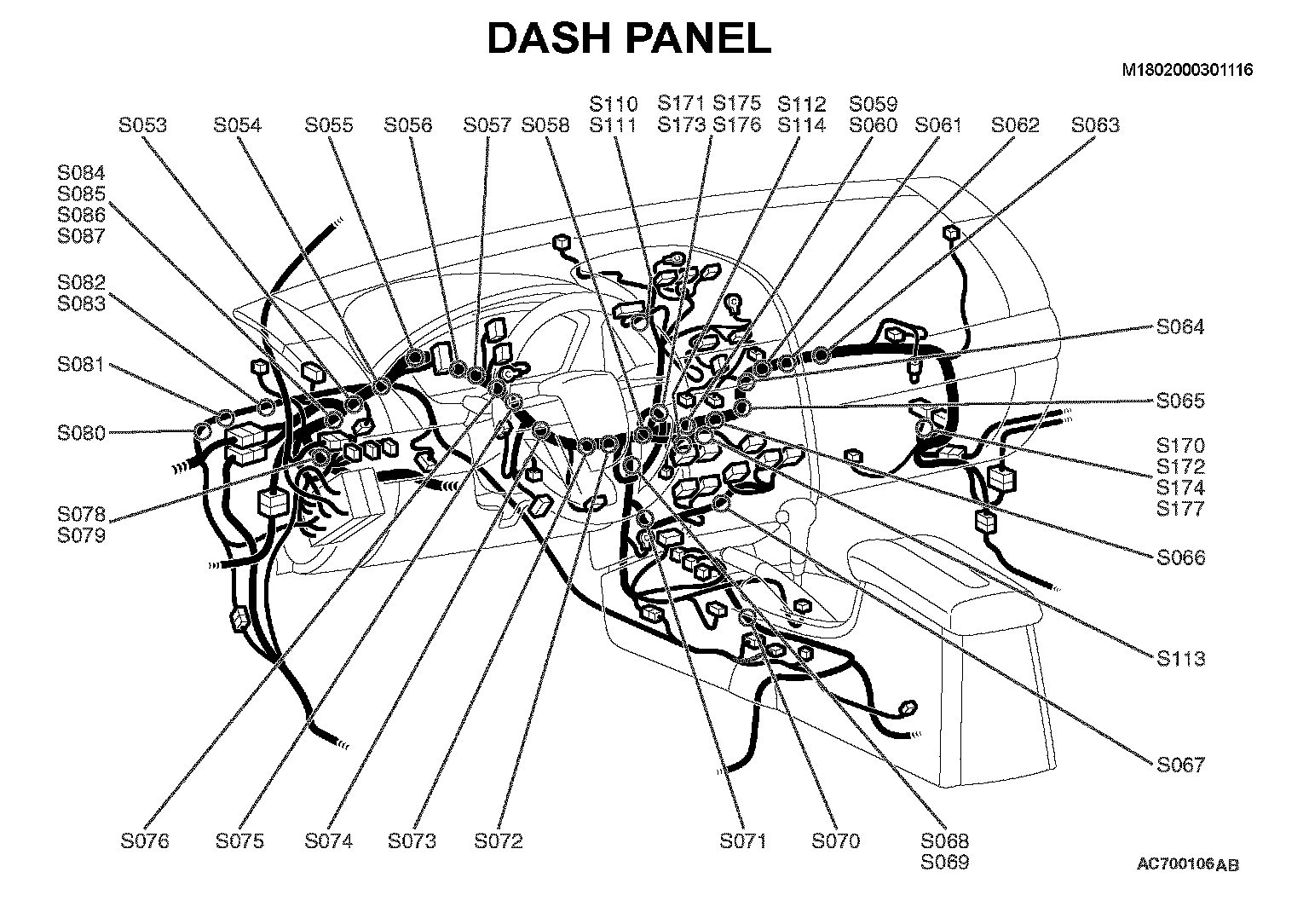

S053-S171 (Dash Panel)
S053-S171 (Dash Panel)
S053 To S177:
