Removal and Replacement

HEATER UNIT, HEATER CORE, BLOWER ASSEMBLY AND EVAPORATOR UNIT

REMOVAL AND INSTALLATION

WARNING:
- Before removing the front seat assembly, refer to SRS, Service Precautions and Air Bag Module and Clock Spring.
- When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to SRS, On-Vehicle Service.)

Pre-removal And Post-installation Operation:

Removal Steps 1-7:

REMOVAL SERVICE POINTS

[[A]] SUCTION PIPE AND LIQUID PIPE DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and the nipples of the expansion valves.

[[B]] HEATER UNIT AND DECK CROSSMEMBER ASSEMBLY REMOVAL

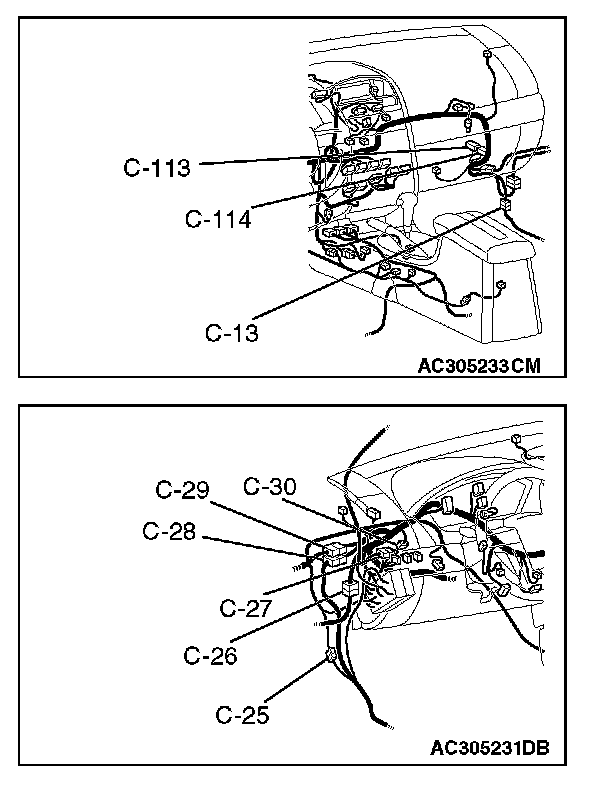

Disconnect the following connectors to gain access to the front deck crossmember.






REMOVAL AND INSTALLATION

Removal Steps 1-6:
