Water Pump: Service and Repair
WATER PUMPREMOVAL AND INSTALLATION [2.4L ENGINE]
WATER PUMP 2.4L ENGINE:
INSTALLATION SERVICE POINT
]]A[[ O-RING INSTALLATION
CAUTION: Do not let the O-ring get contaminated with grease or engine oil.
Fit an O-ring into the O-ring groove located at the end of the water inlet pipe and apply water or coolant to the O-ring or the inside of the mounting surface of the water pump for insertion.

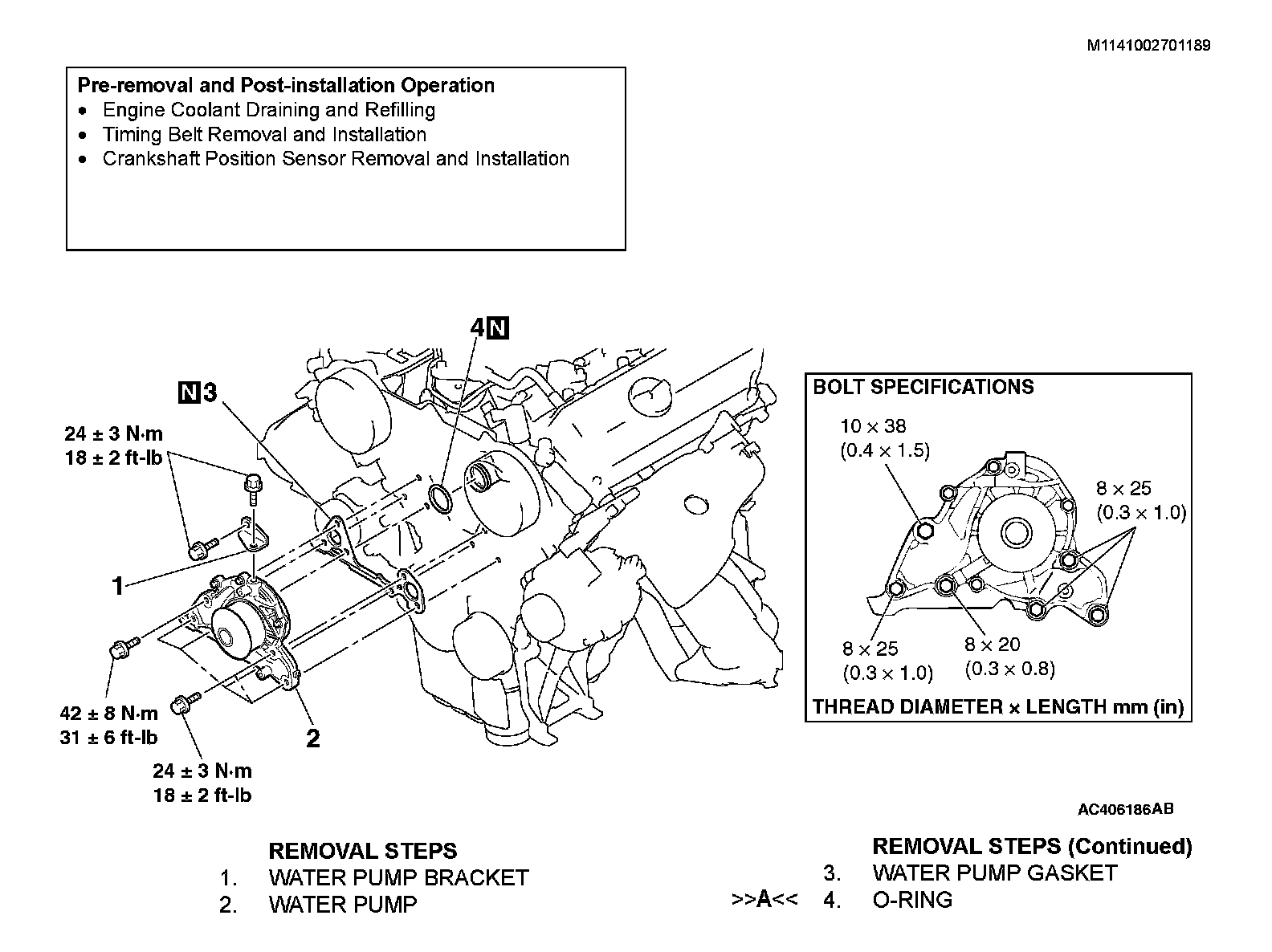

REMOVAL AND INSTALLATION <3.8L ENGINE (EXCEPT MIVEC)>
WATER PUMP 3.8L ENGINE (EXCEPT MIVEC):
INSTALLATION SERVICE POINT

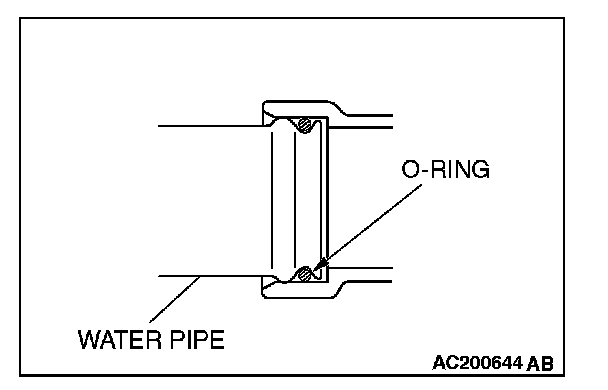

]]A[[ O-RING INSTALLATION
CAUTION: Do not let the O-ring get contaminated with grease or engine oil.
Fit the O-ring into the groove of the water pipe ends, and apply water or coolant to the circumference of the O-ring and the pipe bores to insert the pipe assembly.
REMOVAL AND INSTALLATION <3.8L ENGINE-MIVEC>
WATER PUMP 3.8L ENGINE - MIVEC:
INSTALLATION SERVICE POINT
]]A[[ O-RING INSTALLATION
CAUTION: Do not let the O-ring get contaminated with grease or engine oil.
Fit the O-ring into the groove of the water pipe ends, and apply water or coolant to the circumference of the O-ring and the pipe bores to insert the pipe assembly.
