Removal and Installation

This procedure updated per manufacturer's TSB #05-35-003


MASTER CYLINDER ASSEMBLY AND BRAKE BOOSTER
REMOVAL AND INSTALLATION

CAUTION:
DO NOT TOUCH THE PUSH ROD IN THE BRAKE BOOSTER. IT IS ALREADY ADJUSTED.


Part 1:












INSTALLATION SERVICE POINTS

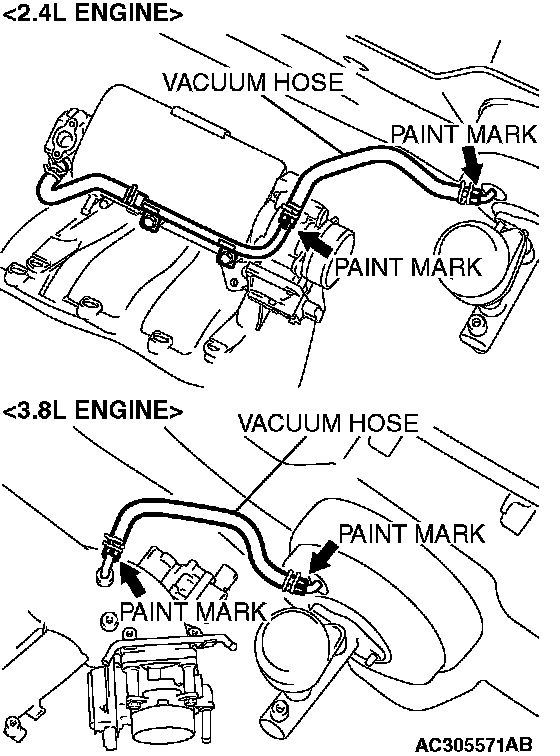

>>A<< BRAKE BOOSTER VACUUM HOSE CONNECTION
Insert vacuum hose with its paint mark facing upward.
