Disassembly and Assembly

MASTER CYLINDER
DISASSEMBLY AND ASSEMBLY

DISASSEMBLY SERVICE POINT

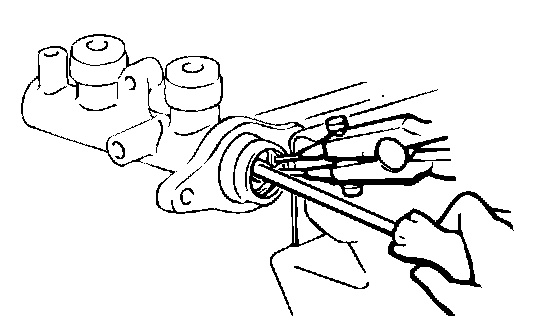

<> BRAKE MASTER CYLINDER UNION RETAINER DISASSEMBLY





Remove the brake master cylinder union retainer while depressing the piston.

INSPECTION
^ Check the inner surface of master cylinder body for rust or pitting.
^ Check the primary and secondary pistons for rust, scoring, wear or damage.
