TCL Indicator Light Check

TCL INDICATOR LIGHT CHECK

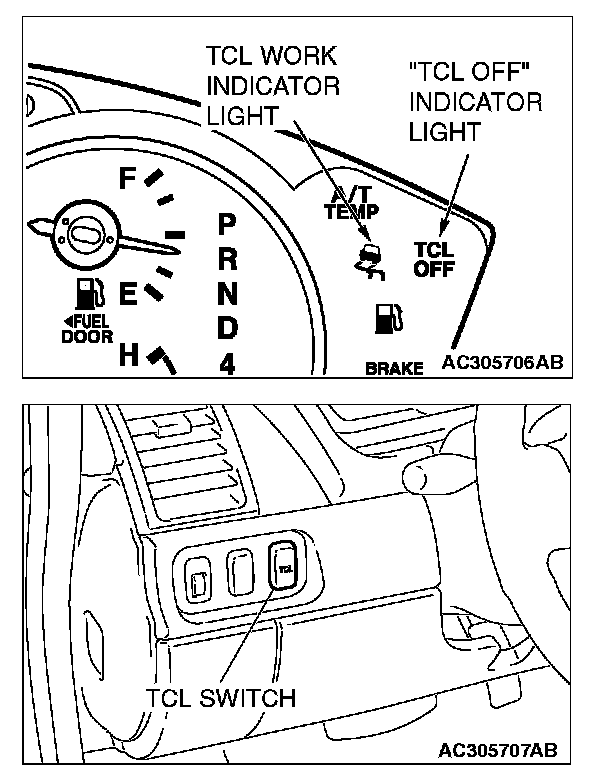

1. Check that the "TCL OFF" indicator light and the TCL work indicator light illuminate for three seconds when the ignition switch is turned to the "ON" position.
2. Check that the "TCL OFF" indicator light illuminates and goes off in cycles each time the TCL switch is pushed after starting the engine.
3. Check that the "TCL OFF" indicator light and the TCL work indicator light do not illuminate, when driving at 30km/h (37.5 mph) for more than 2 seconds.
4. If defective, repair it. (Refer to TCL diagnosis - Symptom Procedures - Inspection Procedure 1, 2, 3 and 4). Traction Control System (TCL)
