Seatback Heater Check

SEATBACK HEATER CHECK

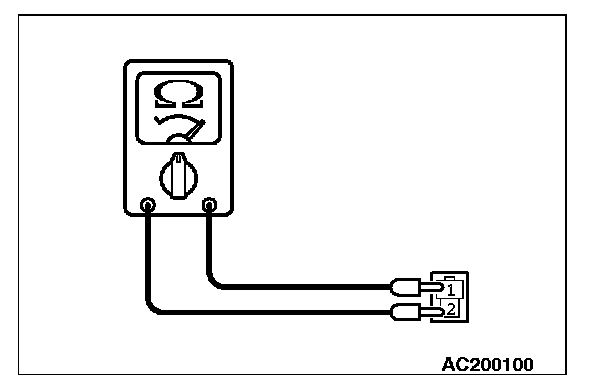

Measure the resistance between terminals.

Standard value: At room temperature 20 °C (68 °F)
Approximately 3.6 ohms ± 9%
