Interior Moulding / Trim: Service and Repair

*This document updated per manufacturer TSB #08-52A-001


TRIMS

REMOVAL AND INSTALLATION

Removal Steps 1-22:

CLIP AND CLAW POSITION

Clip And Claw Position:

REMOVAL SERVICE POINT

[[A]] FRONT PILLAR TRIM REMOVAL

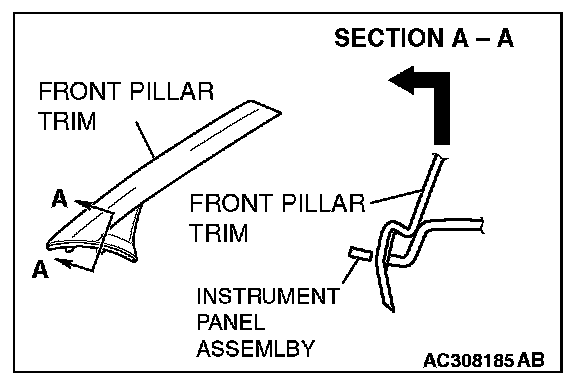

Release the clip and remove the front pillar trim by pulling it to the direction shown.






1. Pull down the front pillar trim as shown in the figure.

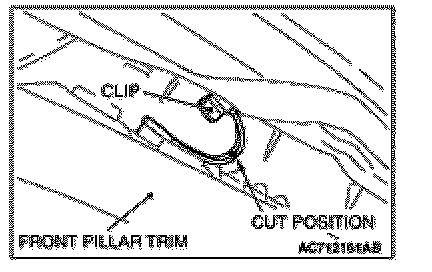

2. Cut the clip at the cutting position shown in the figure, taking care not to damage the other components.
3. Remove the clip remaining on the front pillar trim, taking care not to scratch the trim.
4. Remove the clip remaining on the vehicle side by breaking it to prevent damage to the flange of the clip mounting hole.


[[B]] REAR PILLAR TRIM REMOVAL





1. Pull down the front pillar trim as shown in the figure.
2. Cut the clip at the cutting position shown in the figure, taking care not to damage the other components.
3. Remove the clip remaining on the front pillar trim, taking care not to scratch the trim.
4. Remove the clip remaining on the vehicle side by breaking it to prevent damage to the flange of the clip mounting hole.
