Headliner: Service and Repair

HEADLINING

REMOVAL AND INSTALLATION

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to SRS, On-Vehicle Service).

Pre-removal & Post-Installation Operation:

Removal Steps 1-14 (Part 1):

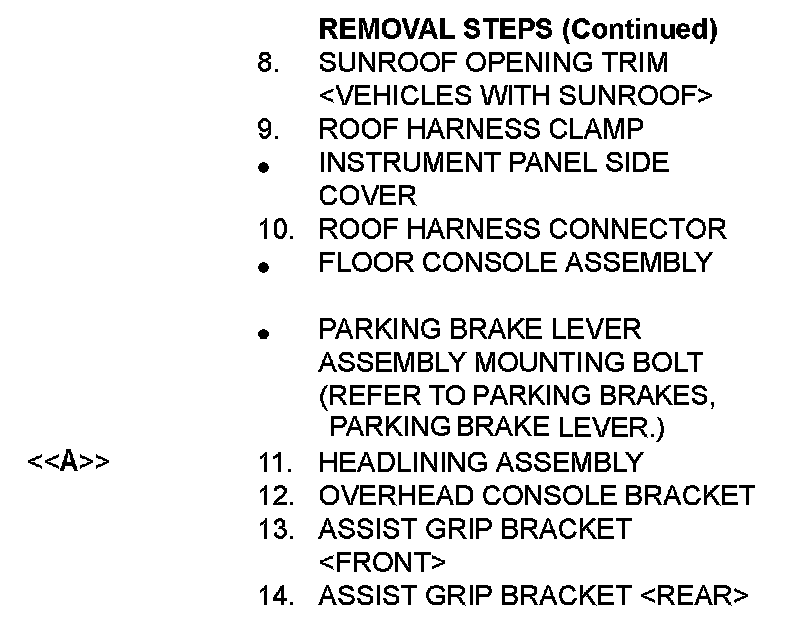

Removal Steps 1-14 (Part 2):

REMOVAL SERVICE POINT

[[A]] HEADLINING ASSEMBLY REMOVAL

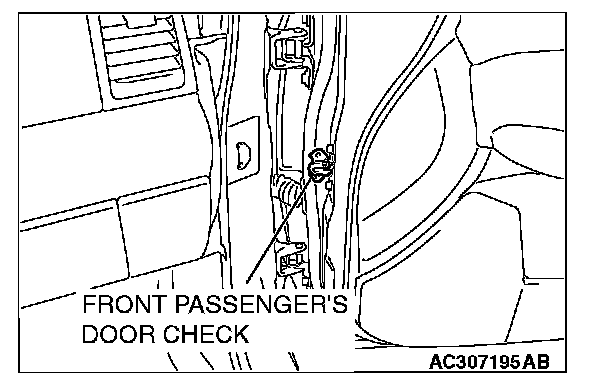

Remove the front passenger's door check (body side mounting bolt), open the front passenger's door and remove the headlining assembly. (Refer to Body, Door Assembly).
