Interior - Gap Between Glove Box And Dash
No: TSB-10-52A-001DATE: March, 2010
MODEL: 2004-10 Galant
SUBJECT:
GLOVE BOX FIT ADJUSTMENT
This TSB supercedes TSB-09-52A-002, issued November, 2009, to revise repair procedures and add parts. Revised information is shown with a <.
PURPOSE
This bulletin contains repair information for eliminating a gap between the dashboard and glovebox that may exist on some affected vehicles. For new vehicles, correcting this condition BEFORE delivery to the customer will help to raise overall IQS scores.

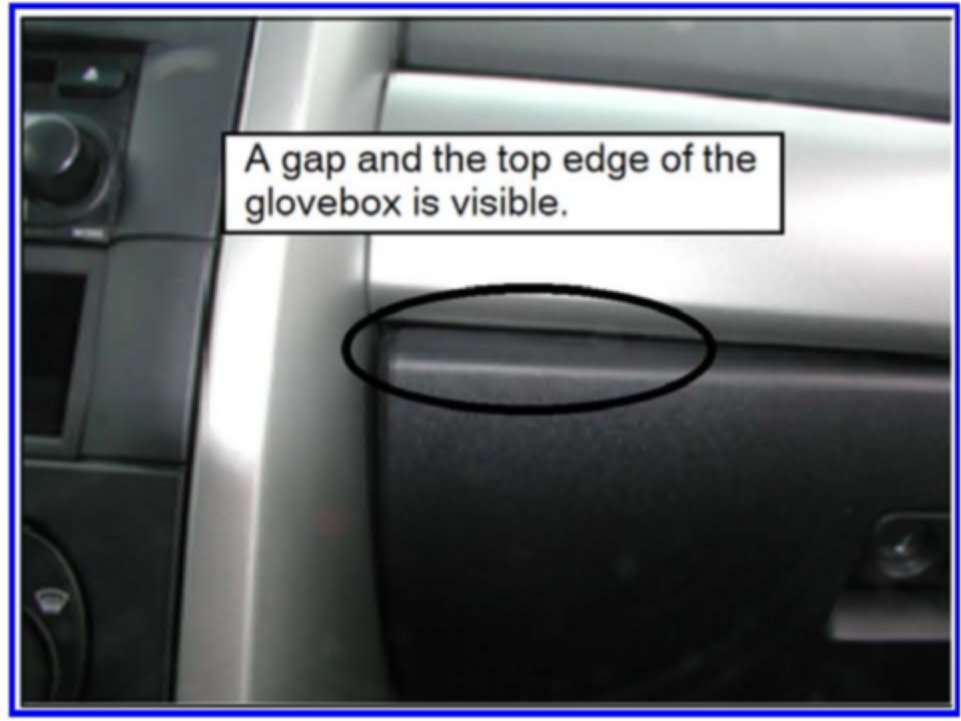

Some affected vehicles may have a gap at the upper left corner of the glove box and the dash.
To eliminate the gap, follow the procedures in this bulletin.
AFFECTED VEHICLES
2004-10 Galant
PROCEDURE

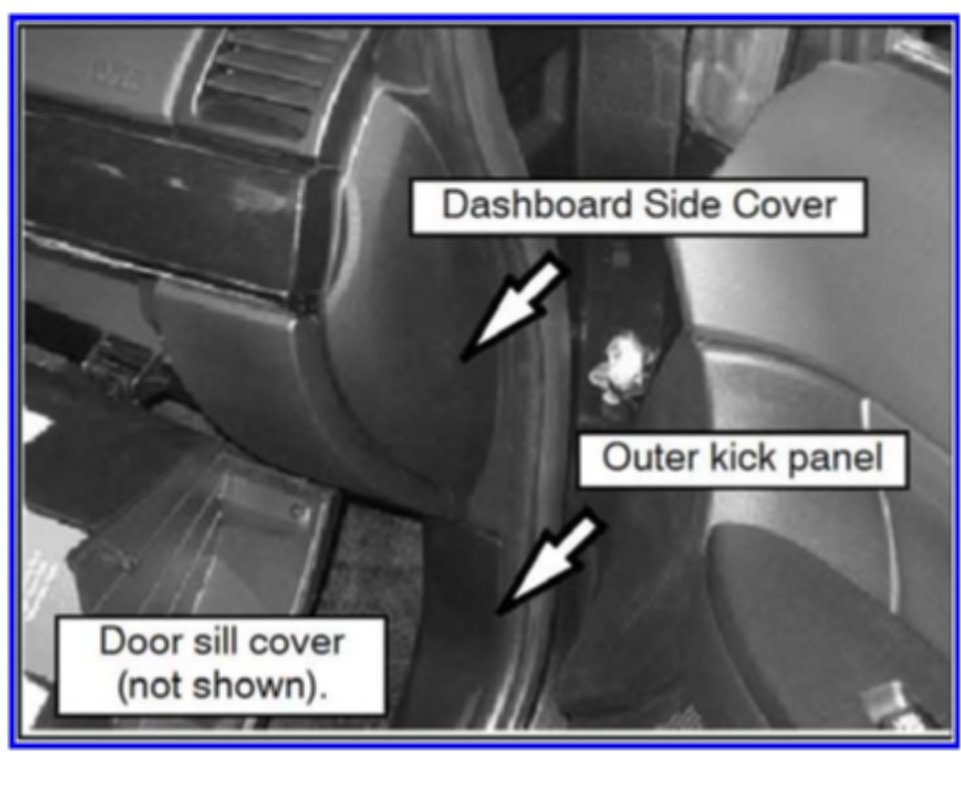

1. Remove the right hand side door sill cover, the right hand side outer kick panel and the right hand dashboard side cover.
2. Remove the glovebox assembly per the service manual.
NOTE:
Care should be taken with the customer's personal belongings. Place them in a container (box or bag) and put them where they will be safe. Return them to the glovebox when repairs are complete.
Take note of any factory or customer installed accessories (e.g. iPod harness). Remove or detach and reinstall as necessary.
3. Remove the bolt indicated in the photo.

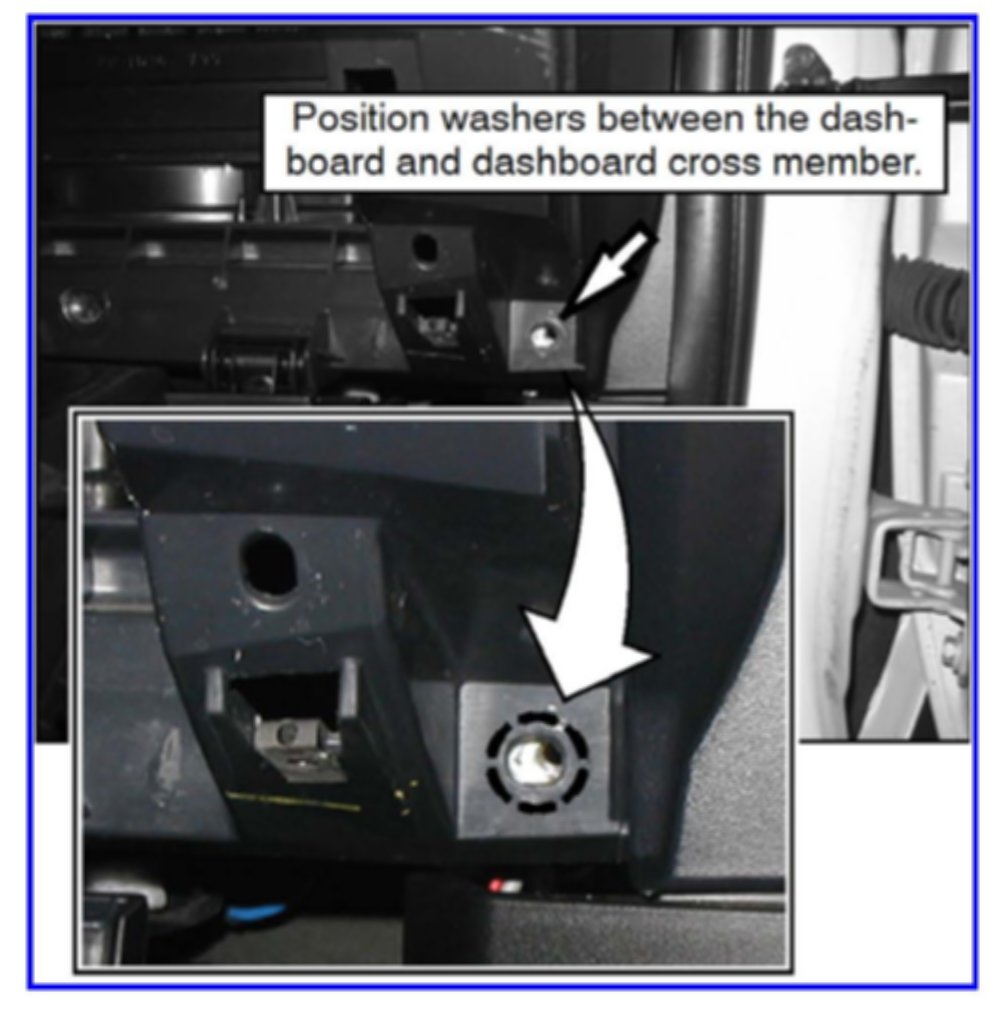

4. Stack 2 standard 6 mm I.D. washers together (approx 4 mm total thickness) and insert them between the dashboard and the dashboard crossmember. They should be centered behind the location for the bolt as shown.
5. Do not reuse the original bolt. <
Install a replacement bolt (P/N - MS240156 or
equivalent), insuring it goes through the washers.
6. Reinstall the glovebox assembly, the dashboard side cover, the passenger's outer kick panel and the door sill cover.
7. Check the fit of the glovebox lid to the dash. Make sure the fit is even, with no gap along its entire length.
PARTS INFORMATION <
WARRANTY INFORMATION
