Engine Roll Stopper and Center Member
ENGINE ROLL STOPPER AND CENTERMEMBERREMOVAL AND INSTALLATION
[2.4L ENGINE]
CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.

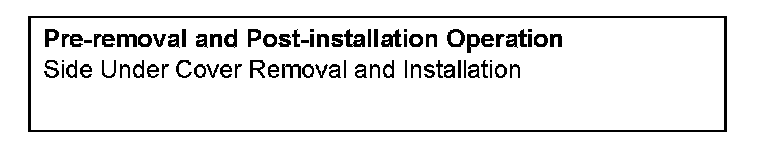

Pre-removal & Post-installation Operation:

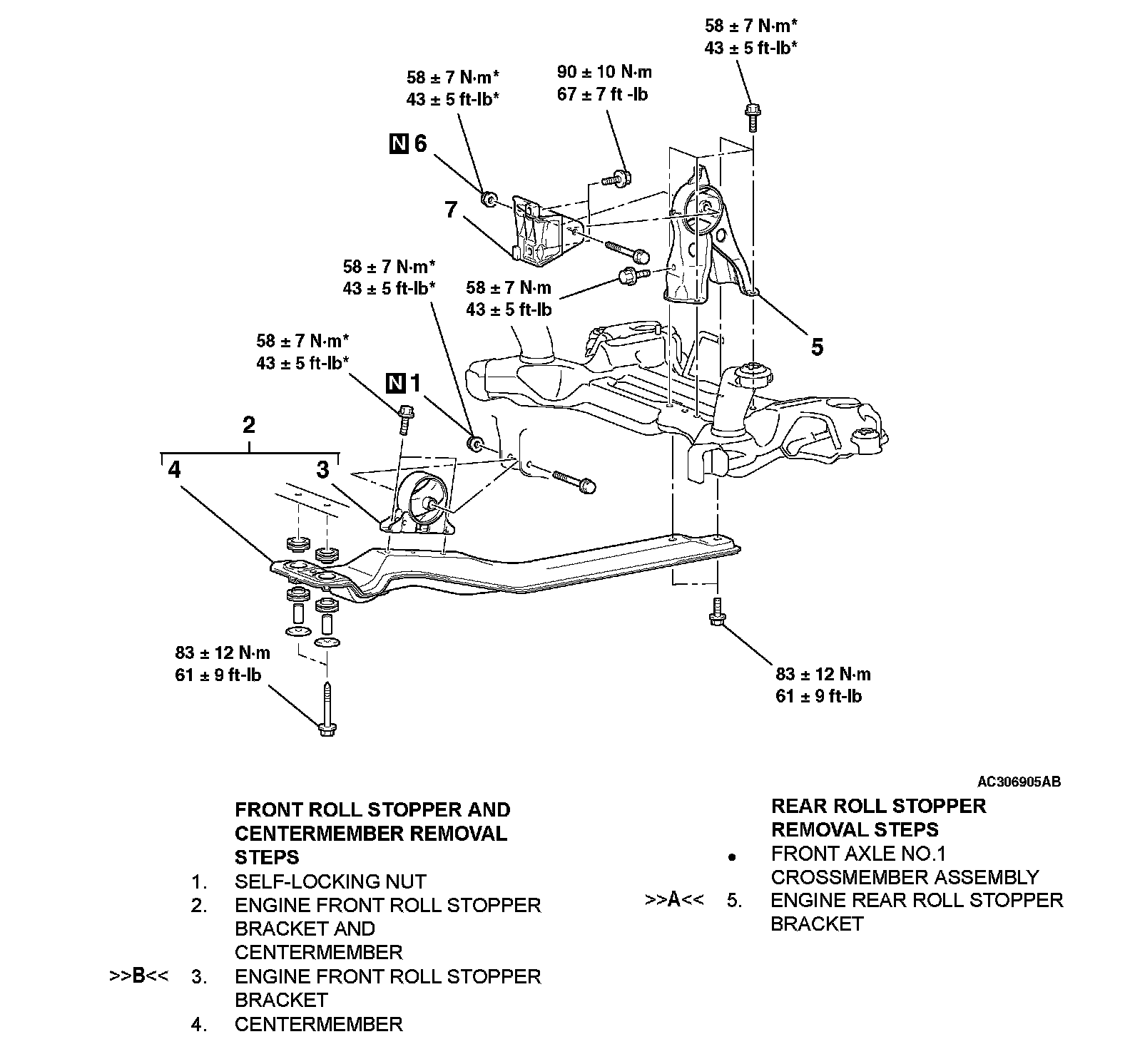

Front Roller Stopper And Centermember Removal Steps Removal Steps 1-5:

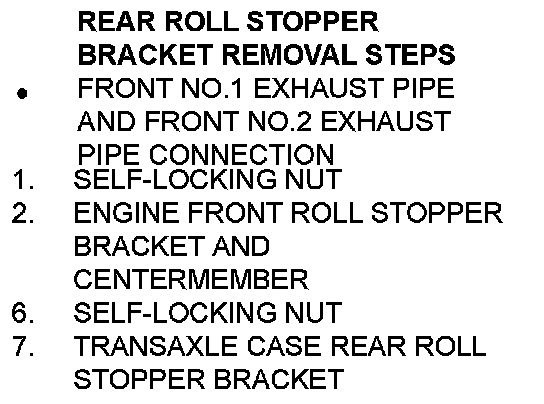

Rear Roller Stopper Bracket Removal Steps 1-7:
[3.8L ENGINE]
CAUTION: *: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.
Pre-removal & Post-installation Operation:
Front Roller Stopper And Centermember Removal Steps 1-5 / Rear Roll Stopper Bracket Removal Steps 1-7:
INSTALLATION SERVICE POINTS
]]A[[ ENGINE REAR ROLL STOPPER BRACKET INSTALLATION
Tighten the bolts in the following sequence:
1. Tighten bolts E finger tight.
2. Tighten bolt C and then tighten bolts D.
3. Tighten bolts E.
]]B[[ ENGINE FRONT ROLL STOPPER BRACKET INSTALLATION

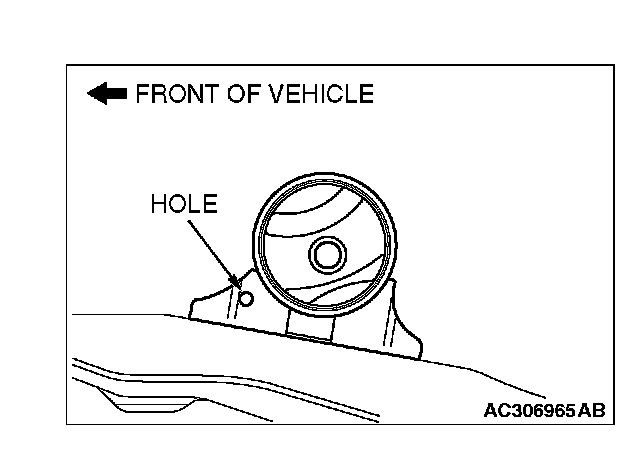

Install the engine front roll stopper bracket so that its hole points towards the front side of the vehicle.
