Trunk / Liftgate Latch: Testing and Inspection
INSPECTIONTRUNK LID LATCH ASSEMBLY CHECK

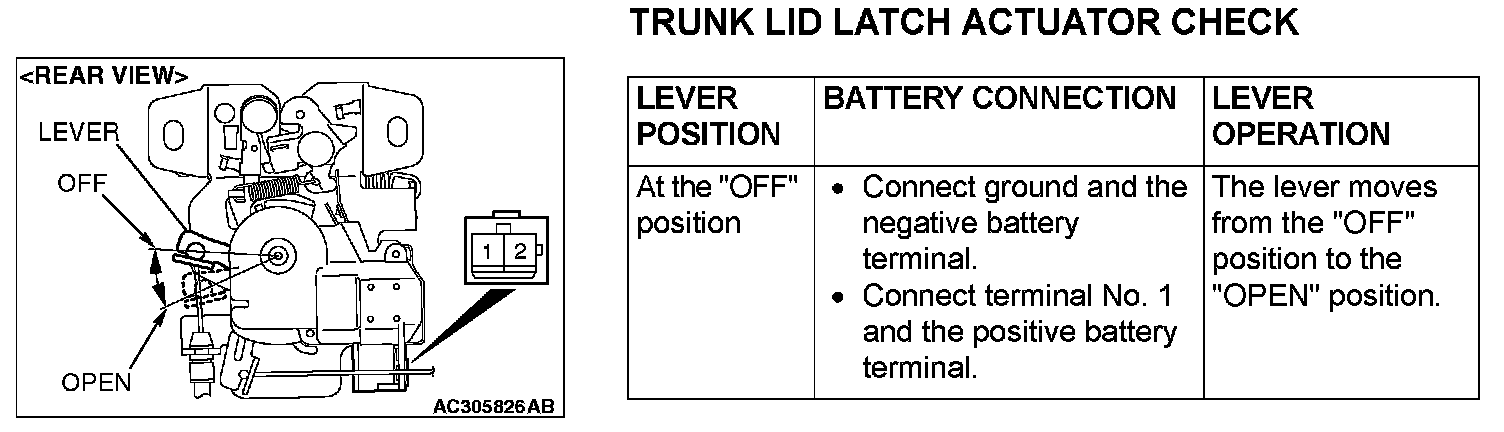

TRUNK LID LATCH ACTUATOR CHECK
Trunk Lid Latch Actuator Check:

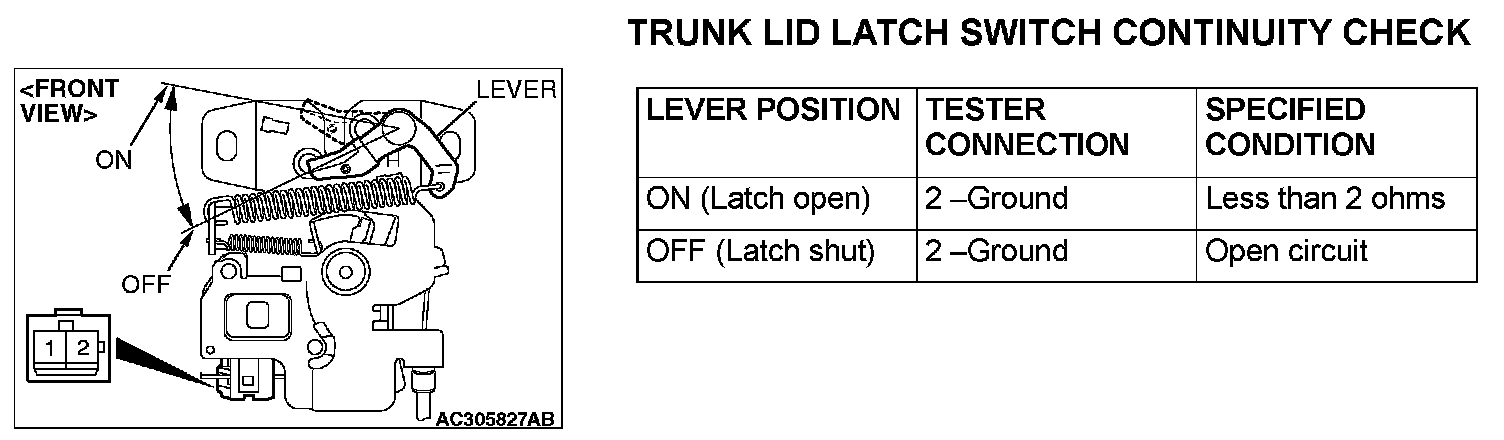

TRUNK LID LATCH SWITCH CONTINUITY CHECK
Trunk Lid Latch Switch Continuity Check:
TRUNK LID LATCH ASSEMBLY CHECK
TRUNK LID LATCH ACTUATOR CHECK
TRUNK LID LATCH SWITCH CONTINUITY CHECK
