Front Door: Service and Repair

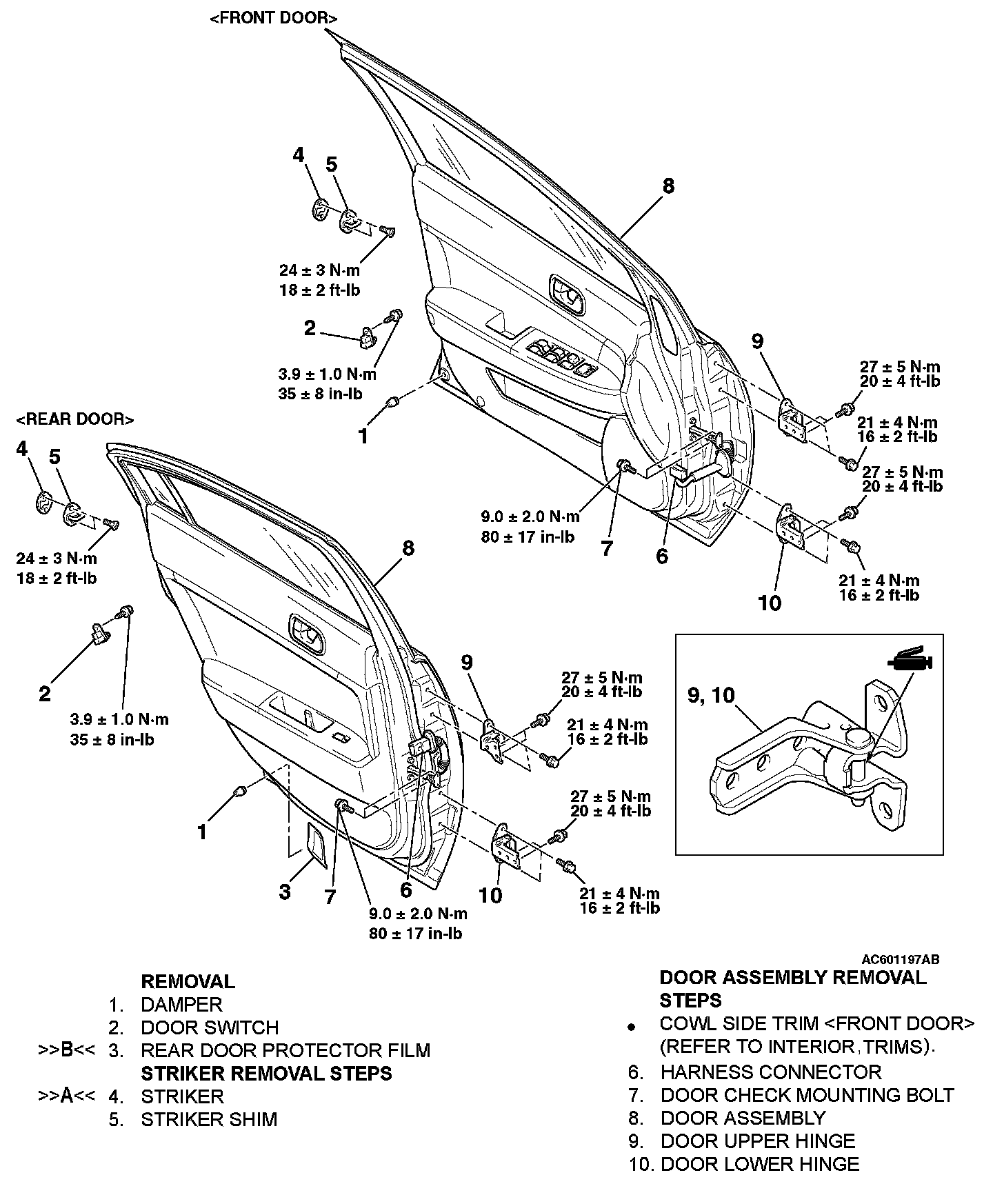

DOOR ASSEMBLY

REMOVAL AND INSTALLATION

Post-installation Operation:

Removal Steps 1-10:

INSTALLATION SERVICE POINTS

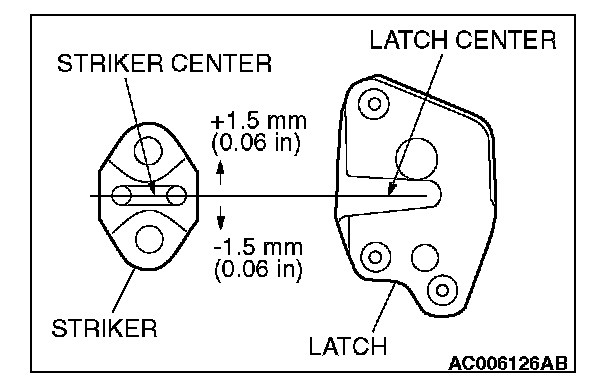

[[A]]STRIKER INSTALLATION






Align the center of the striker and latch within ± 1.5 mm (0.06 inch) and install.

[[B]] REAR DOOR PROTECTOR FILM INSTALLATION






Install the rear door protector film as shown.
