Amplifier: Service and Repair

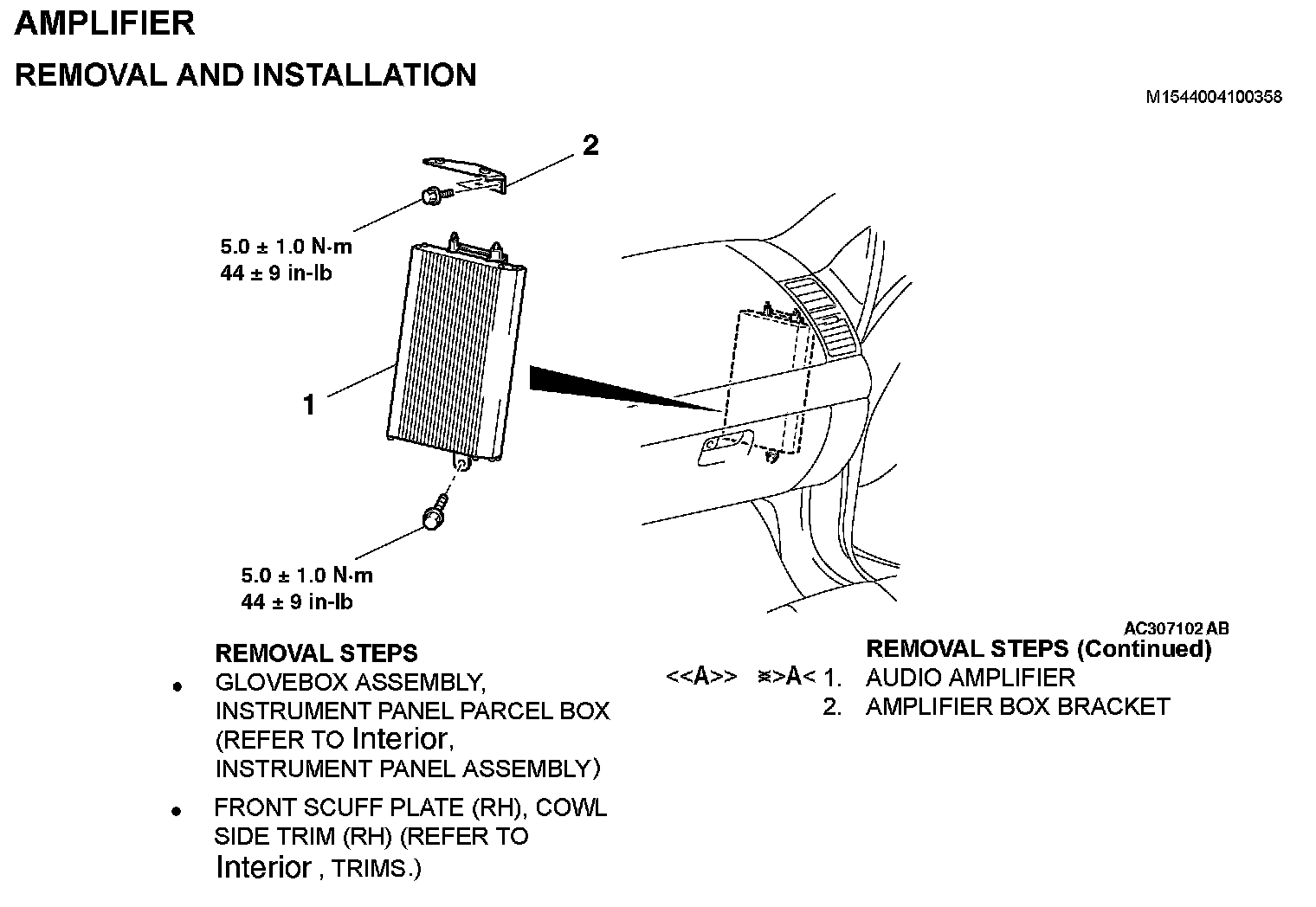

AMPLIFIERREMOVAL AND INSTALLATION
Removal Steps 1-2:
REMOVAL SERVICE POINT

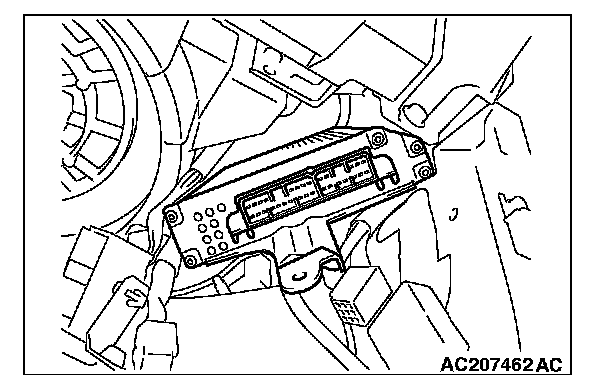

<> AUDIO AMPLIFIER REMOVAL
Move the audio amplifier wiring harness to one side, and then maneuver out the audio amplifier.
INSTALLATION SERVICE POINT

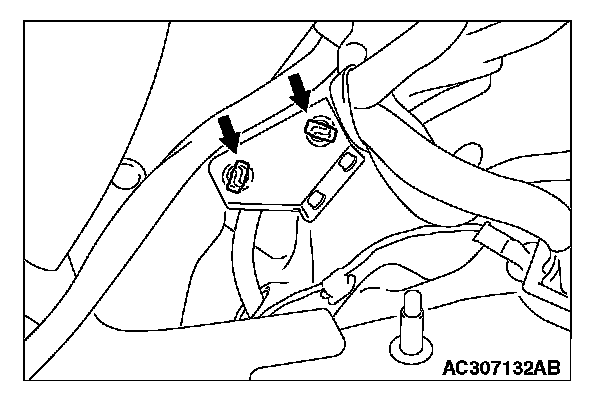

>>A<< AUDIO AMPLIFIER INSTALLATION
Install while aligning with the amplifier mounting hole.
