Removal and Replacement

STARTER MOTOR ASSEMBLY

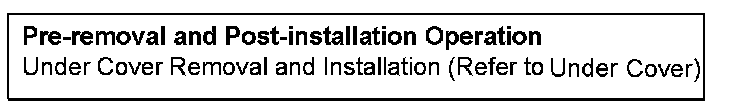

Pre-Removal & Post-Installation Operation:

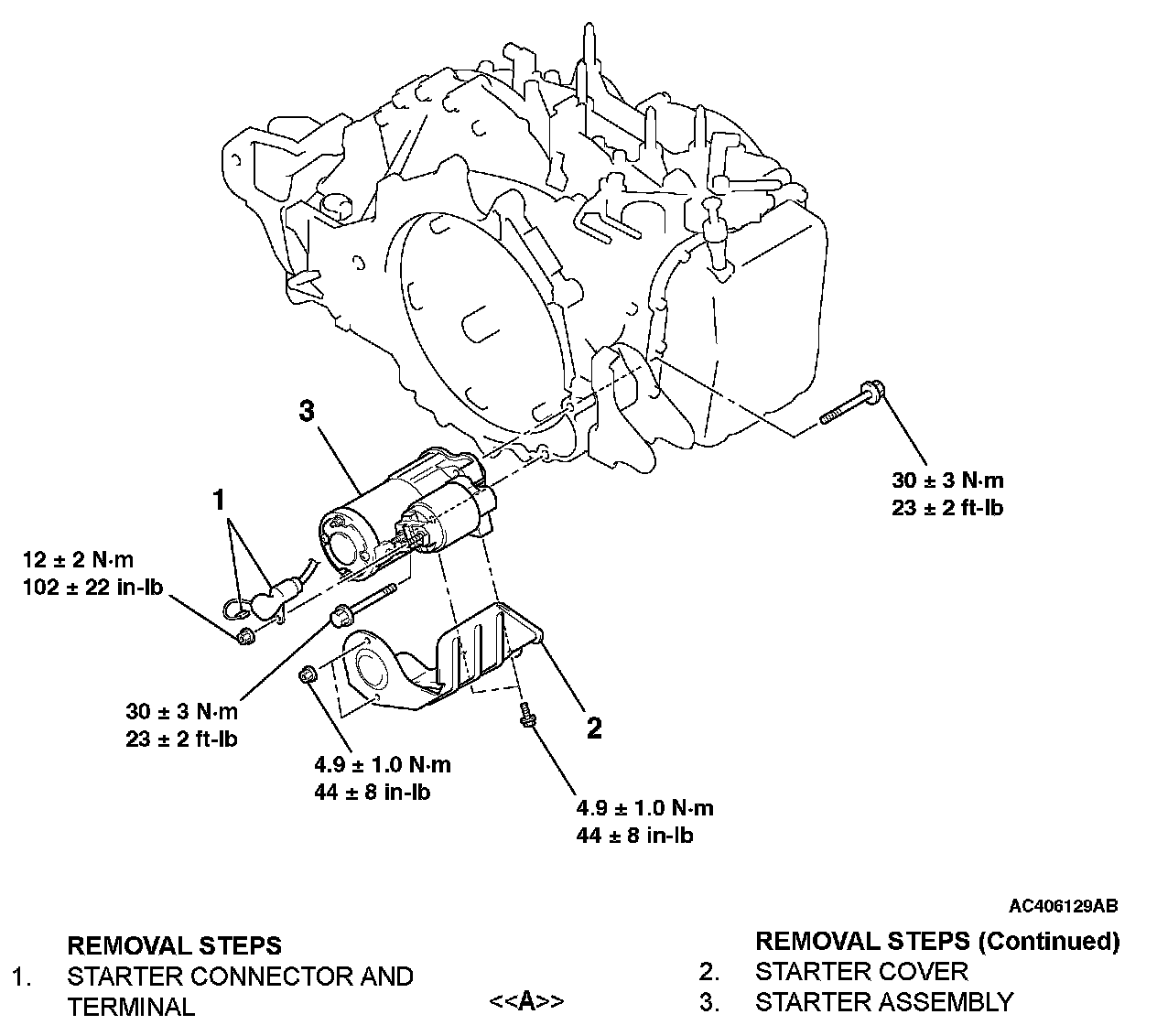

Removal Steps 1-3:

REMOVAL AND INSTALLATION <3.8L ENGINE>

REMOVAL SERVICE POINT

<> STARTER ASSEMBLY REMOVAL
Remove the starter assembly from under the vehicle.
