Oil Pan, Engine

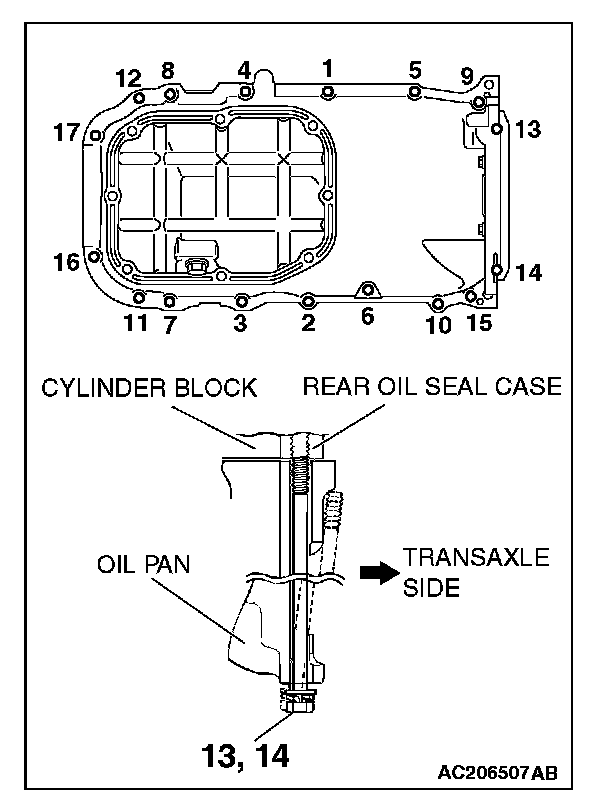

Upper Oil Pan
Tighten the bolts in the order shown in the illustration.
Tightening torque 8.5 ± 3.5 Nm (76 ± 31 in-lb)

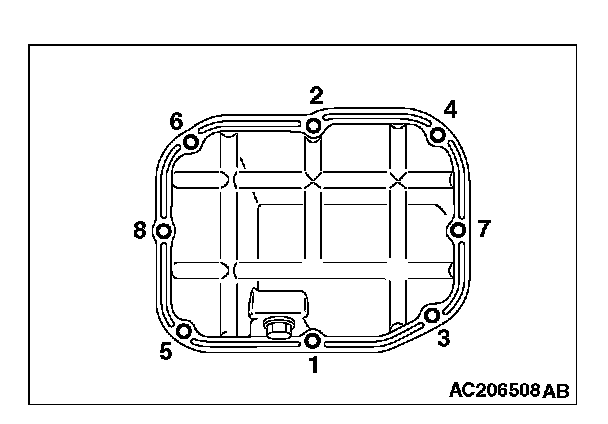

Lower Oil Pan
Tighten the bolts in the order shown in the illustration.
Tightening torque 11 ± 1 Nm (98 ± 8 in-lb)
Tighten the bolts in the order shown in the illustration.
Tightening torque 8.5 ± 3.5 Nm (76 ± 31 in-lb)
Lower Oil Pan
Tighten the bolts in the order shown in the illustration.
Tightening torque 11 ± 1 Nm (98 ± 8 in-lb)
