Engine - Dual Stage Air Intake Manual Revision

No: TSB-08-13-009

DATE: April, 2008

MODEL: 2008 Eclipse/Eclipse Spyder

SUBJECT:
ELIMINATION OF DUAL STAGE AIR INTAKE - SERVICE MANUAL REVISION

PURPOSE

Due to the mid-year elimination of engines with Dual Stage Air Intake, changes reflecting production range are necessary to the applicable pages of the service manual. This Technical Service Bulletin shows corrected and added information related to those changes.

AFFECTED VEHICLE(S)
2008 Eclipse/Eclipse Spyder 3.8L V-6 and Dual Stage Air Intake.

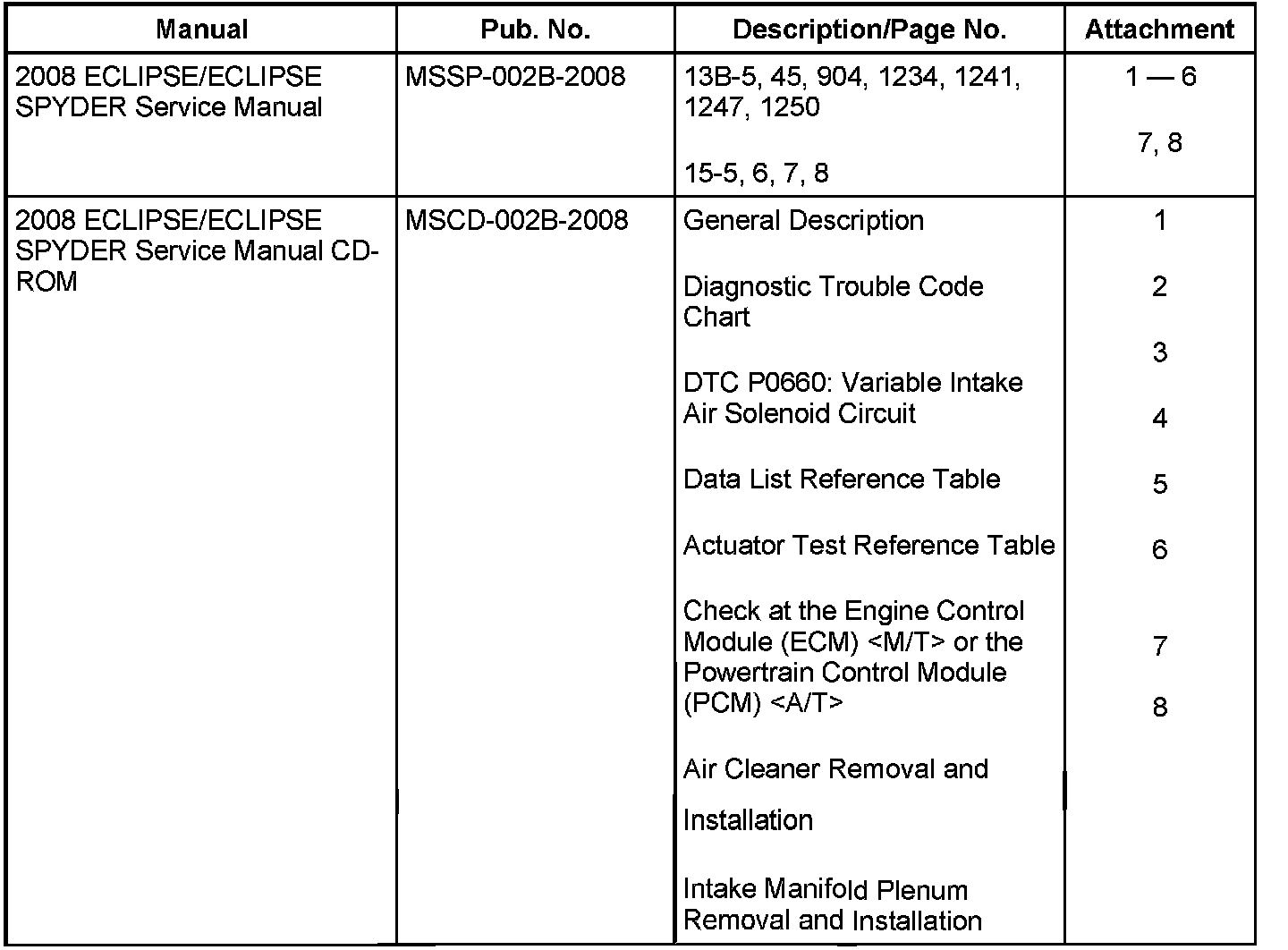

APPLICABLE MANUAL(S)

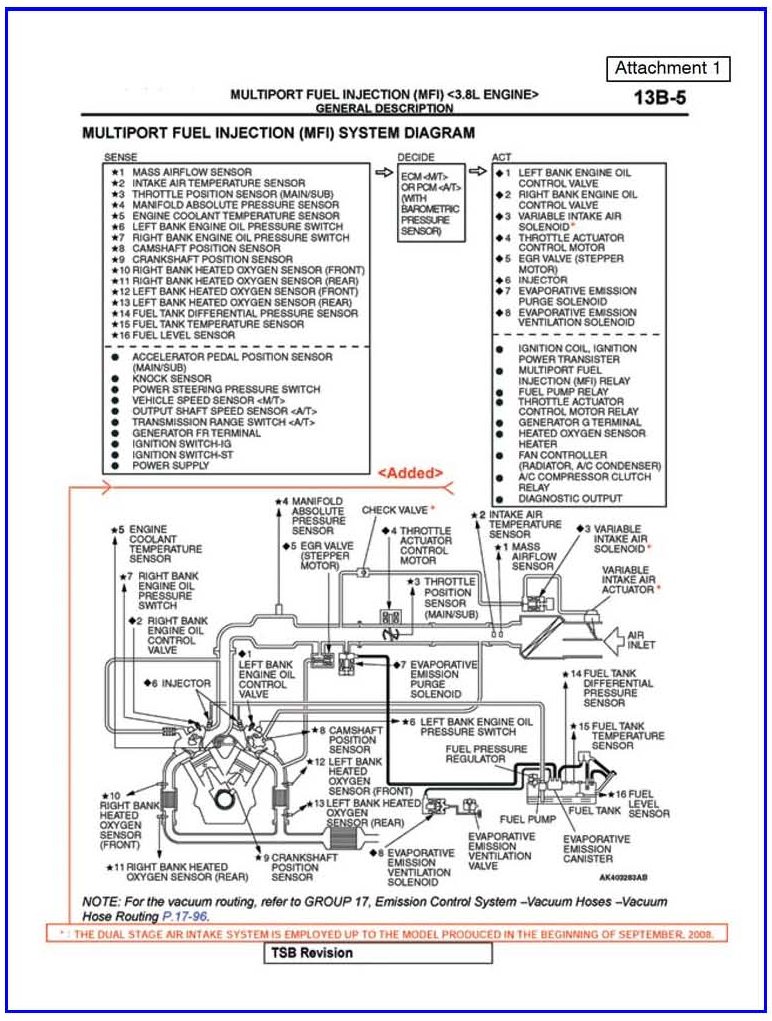

Updated Service Manual Page 13B-5

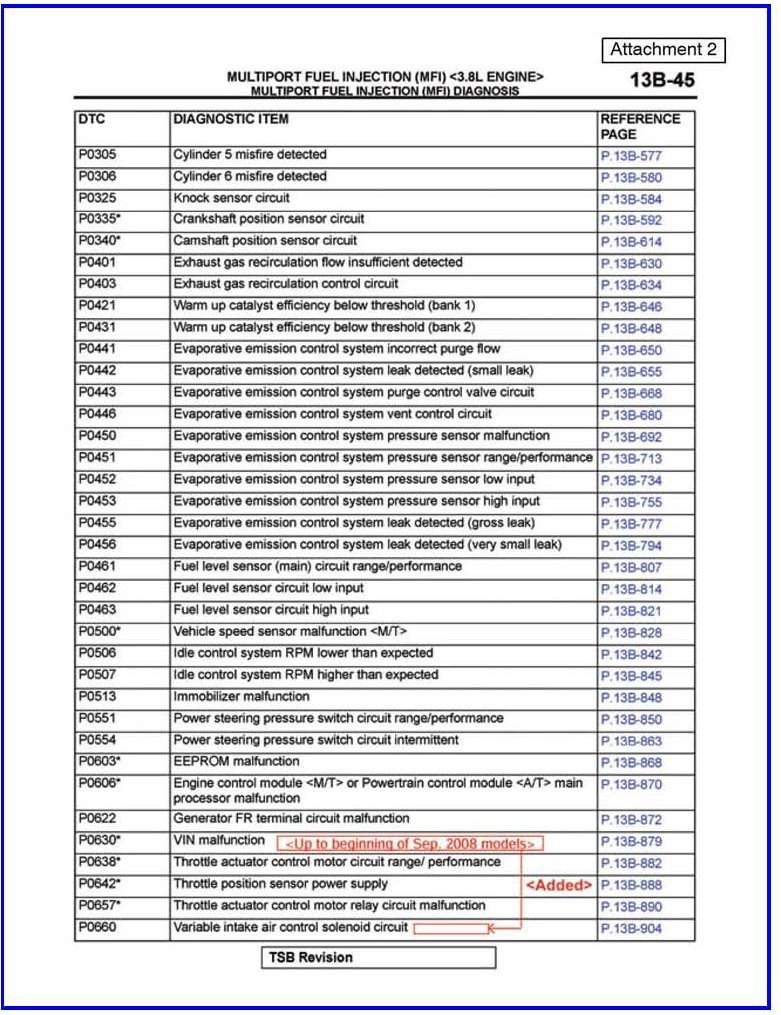

Updated Service Manual Page 13B-45

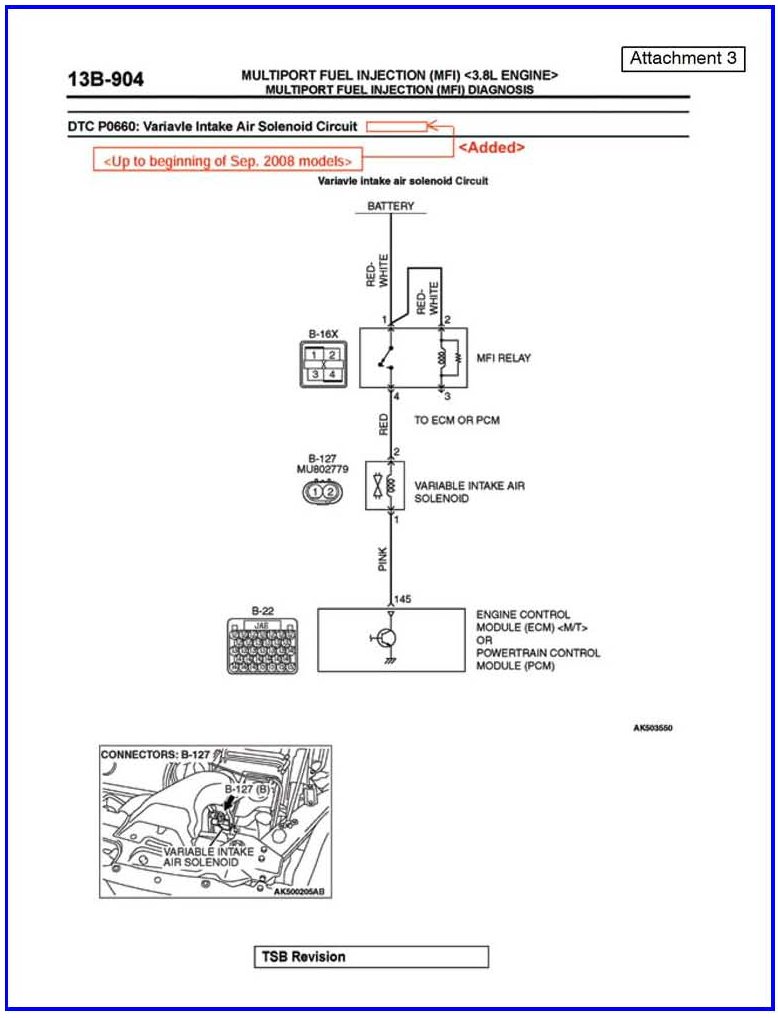

Updated Service Manual Page 13B-904

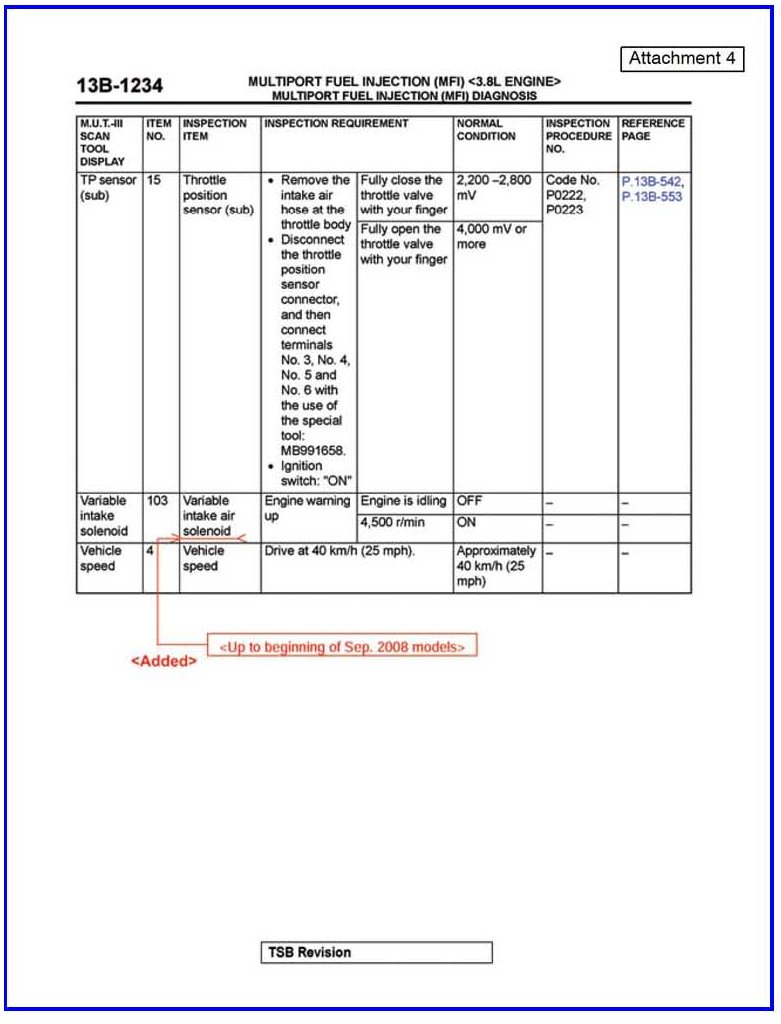

Updated Service Manual Page 13B-1234

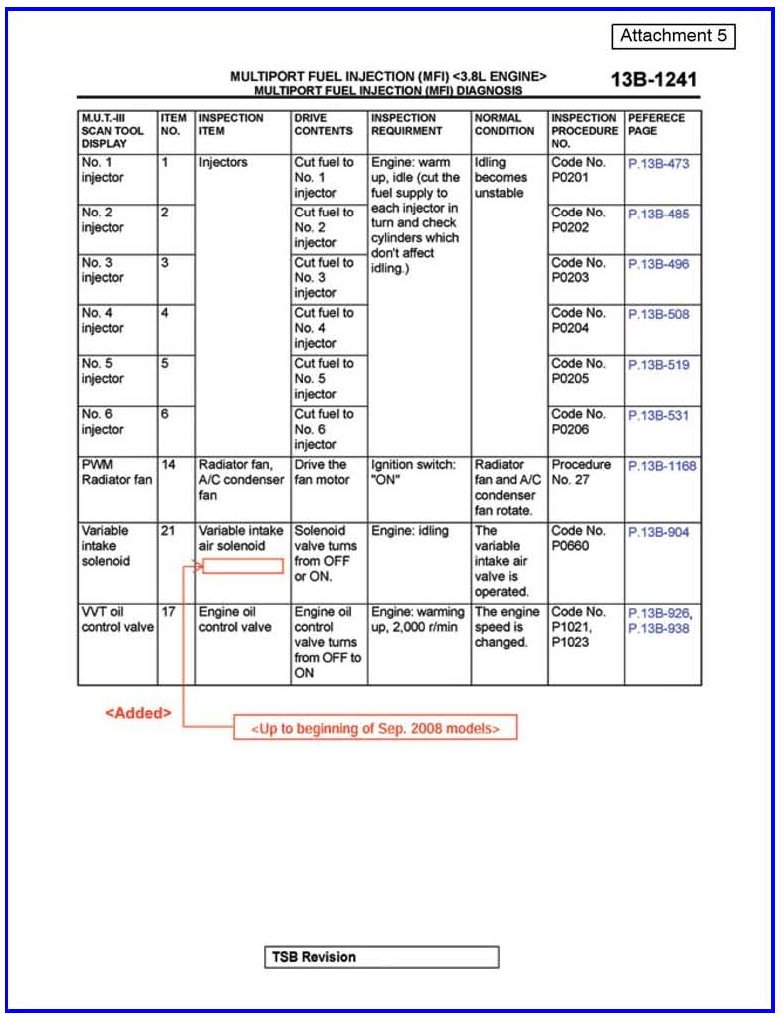

Updated Service Manual Page 13B-1241





Updated Service Manual Page 13B-1247

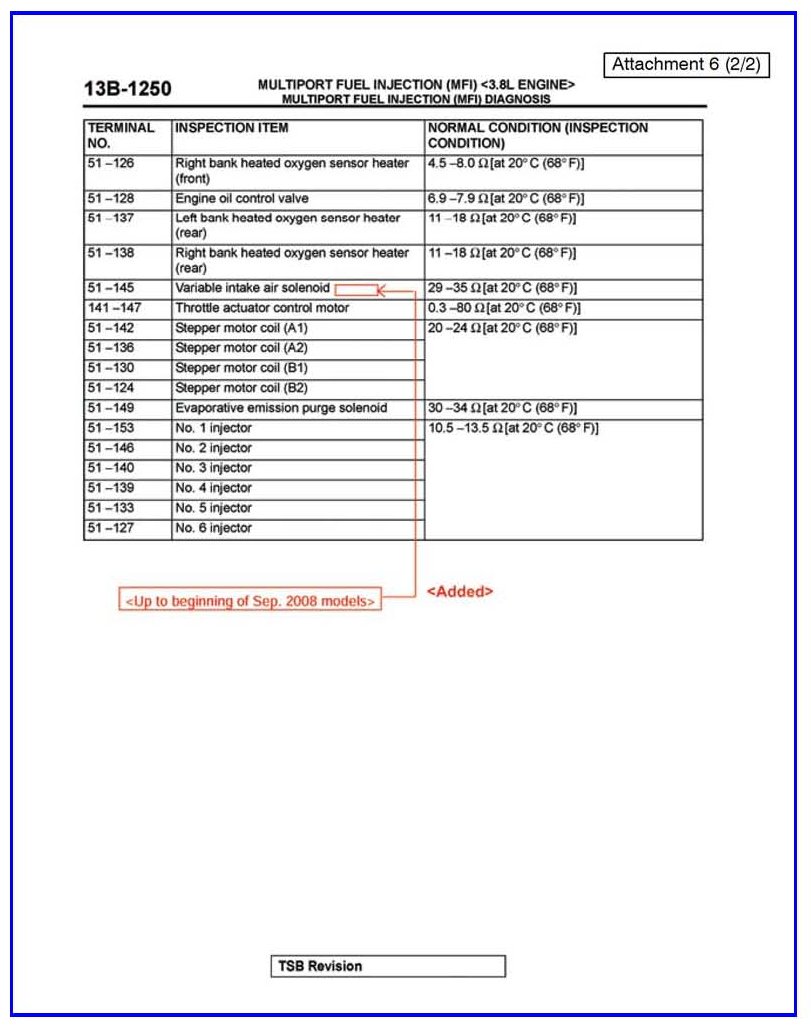

Updated Service Manual Page 13B-1250

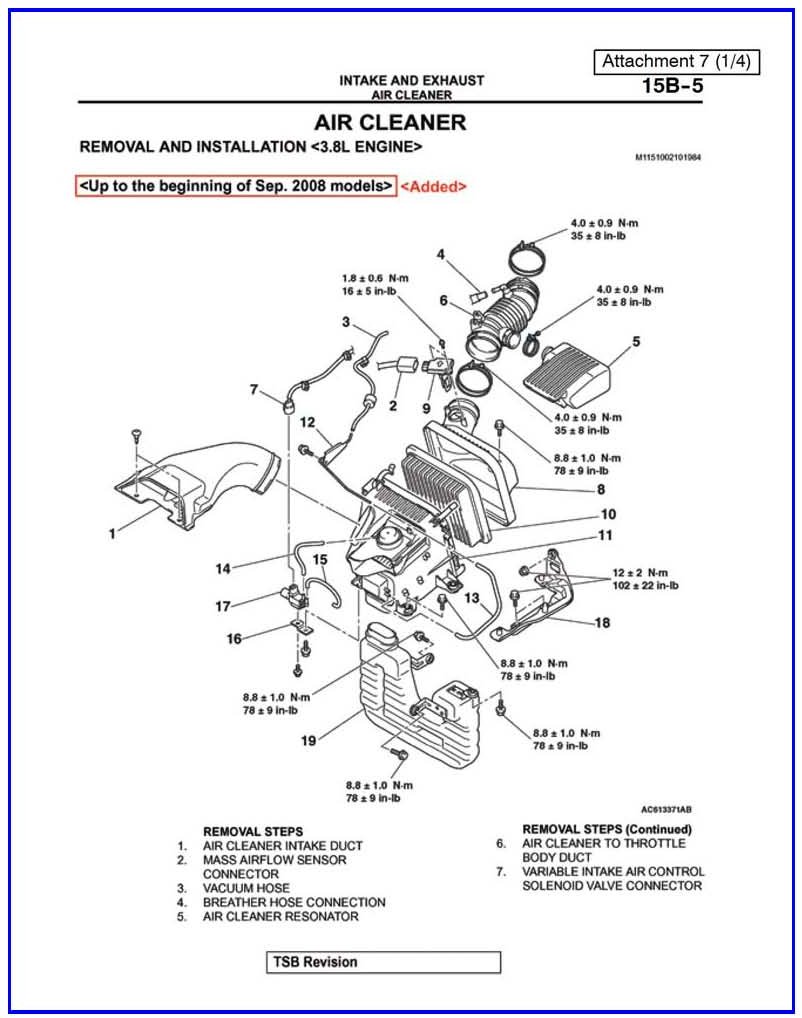

Updated Service Manual Page 15B-5

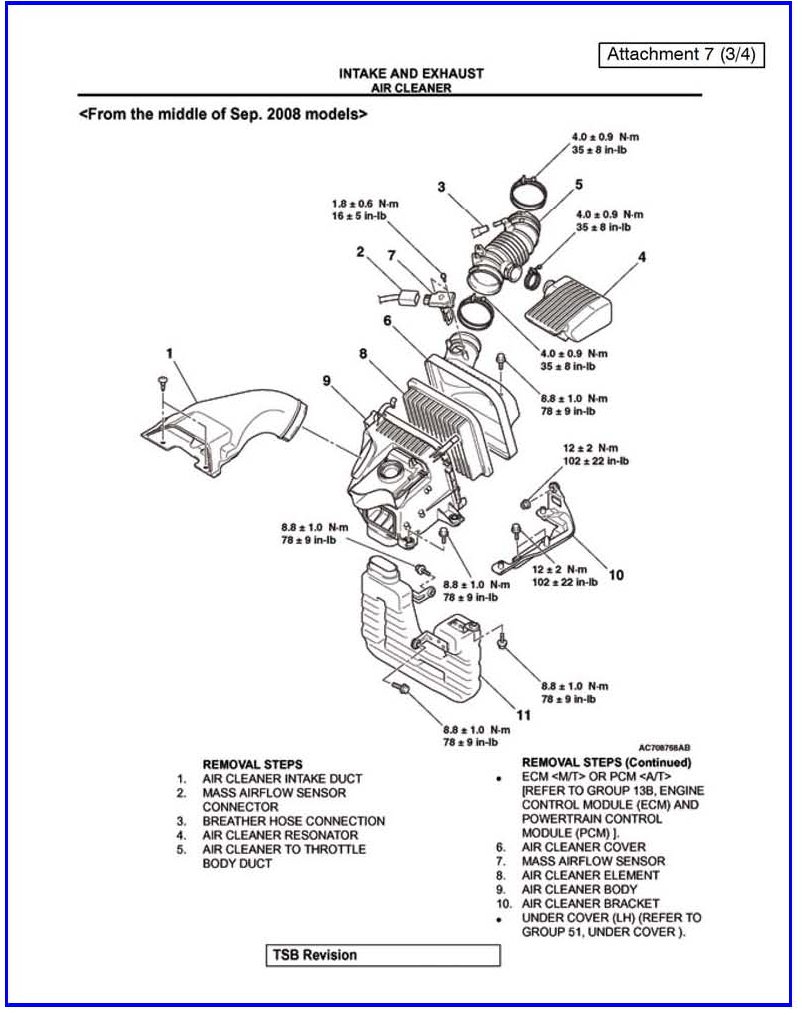

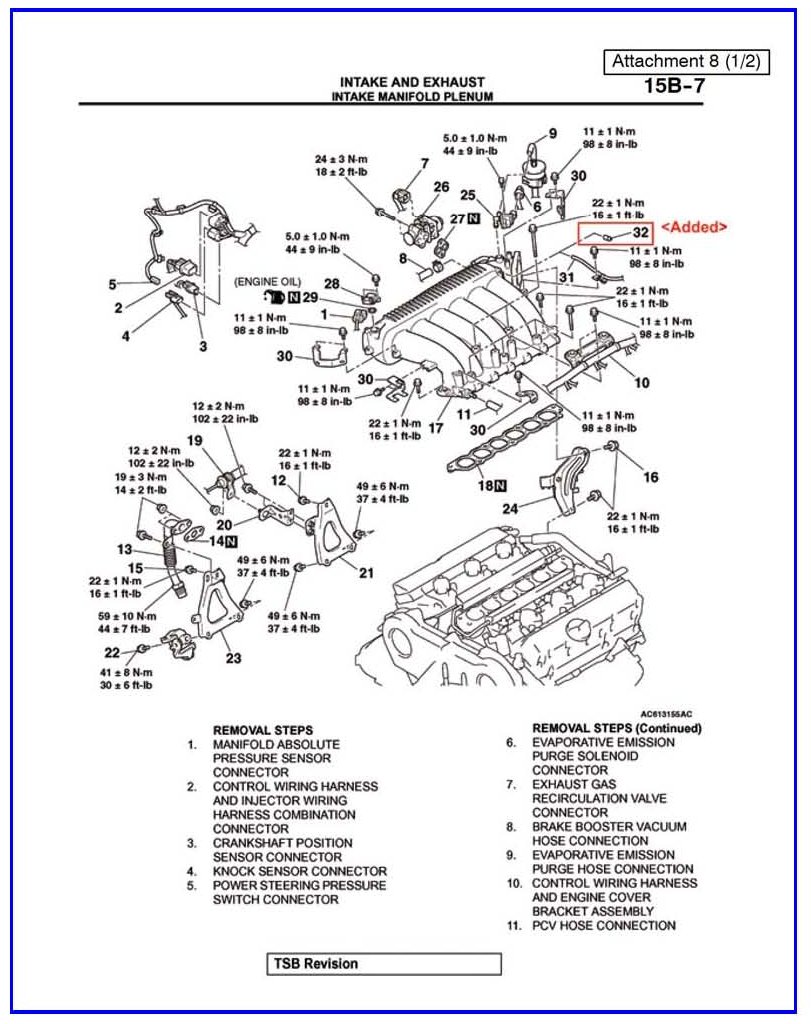

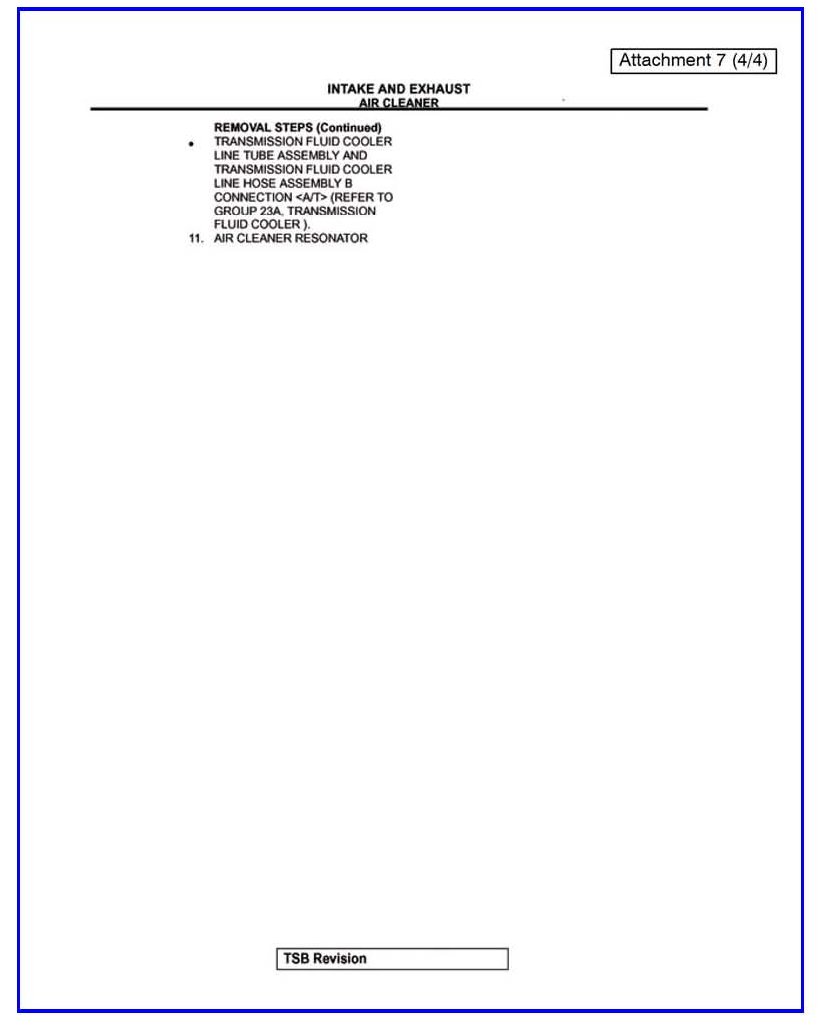

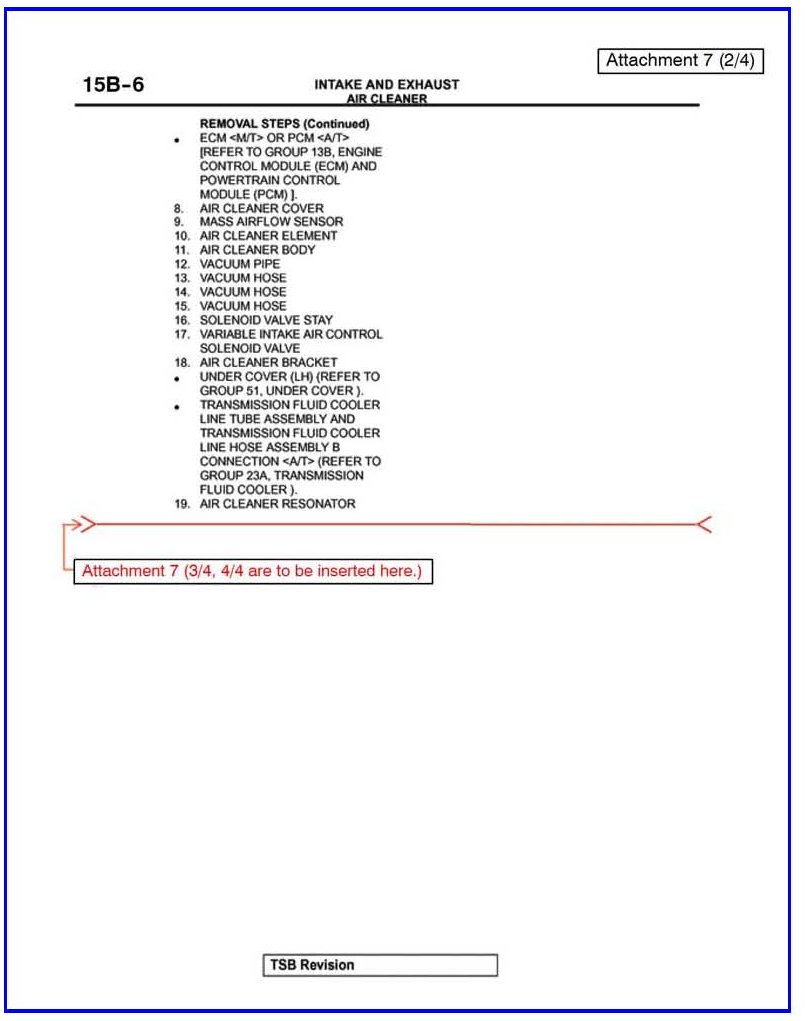

Updated Service Manual Pages 15B-6 (Intake and Exhaust Air Cleaner)

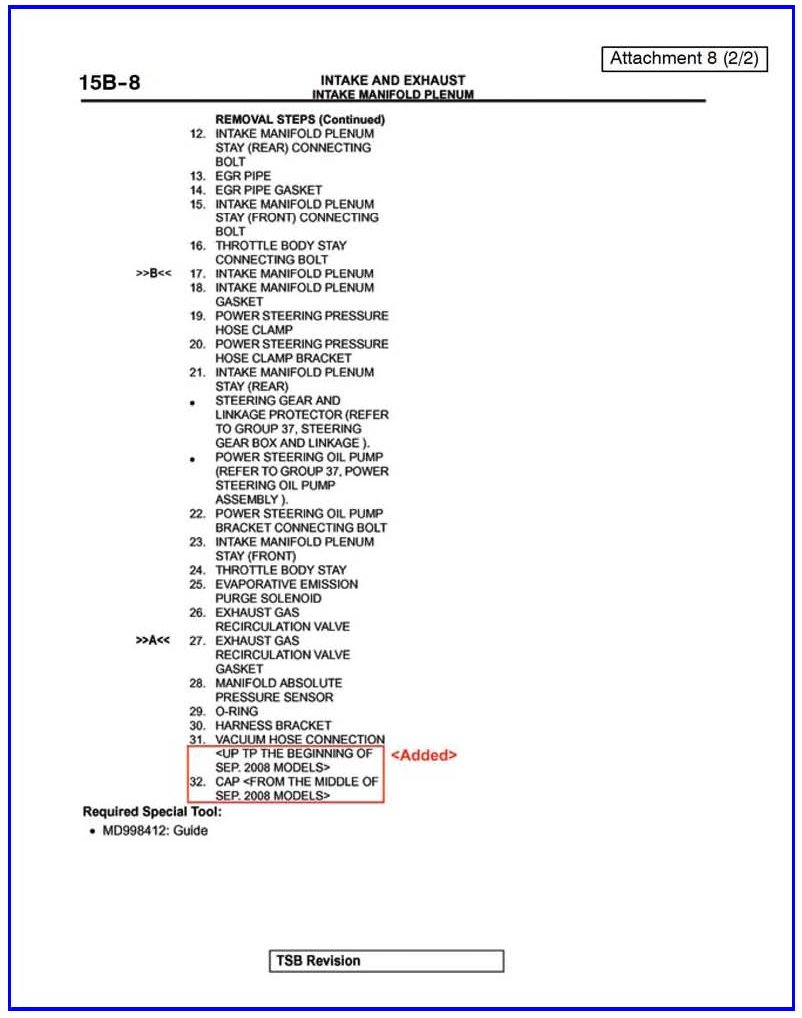

Updated Service Manual Page 15B-8
