Inspection Procedure 19

INSPECTION PROCEDURE 19: Surge.

COMMENT
- Defective ignition system, abnormal air/fuel ratio, the electronic control throttle valve system failed, etc. are suspected.

TROUBLESHOOTING HINTS (The most likely causes for this case:)
- Malfunction of the ignition system.
- Malfunction of air/fuel ratio control system.
- Malfunction of the electronic control throttle valve system.
- Malfunction of the EGR system.

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A

STEP 1. Using scan tool MB991958, read the diagnostic trouble code (DTC).

1. Turn the ignition switch to the "ON" position.
2. Check following items in the actuator test. Refer to MFI Actuator Test Reference Table. Actuator Test Reference Table
a. Item 1, 2, 3, 4, 5, 6: Injector.

3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are thy operating properly?

YES : Go to Step 3.

NO : Refer to DTC P0201, P0201 P0202, P0202 P0203, P0203 DTC P0204, P0204 P0205, P0205 P0206, P0206 - Injector Circuit.

STEP 3. Check the ignition timing.

Refer to engine mechanical, On-vehicle Service - Ignition Timing Check.

Q: Is the ignition timing normal?

YES : Go to Step 4.

NO : Check that the crankshaft position sensor and timing belt cover are in the correct position. Then confirm that the malfunction symptom is eliminated.

STEP 4. Using scan tool MB991958, check data list.

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

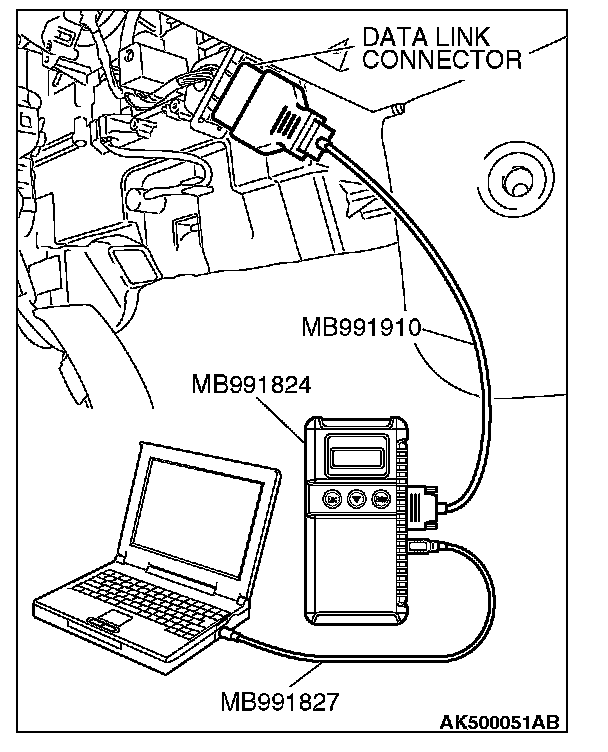

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Check the following items in the data list. Refer to MFI Data List Reference Table. Datal List Reference Table
a. Item 5: Intake Air Temperature Sensor.
b. Item 6: Engine Coolant Temperature Sensor.
c. Item AC: Heated Oxygen Sensor Bank 1, Sensor 1 (right front)
d. Item AD: Heated Oxygen Sensor Bank 1, Sensor 2 (right rear)
e. Item AE: Heated Oxygen Sensor Bank 2, Sensor 1 (left front)
f. Item AF: Heated Oxygen Sensor Bank 2, Sensor 2 (left rear)
g. Item BB: Barometric Pressure Sensor

4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are they operating properly?

YES : Go to Step 5.

NO : Repair or replace it. Then confirm that the malfunction symptom is eliminated.

STEP 5. Using scan tool MB991958, check data list.

1. Turn the ignition switch to the "ON" position.
2. Check the following items of data list. Refer to MFI Data List Reference Table. Datal List Reference Table
a. Item AC: Right Bank Heated Oxygen Sensor (front).
b. Item AE: Left Bank Heated Oxygen Sensor (front).
- Voltage should fluctuate between 0 - 0.4 volts and 0.6 - 1.0 volts while idling after the engine has been warmed.

3. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Are they operating properly?

YES : Go to Step 7.

NO : Go to Step 6.

STEP 6. Check the fuel pressure.

Refer to MFI On-vehicle Service - Fuel Pressure Test. Testing and Inspection

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the defective items.

a. Vacuum leak.
- Broken intake manifold gasket.
- Broken air intake hose.
- Broken vacuum hose.
- Positive crankcase ventilation valve does not operate.

b. Injector clogged.
Then confirm that the malfunction symptom is eliminated.

NO : Repair or replace it. Then confirm that the malfunction symptom is eliminated.

STEP 7. Check the fuel pressure.

Refer to MFI On-vehicle Service - Fuel Pressure Test. Testing and Inspection

Q: Is the fuel pressure normal?

YES : Check the following items, and repair or replace the defective items.
a. Check the ignition coil and spark plugs.
b. Check the EGR system.
Then confirm that the malfunction symptom is eliminated.

NO : Repair or replace it. Then confirm that the malfunction symptom is eliminated.
