Intake Manifold and Fuel Parts
INTAKE MANIFOLD AND FUEL PARTSREMOVAL AND INSTALLATION

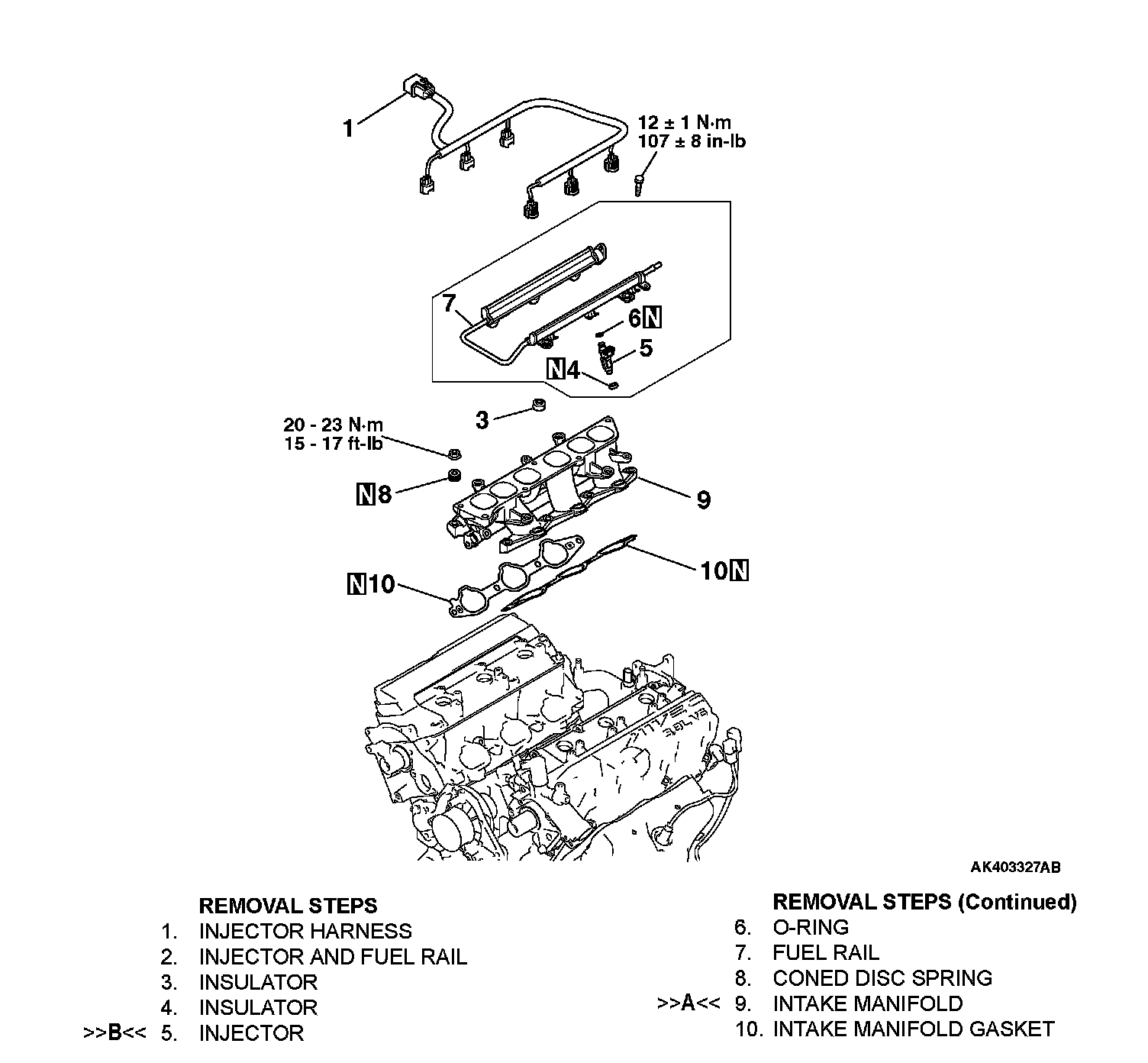

Removal Steps 1-10:
INSTALLATION SERVICE POINTS

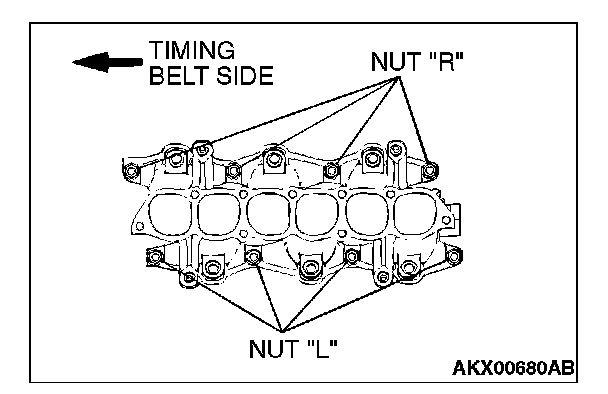

]]A[[ INTAKE MANIFOLD INSTALLATION
1. Tighten the nuts "R" to 6.4 ± 1.5 Nm (57 ± 13 in-lb).
2. Tighten the nuts "L" to the specified torque.
Tightening torque: 20-23 Nm (15-17 ft-lb)
3. Tighten the nuts "R" to the specified torque.
Tightening torque: 20-23 Nm (15-17 ft-lb)
4. Tighten the nuts "L" to the specified torque.
Tightening torque: 20-23 Nm (15-17 ft-lb)
5. Tighten the nuts "R" to the specified torque.
Tightening torque: 20-23 Nm (15-17 ft-lb)
]]B[[ INJECTOR INSTALLATION
CAUTION: Use care not to let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring

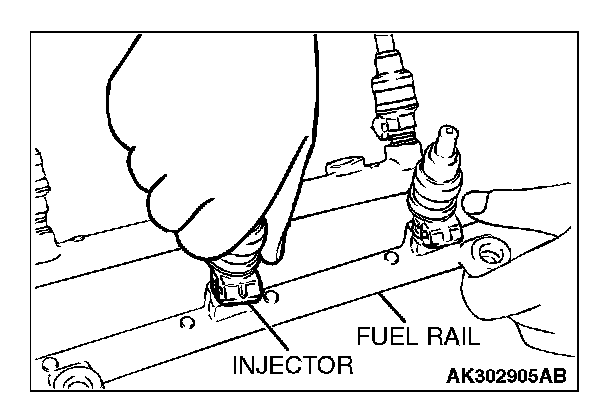

2. Insert the injector into the fuel rail.
3. Make sure the injector rotates smoothly. If not, remove the injector to check the O-ring for damage, and replace the O-ring if necessary. Then reinsert the injector and check that it rotates smoothly.

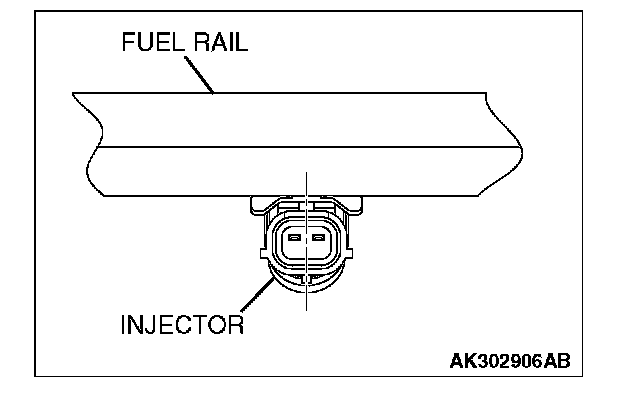

4. Confirm the protrusion of injector is at center. If not, rotate the injector for protrusion to be center.
