Ignition System

IGNITION SYSTEM

REMOVAL AND INSTALLATION

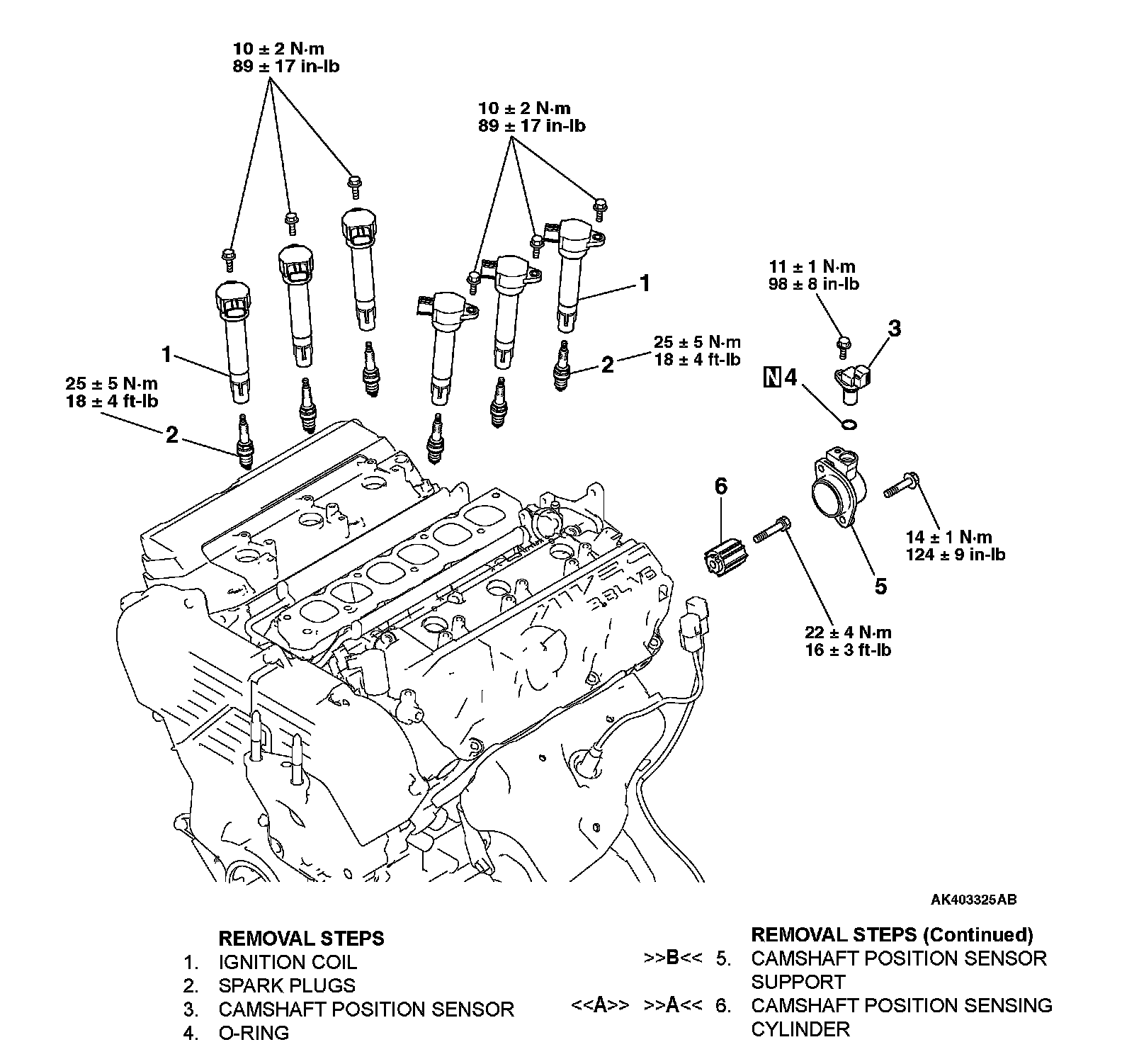

Removal Steps 1-6:

Required Special Tool:
^ MD998781: Flywheel Stopper

REMOVAL SERVICE POINT

[[A]] CAMSHAFT POSITION SENSING CYLINDER REMOVAL

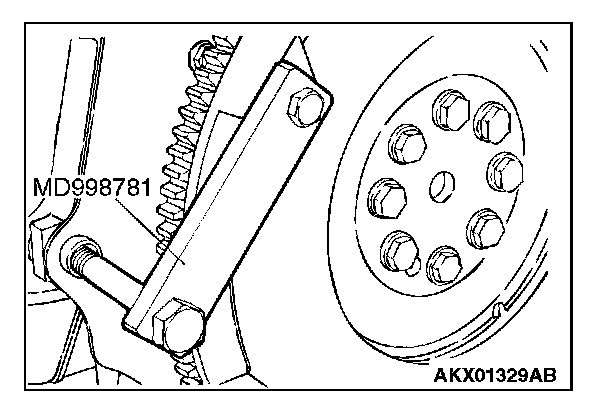

1. Using special tool MD998781, hold the drive plate or flywheel.
2. Loosen the camshaft position sensing cylinder bolt.

INSTALLATION SERVICE POINT

]]A[[ CAMSHAFT POSITION SENSING CYLINDER INSTALLATION

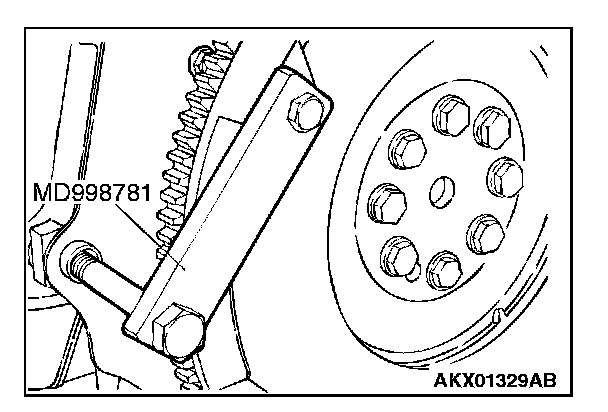

1. Using special tool MD998781, hold the drive plate or flywheel.
2. Tighten the camshaft position sensing cylinder bolt to the specified torque.

Tightening torque: 22 ± 4 Nm (16 ± 3 ft-lb)

]]B[[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION

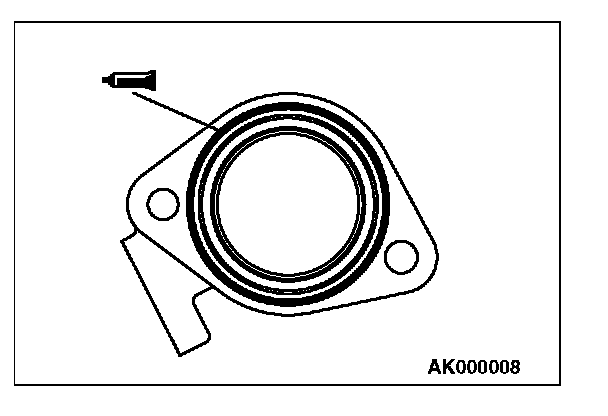

Apply a 3 mm (0.12 inch) diameter bead of sealant (Mitsubishi Genuine Part number MD970389 or equivalent) to the camshaft position sensor support.
