Intake Manifold Plenum

INTAKE MANIFOLD PLENUM

REMOVAL AND INSTALLATION [3.8L ENGINE]

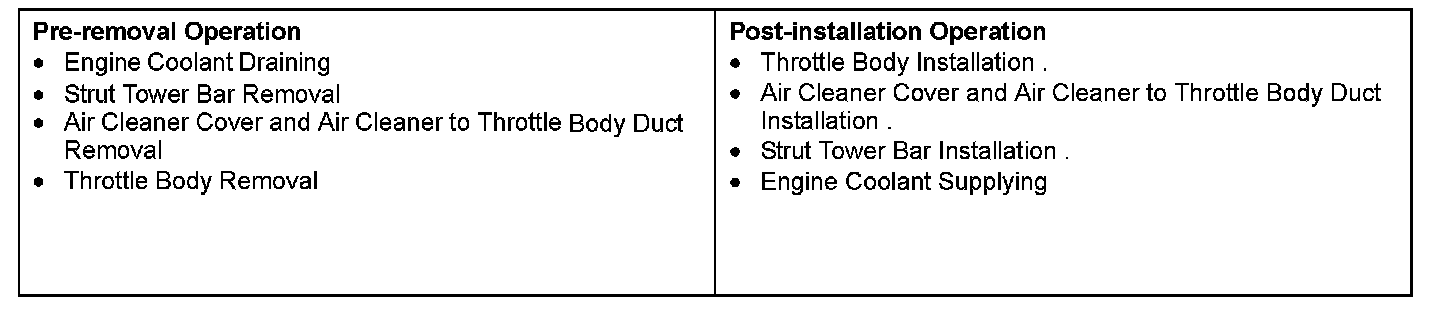

Pre-removal & Post-installation Operation:

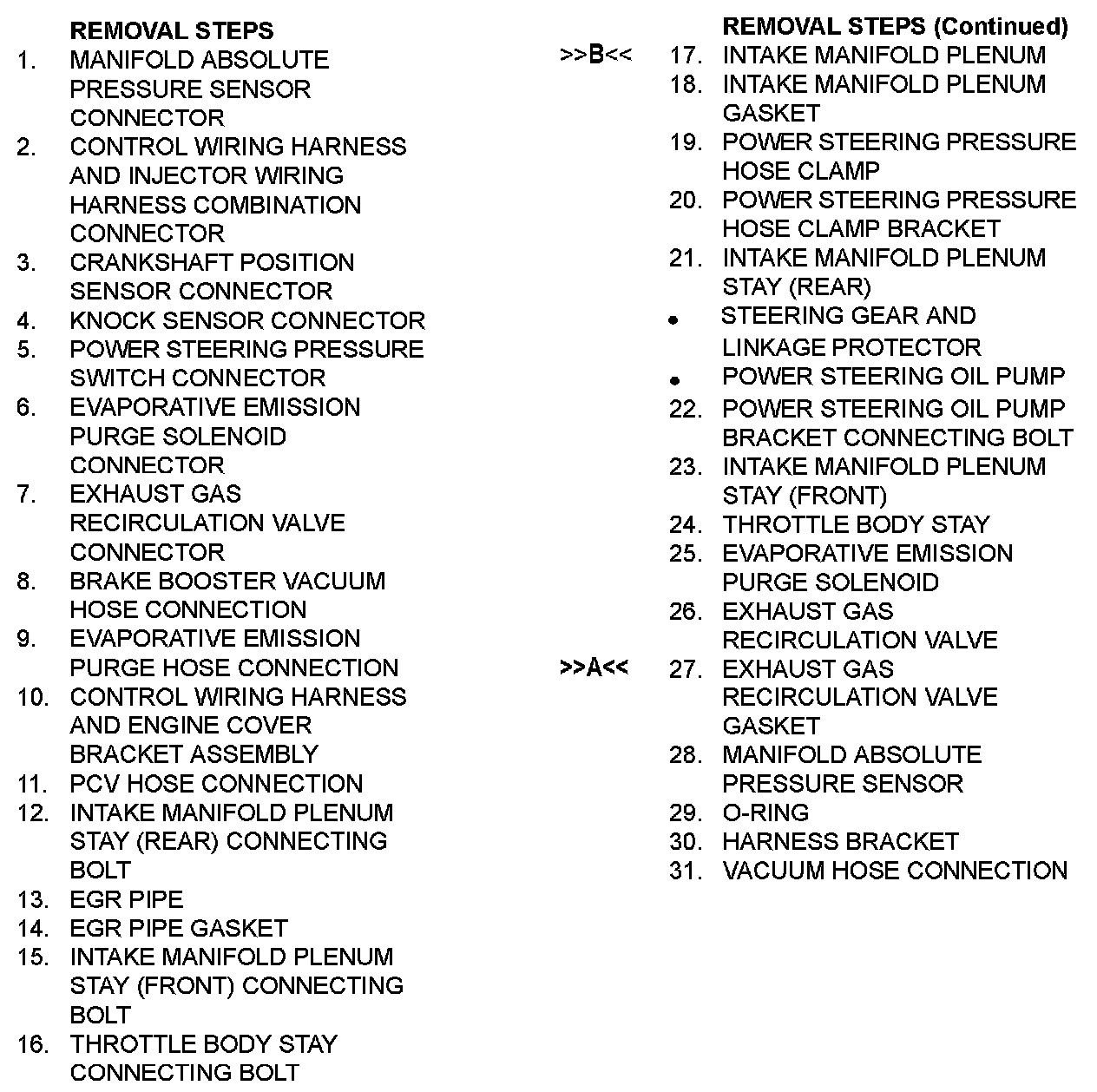

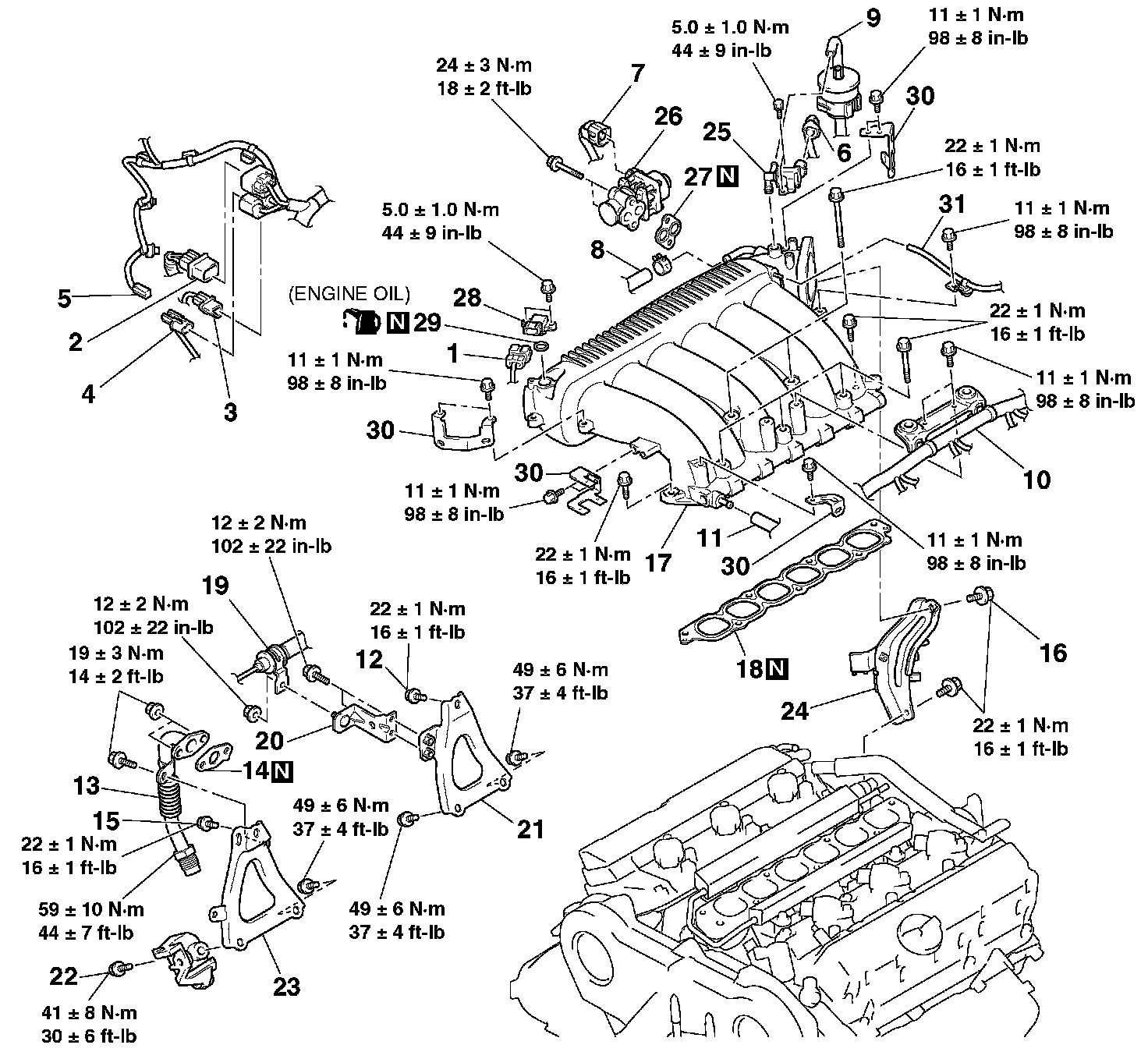

Removal Steps 1-31 (Part 1):

Removal Steps 1-31 (Part 2):

Required Special Tool:
- MD998412: Guide

INSTALLATION SERVICE POINTS

]]A[[ EXHAUST GAS RECIRCULATION VALVE GASKET INSTALLATION

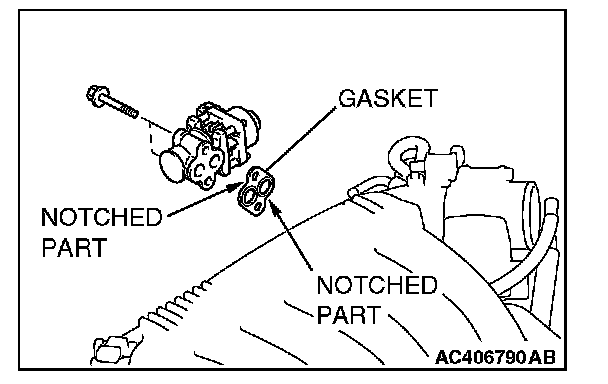

Install the exhaust gas recirculation valve gasket as shown in the illustration.

]]B[[ INTAKE MANIFOLD PLENUM INSTALLATION

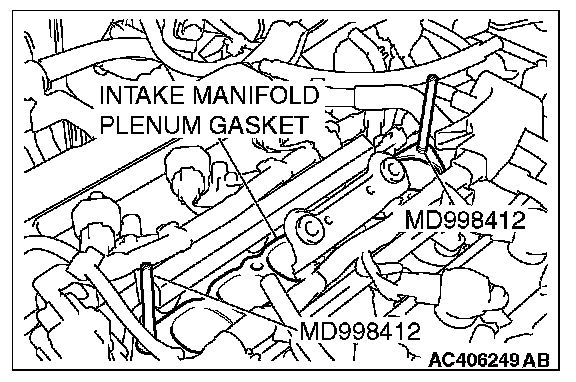

Use special tool MD998412 to install the intake manifold plenum.
