Drive Belts, Mounts, Brackets and Accessories: Testing and Inspection
DRIVE BELTS (FOR GENERATOR, POWER STEERING PUMP AND AIR CONDITIONING) (CHECK)GENERATOR DRIVE BELT TENSION CHECK [3.8L ENGINE]
WHEN USING SCAN TOOL MB991958
Required Special Tools:
^ M B991668: Belt Tension Meter Set
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication interface (V.C.I.)
^ MB991910: M.U.T.-III Main Harness A
CAUTION: To prevent damage to scan tool M13991824, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool M13991824.
1. Connect special tool MB991668 to scan tool MB991824.
2. Connect scan tool MB991910 to scan tool MB991824.
3. Connect scan tool MB991910 to the data link connector.
4. Turn the ignition switch to the "ON" position and select "Belt Tension" from the menu scan tool MB991824 screen.
CAUTION:
^ The temperature of the surface of the belt should be as close as possible to underhood temperature.
^ Do not let any contaminants such as water or oil get onto the microphone.
^ If strong gusts of wind blow against the microphone or if there are any loud sources of noise nearby, the values measured by the microphone may not correspond to actual values.
^ If the microphone is touching the belt while the measurement is being made, the values measured by the microphone may not correspond to actual values.
^ Do not take the measurement while the vehicle's engine is running.

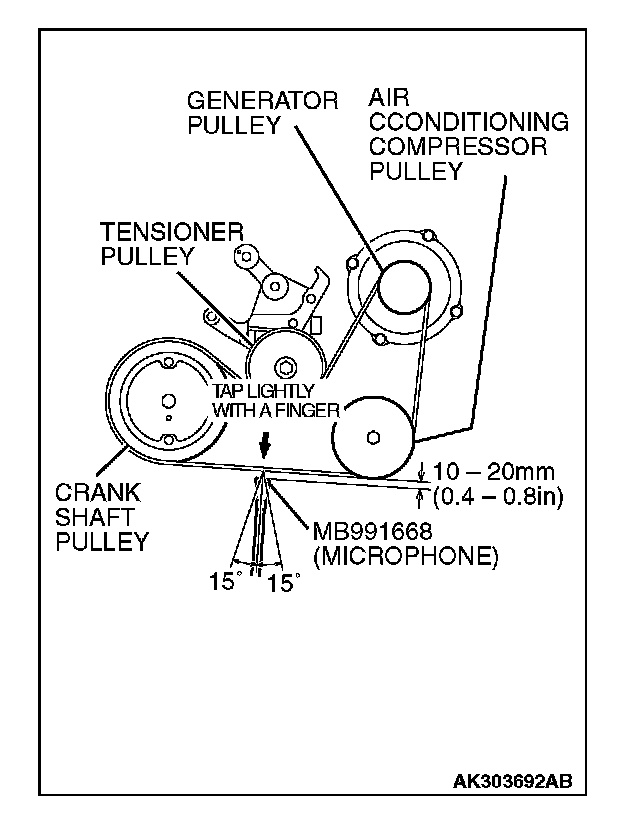

5. Hold special tool MB991668 (microphone) to the middle of the drive belt between the pulleys (at the place indicated by the arrow), about 10 -20 mm (0.4 -0.8 inch) away from the rear surface of the belt and so that it is perpendicular to the belt (within an angle of ± 15 degree angle).
6. Gently tap the middle of the belt between the pulleys (the place indicated by the arrow) with your finger as shown in the illustration, and check that the vibration frequency of the belt is within the standard value.
Standard value: 143 -169 Hz
NOTE: Because the frequency depends on the belt material, confirm Part No. shown on the reverse of the belt.
WHEN USING THE TENSION GAUGE

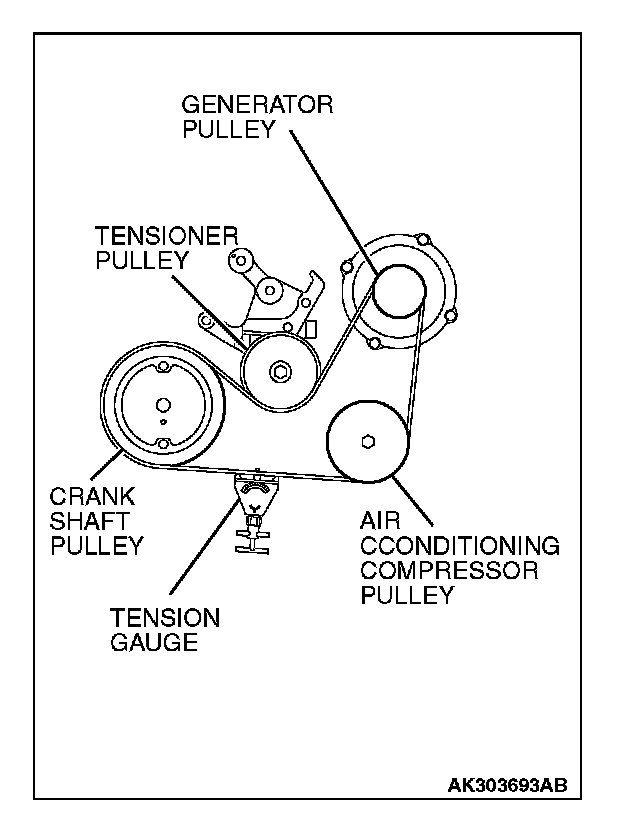

Use a belt tension gauge to check that the belt tension is within the standard value.
Standard value: 490 -686 N (110 -154 pounds)
BELT DEFLECTION CHECK
Apply approximately 98 N (22 pounds) of force to the middle of the drive belt between the pulleys (at the place indicated by the arrow) and check that the amount of deflection in within the standard value.
Standard value: 8.4 -10.7 mm (0.33 -0.42 inch)
GENERATOR DRIVE BELT TENSION ADJUSTMENT

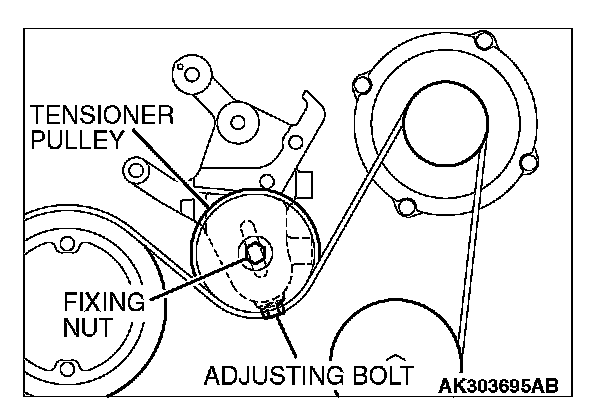

1. Loosen the tensioner pulley fixing nut.
2. With the tensioner pulley fixing nut temporarily tightened to 15 ±5 Nm (11 ±4 ft-lb), set the belt tension or deflection to the standard value using the adjusting bolt.

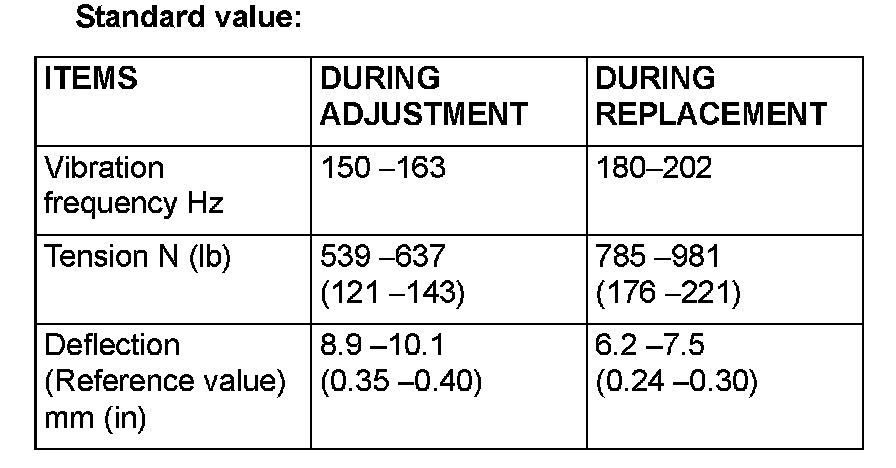

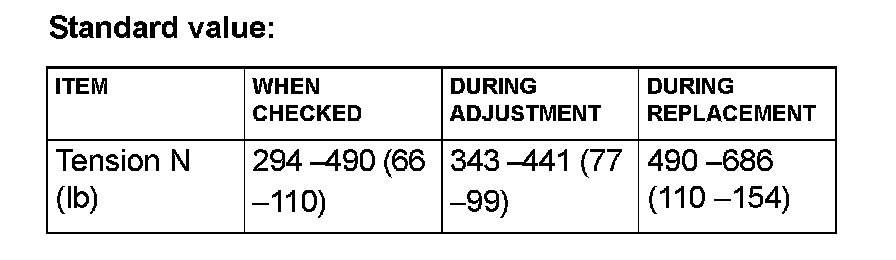

Standard value:
3. Tighten the tension pulley fixing nut.
Tightening torque: 49 ±10 Nm (36 ±7ft-lb)
POWER STEERING DRIVE BELT TENSION CHECK
WHEN USING SCAN TOOL MB991958
Required Special Tools:
^ M B991668: Belt Tension Meter Set
^ MB991958: Scan Tool (M.U.T.-III Sub Assembly)
^ MB991824: Vehicle Communication interface (V.C.I.)
^ MB991910: M.U.T.-III Main Harness A

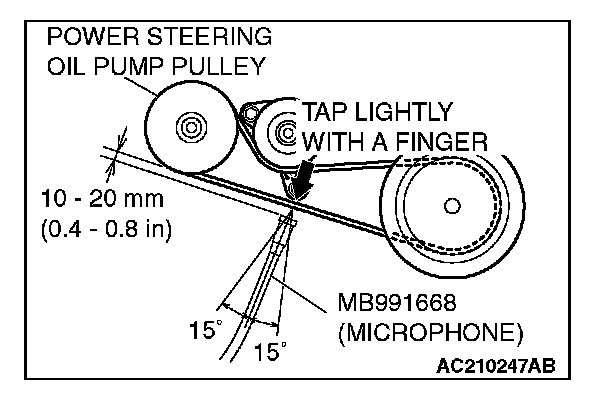

Gently tap the middle of the belt between the pulleys (the location indicated by the arrow) with your finger as shown in the illustration, and check that the vibration frequency of the belt is within the standard value.
NOTE: Refer to GENERATOR DRIVE BELT TENSION CHECK for details on the method of measuring the vibration frequency using the scan tool.

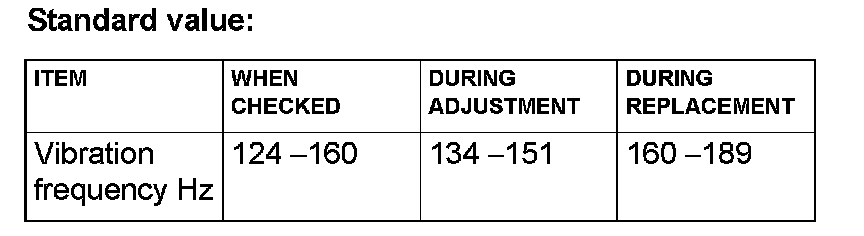

Standard value:
WHEN USING A TENSION GAUGE

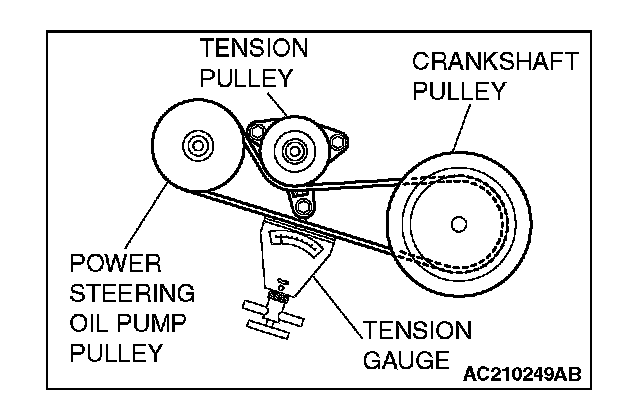

Use a belt tension gauge to check that the belt tension is within the standard value.
Standard value:
BELT DEFLECTION CHECK
Apply approximately 98 N (22 pounds) of force to the middle of the drive belt between the pulleys (at the place indicated by the arrow) and check that the amount of deflection is within the standard value.

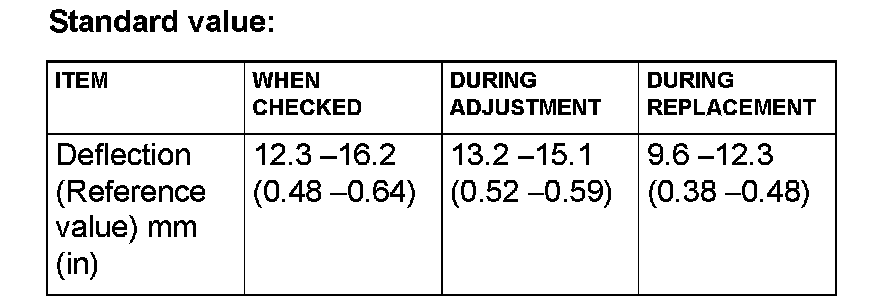

Standard value:
If the tension or deflection is outside the standard value, adjust by the following procedure.

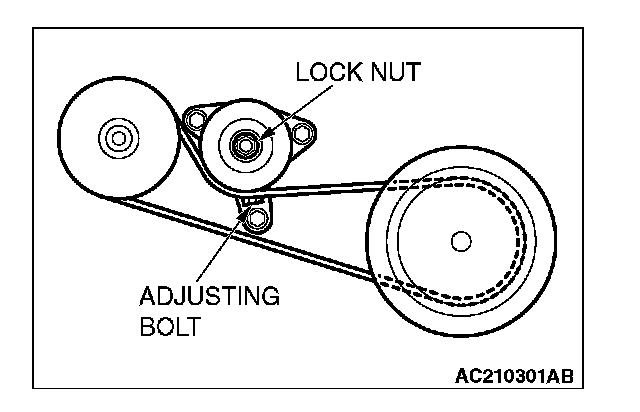

1. Loosen the tensioner pulley lock nut.
2. Adjust the belt tension to the standard value by turning the adjusting bolt. The tension will increase when turning the adjusting bolt clockwise, and decrease when turning counterclockwise.
3. Tighten the lock nut to the specified torque.
Tightening torque: 49 ±9 Nm (36 ±7 ft-lb)
4. Tighten the adjusting bolt.
Tightening torque: 5.0 ±11.0 Nm (44 ±9 in-lb)
CAUTION: Check after turning the crankshaft one or more rotations clockwise.
5. Check the belt deflection amount and tension, and readjust if necessary.
