Rear Wiper and Washer

REAR WIPER AND WASHER

REMOVAL AND INSTALLATION

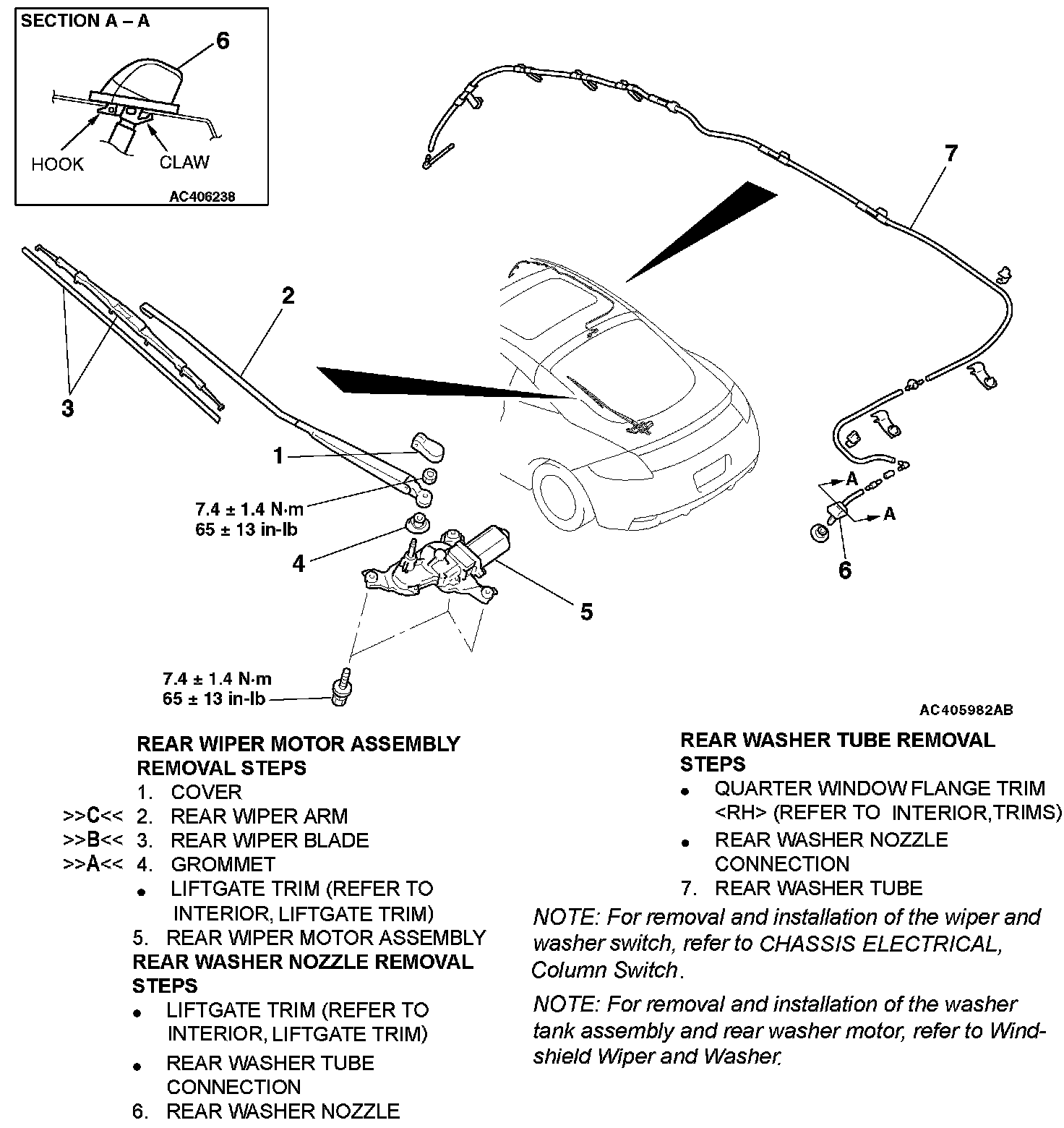

Removal Steps 1-7:

INSTALLATION SERVICE POINTS

]]A[[ GROMMET INSTALLATION






Install the grommet so that the arrow points backward.

]]B[[ REAR WIPER BLADE INSTALLATION

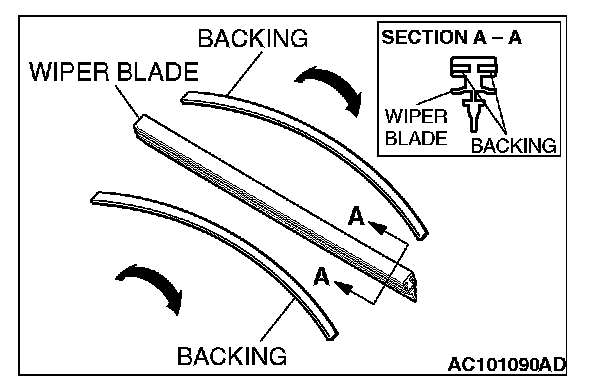

CAUTION: Ensure that the backings are bent in the direction indicated, and then install the backings to the wiper blade rubber.

]]C[[ REAR WIPER ARM INSTALLATION

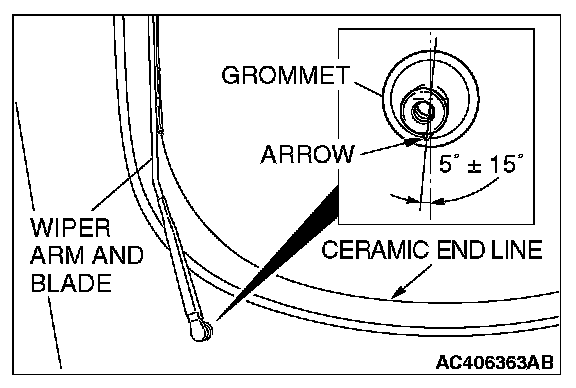

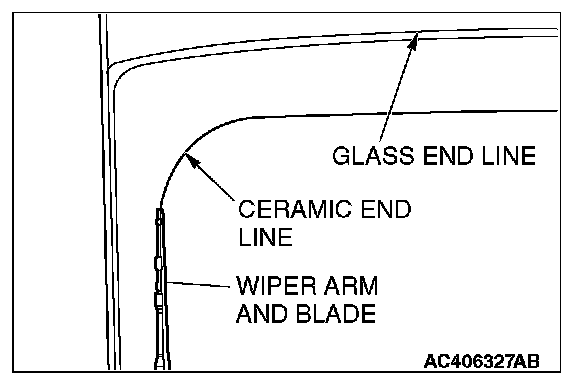

Install the wiper arm and blade assembly so that it is positioned on the ceramic end line.
