Front Door Window Glass: Service and Repair

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

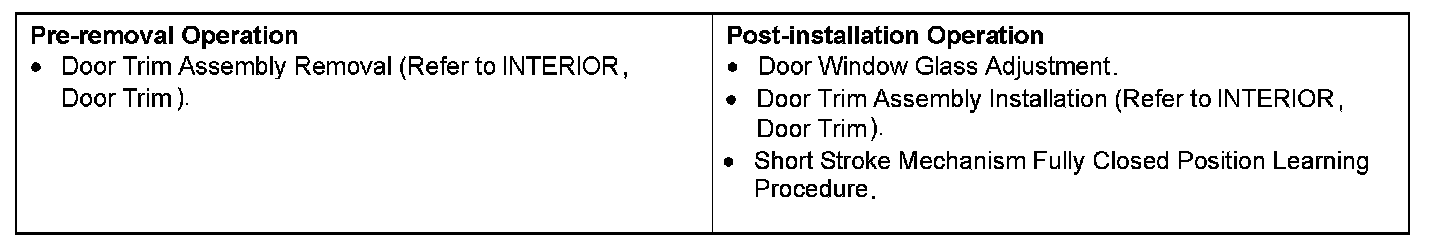

Pre-removal & Post-installation Operation:

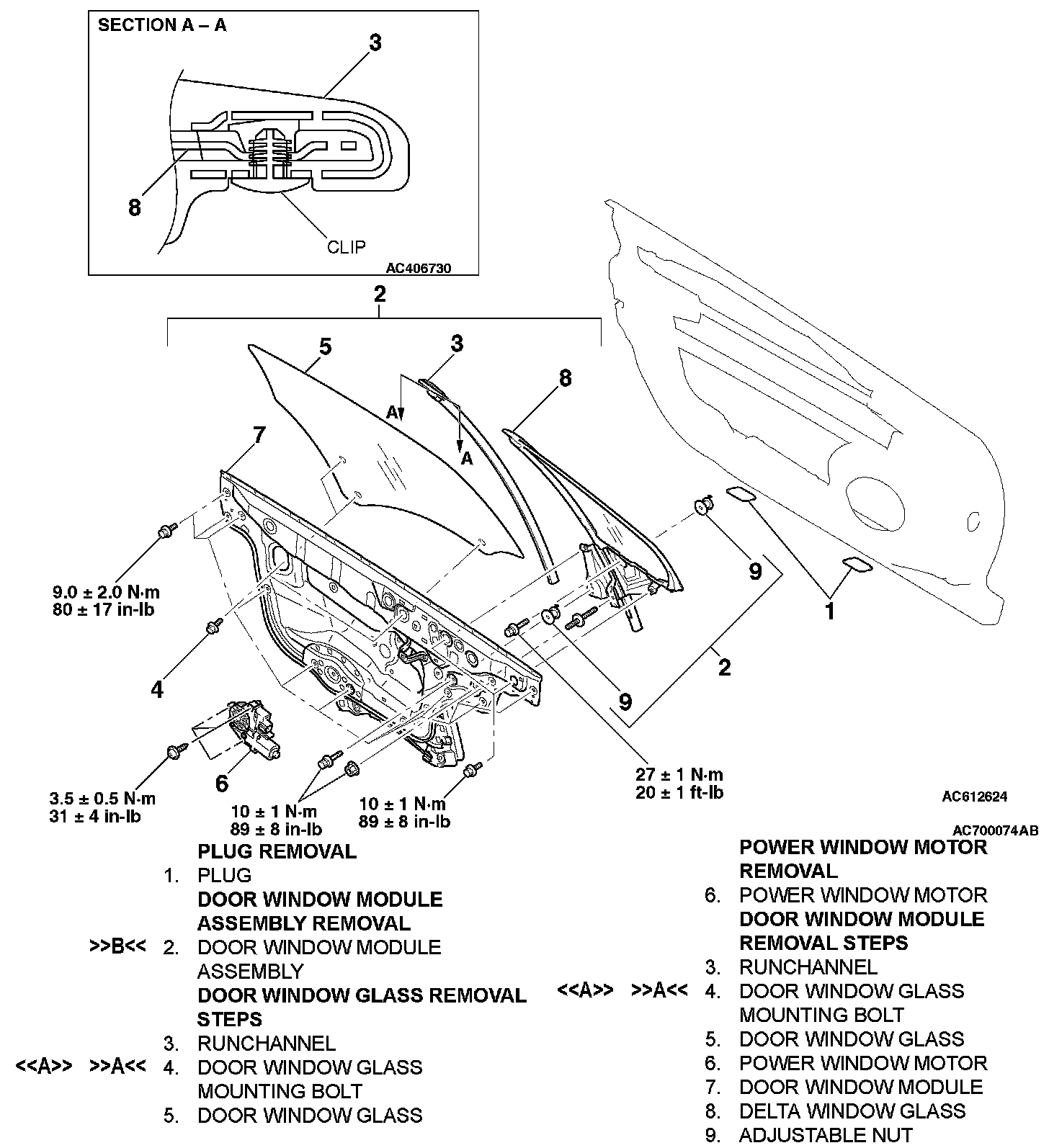

Removal Steps 1-9:

REMOVAL SERVICE POINT

[[A]] DOOR WINDOW GLASS MOUNTING BOLT REMOVAL

CAUTION: When loosening the door window glass mounting bolts, use a magnetic wrench to prevent bolts from dropping into the door window module assembly cavity.

INSTALLATION SERVICE POINTS

]]A[[ DOOR WINDOW GLASS MOUNTING BOLT INSTALLATION

CAUTION: When tightening the door window glass mounting bolts, use a magnetic wrench to prevent bolts from dropping into the door window module assembly cavity.

]]B[[ DOOR WINDOW MODULE ASSEMBLY INSTALLATION






Install the door window module assembly in the order shown.

NOTE: Check the installation position of the door window glass and the delta window glass.
