Fluid - M/T: Testing and Inspection

MANUAL TRANSMISSION OIL

TRANSMISSION OIL LEVEL CHECK

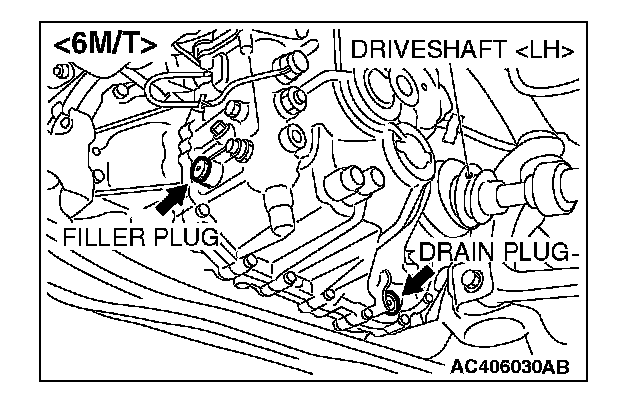

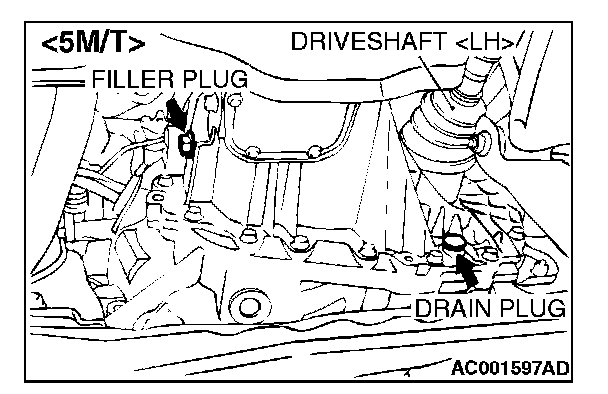

1. Remove the filler plug.

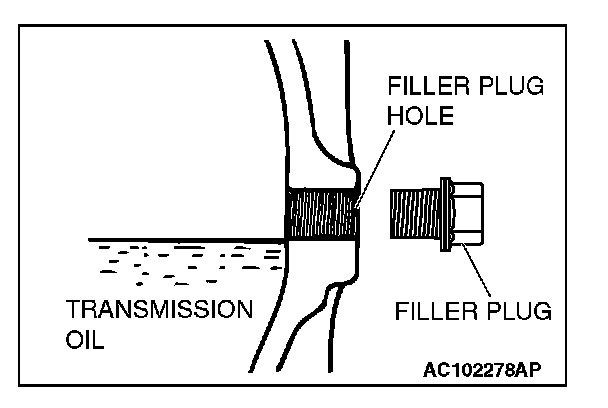

2. Check that the oil level is up to the lower edge of the filler plug hole.
3. Check that the oil is not noticeably dirty.
4. Tighten the filler plug to the specified torque.

Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)

TRANSMISSION OIL REPLACEMENT








1. Remove the filler plug.
2. Remove the drain plug and drain the oil.
3. Tighten the drain plug to the specified torque.

Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)

4. Fill with DiaQueen NEW MULTI GEAR OIL (GL-3) SAE 75W-80 until the level comes to the lower portion of filler plug hole.

Quantity:
[5M/T] 2.2 dm3 (2.3 quarts)
[6M/T] 2.2 dm3 (2.3 quarts)

5. Tighten the filler plug to the specified torque.

Tightening torque: 32 ± 2 Nm (24 ± 1 ft-lb)
