Removal and Replacement

NOTE: This article contains changes called out in TSB-08-21-001.


CLUTCH PEDAL

REMOVAL AND INSTALLATION

CAUTION: Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which may have grease on them.

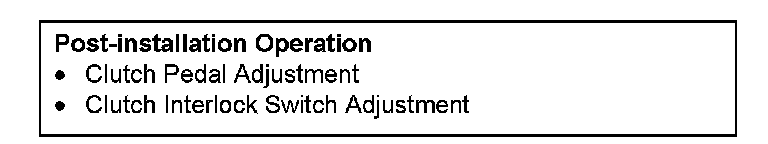

Post-installation Operation:

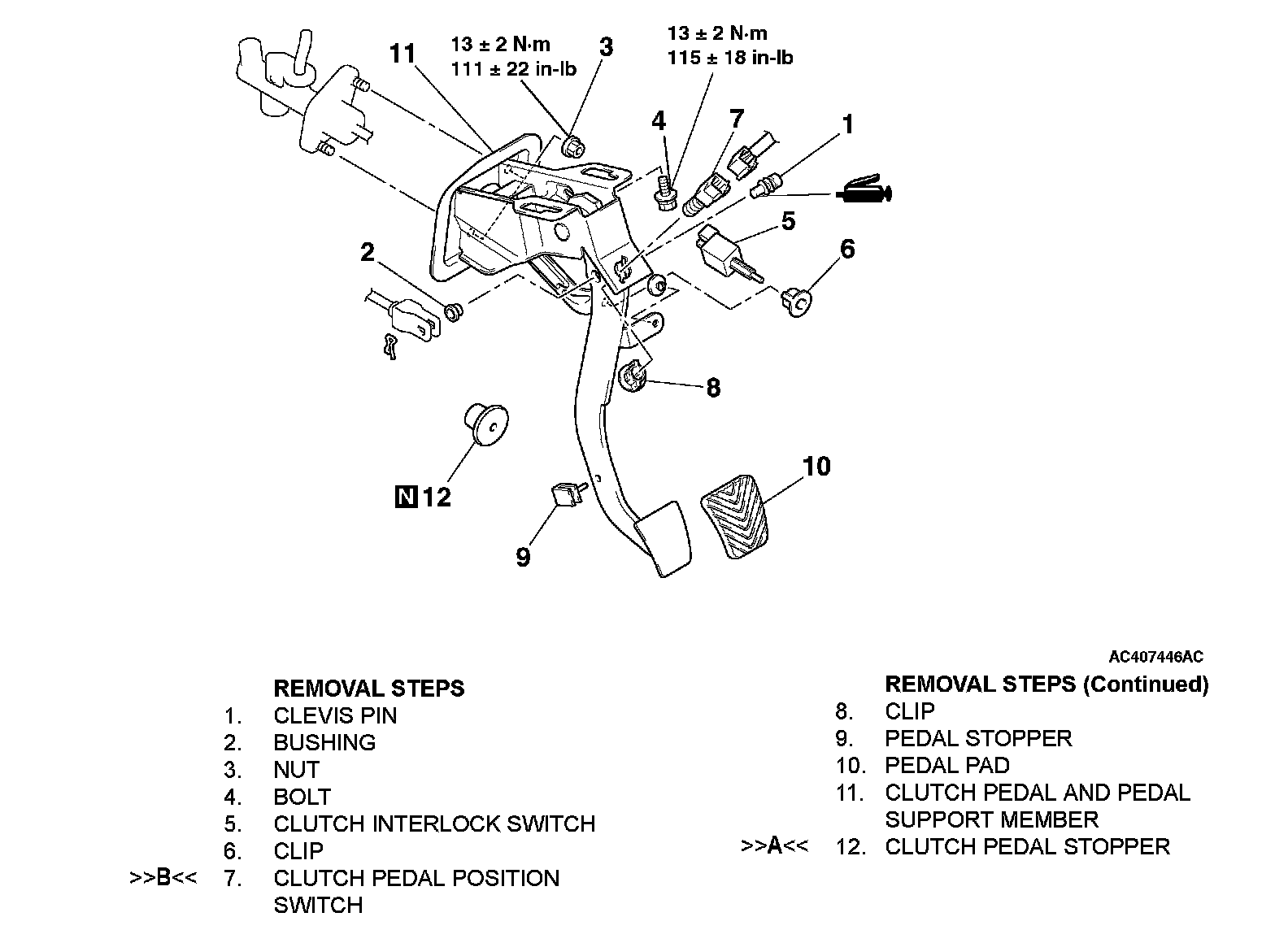

Removal Steps 1-12:

INSTALLATION SERVICE POINTS

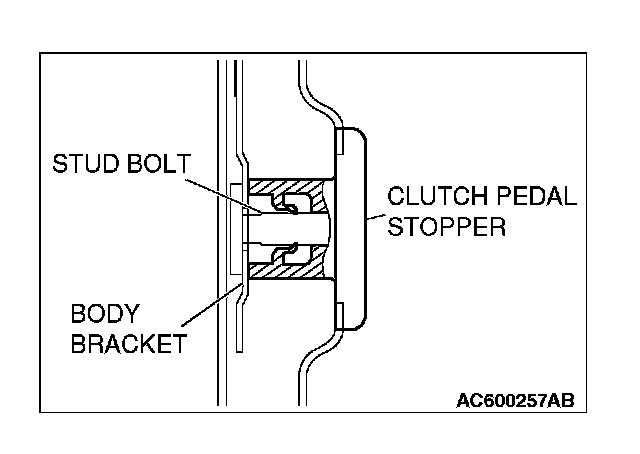

]]A[[ CLUTCH PEDAL STOPPER INSTALLATION





1. Insert the clutch pedal stopper straight into the stud bolt of the floor.
2. Install the clutch pedal stopper securely by turning it clockwise until its underside contacts with the body bracket as shown in the figure.
3. After the installation, slightly pull the clutch pedal stopper by hand to check that it cannot be removed easily (appropriate holding power: 100N or more).

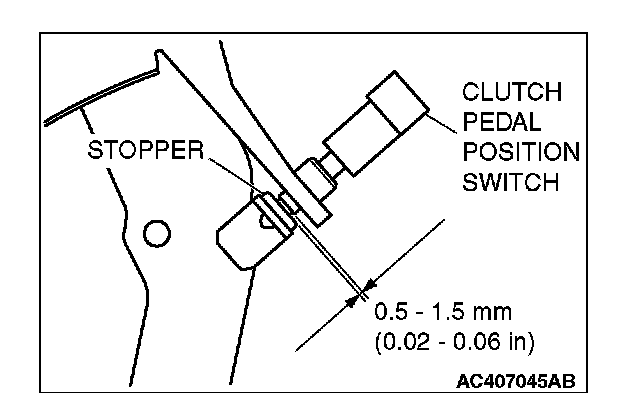

]]B[[ CLUTCH PEDAL POSITION SWITCH INSTALLATION





Install the clutch pedal position switch so that the clearance between the stopper and switch is as shown when the clutch pedal is not depressed.

NOTE: If not at the specified dimension, loosen the clutch interlock switch 1/4 turn counterclockwise. Then slide the switch to the specified dimension, and turn the switch 1/4 turn clockwise to lock.
