Automatic Transmission/Transaxle: Locations

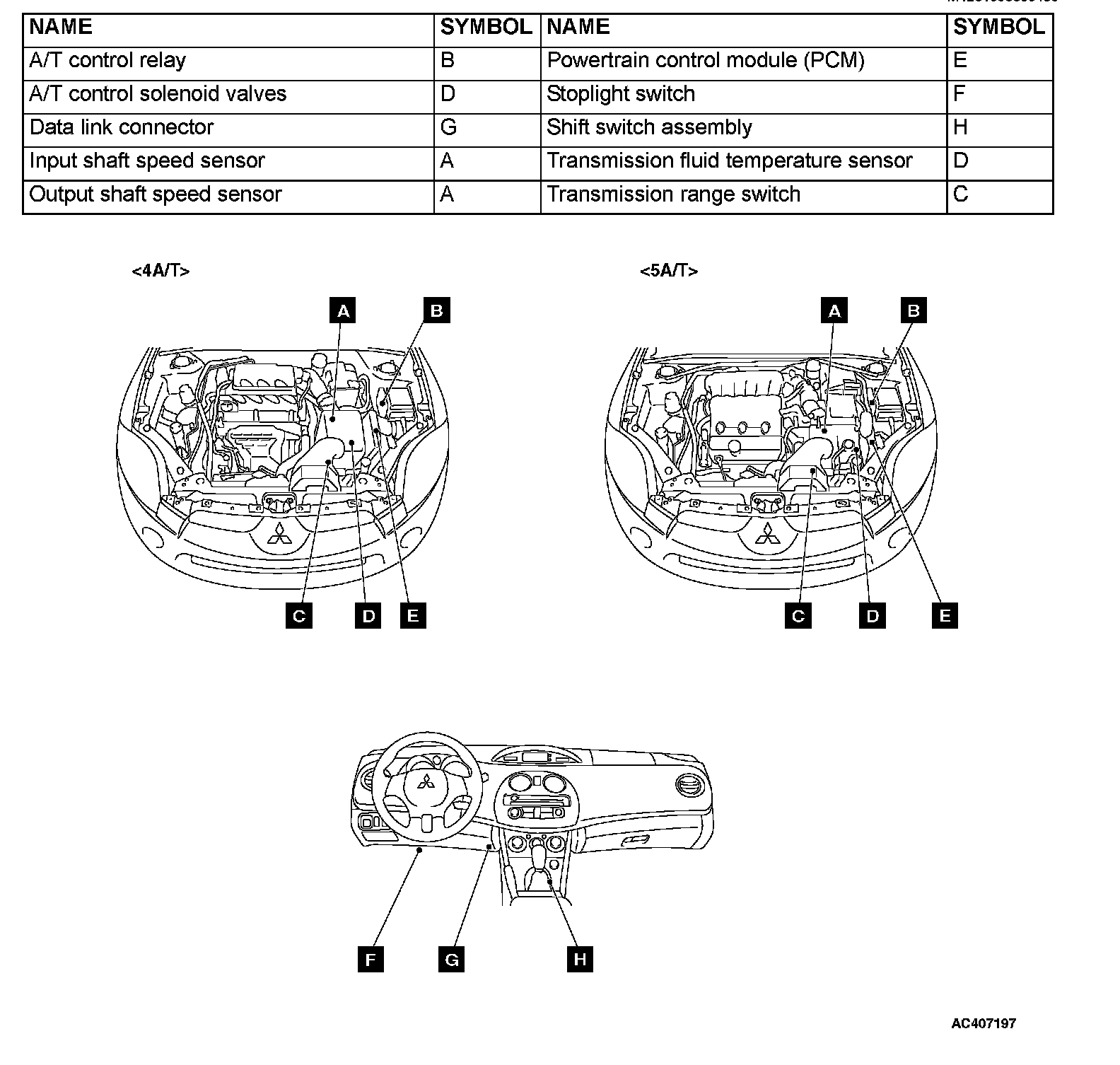

A/T Control Component Layout (Part 1):
A/T Control Component Layout (Part 2):

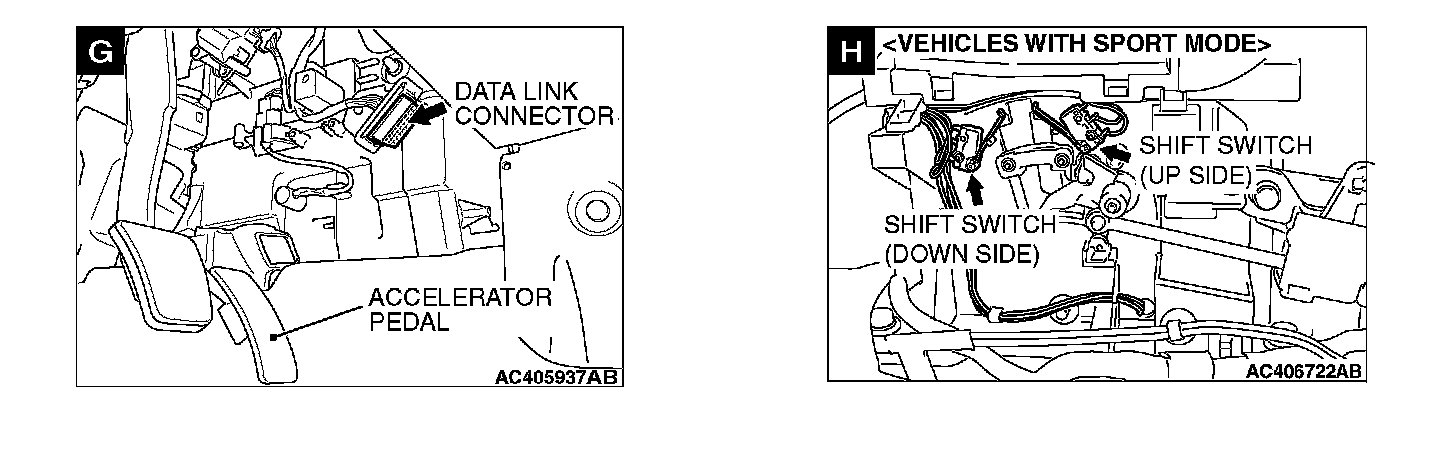

A/T Control Component Layout (Part 3):
