Fluid Diagrams

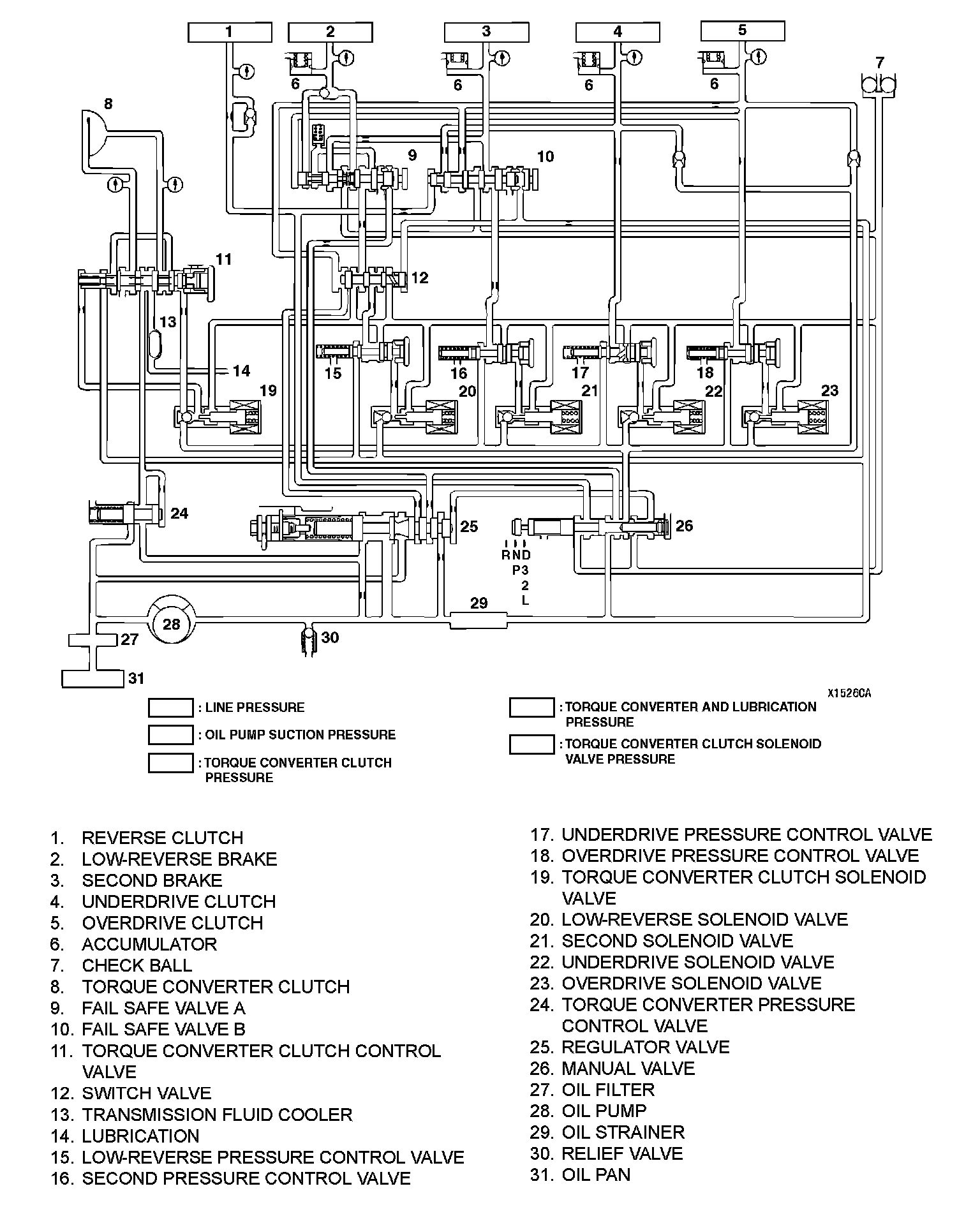

HYDRAULIC CIRCUITPARKING AND NEUTRAL [4A/T]
PARKING AND NEUTRAL [4A/T]:

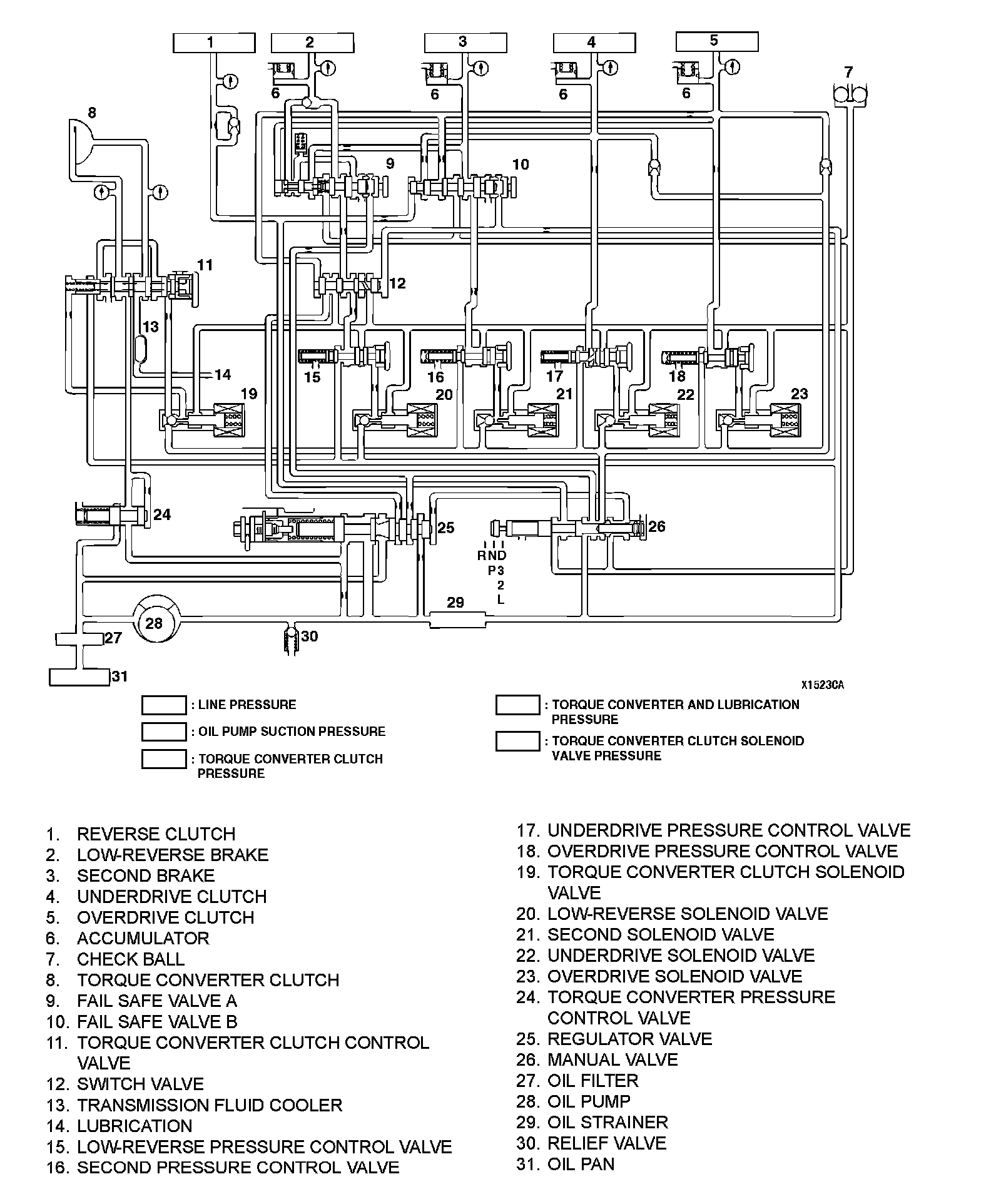

1ST GEAR [4A/T]
1ST GEAR [4A/T]:

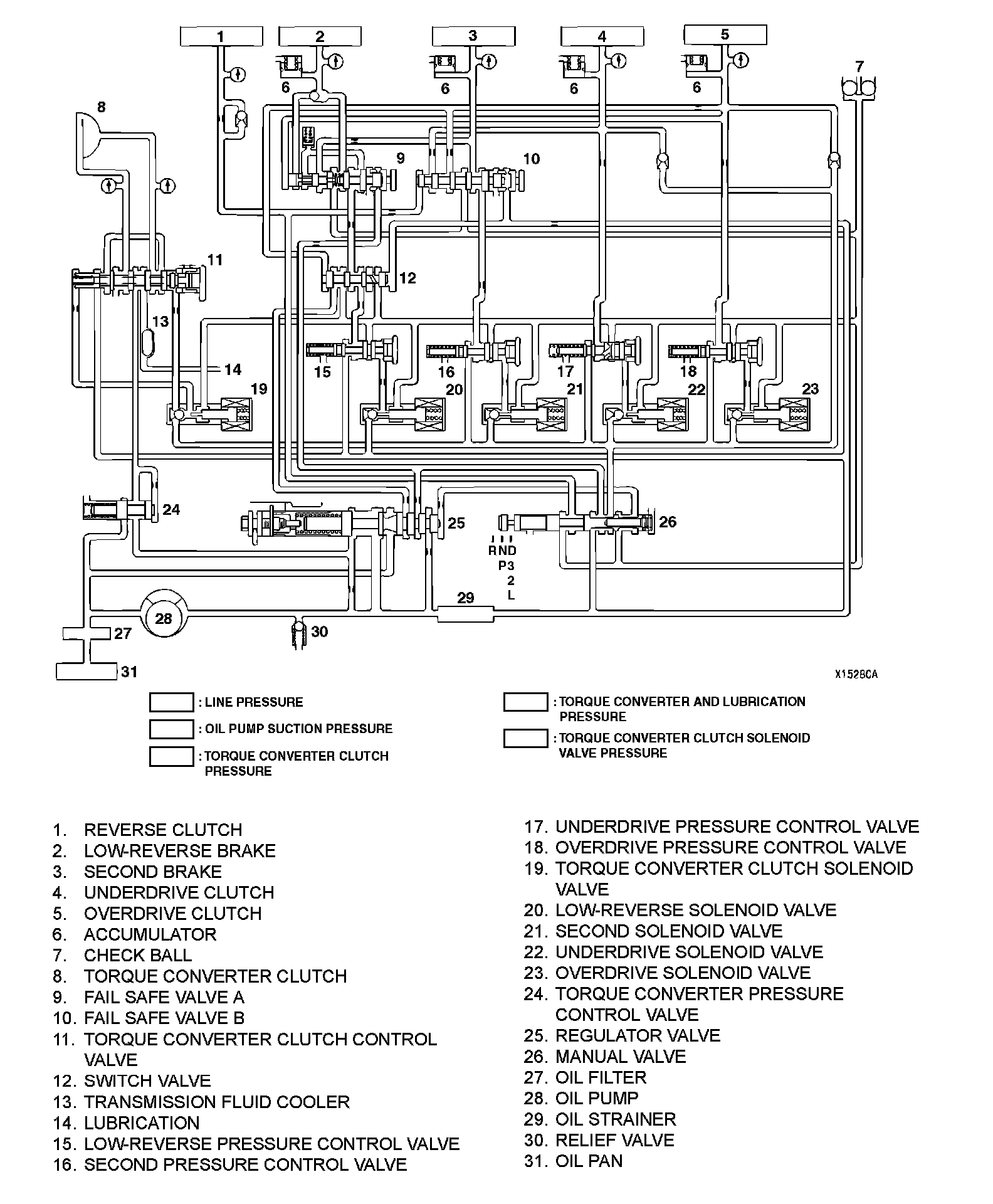

2ND GEAR [4A/T]
2ND GEAR [4A/T]:

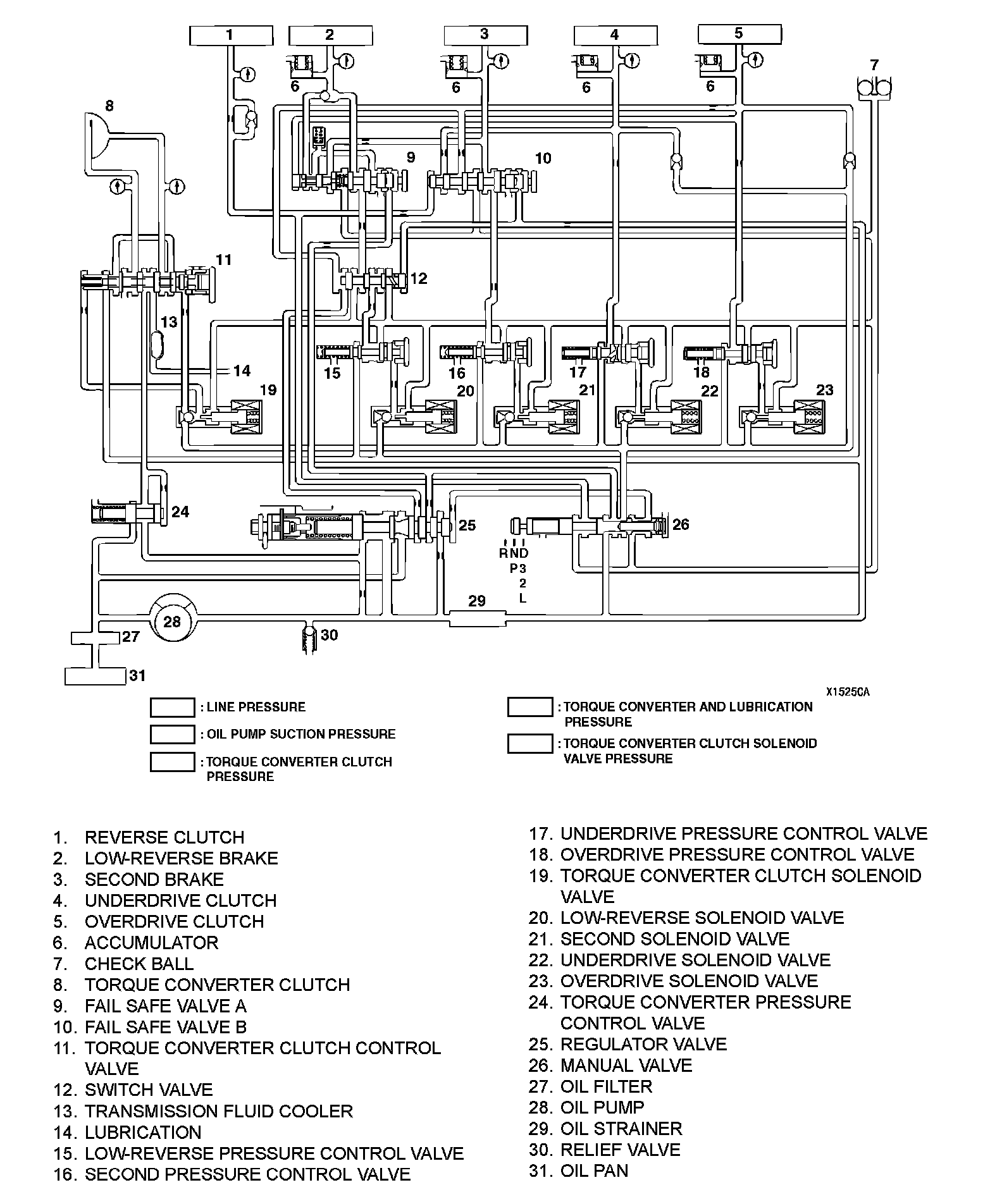

3RD GEAR [4A/T]
3RD GEAR [4A/T]:

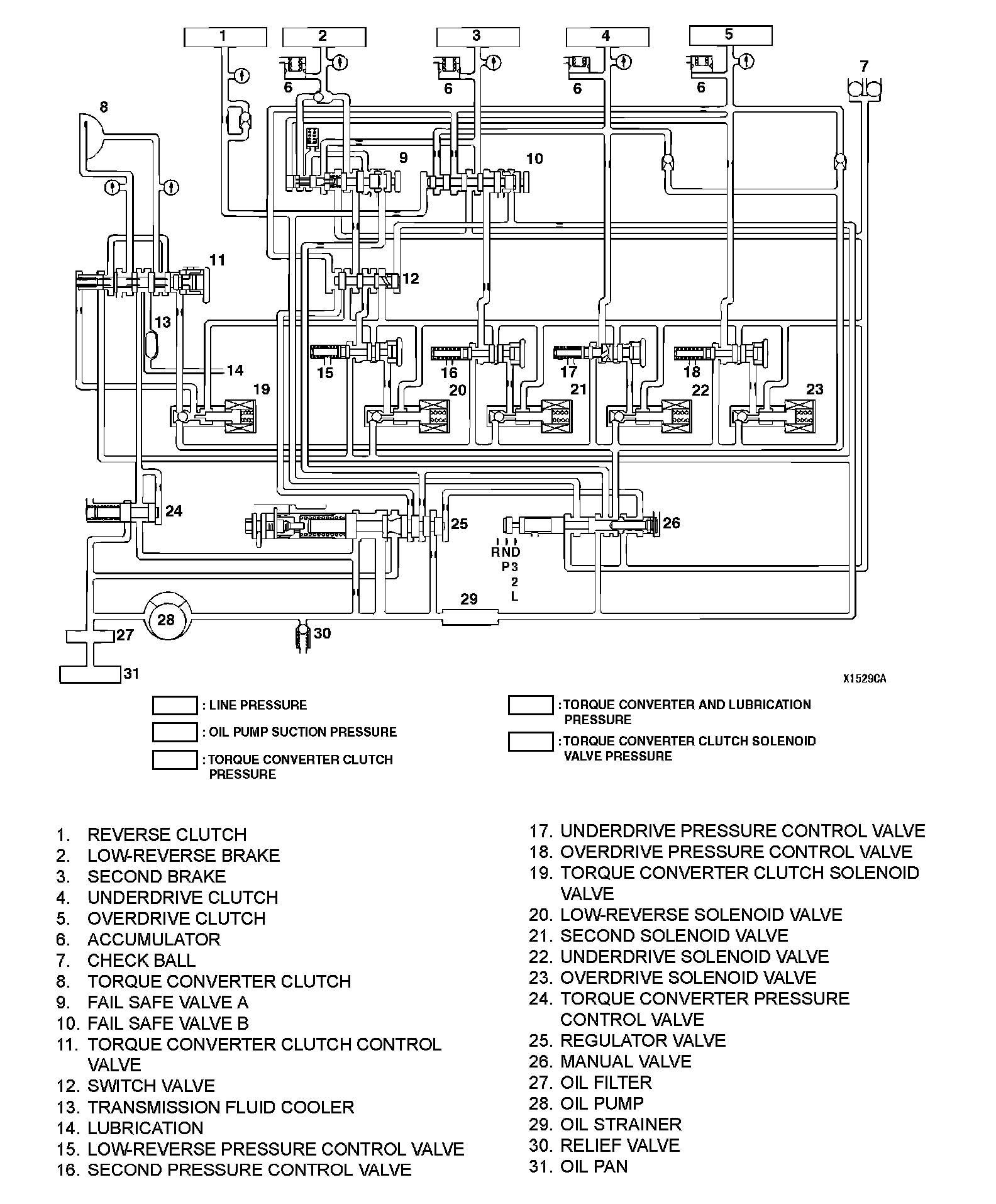

4TH GEAR [4A/T]
4TH GEAR [4A/T]:

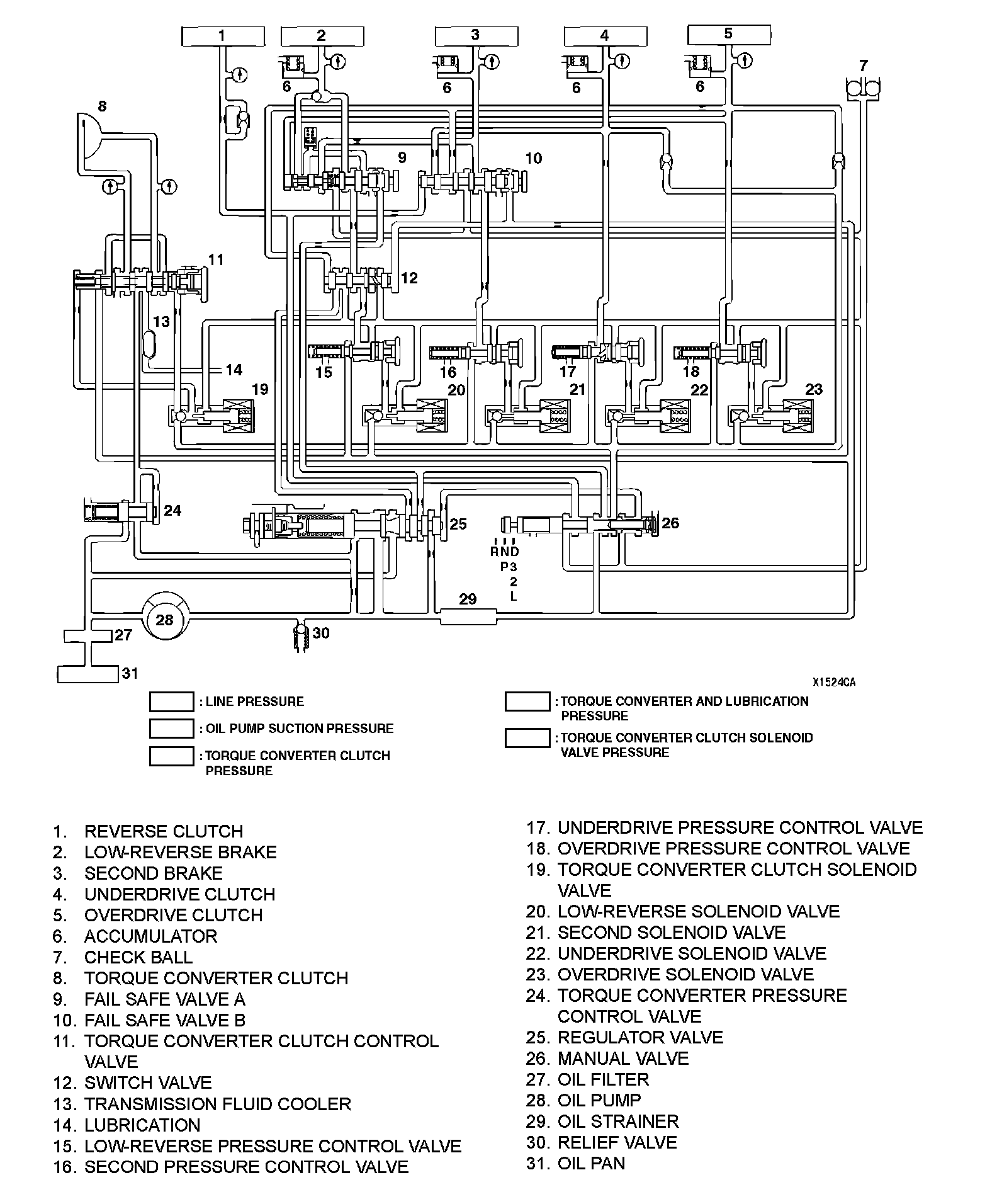

REVERSE GEAR [4A/T]
Reverse Gear [4A/T]:
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE A OPERATION) [4A/T]
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE A OPERATION) [4A/T]:
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE B OPERATION) [4A/T]
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE B OPERATION) [4A/T]:

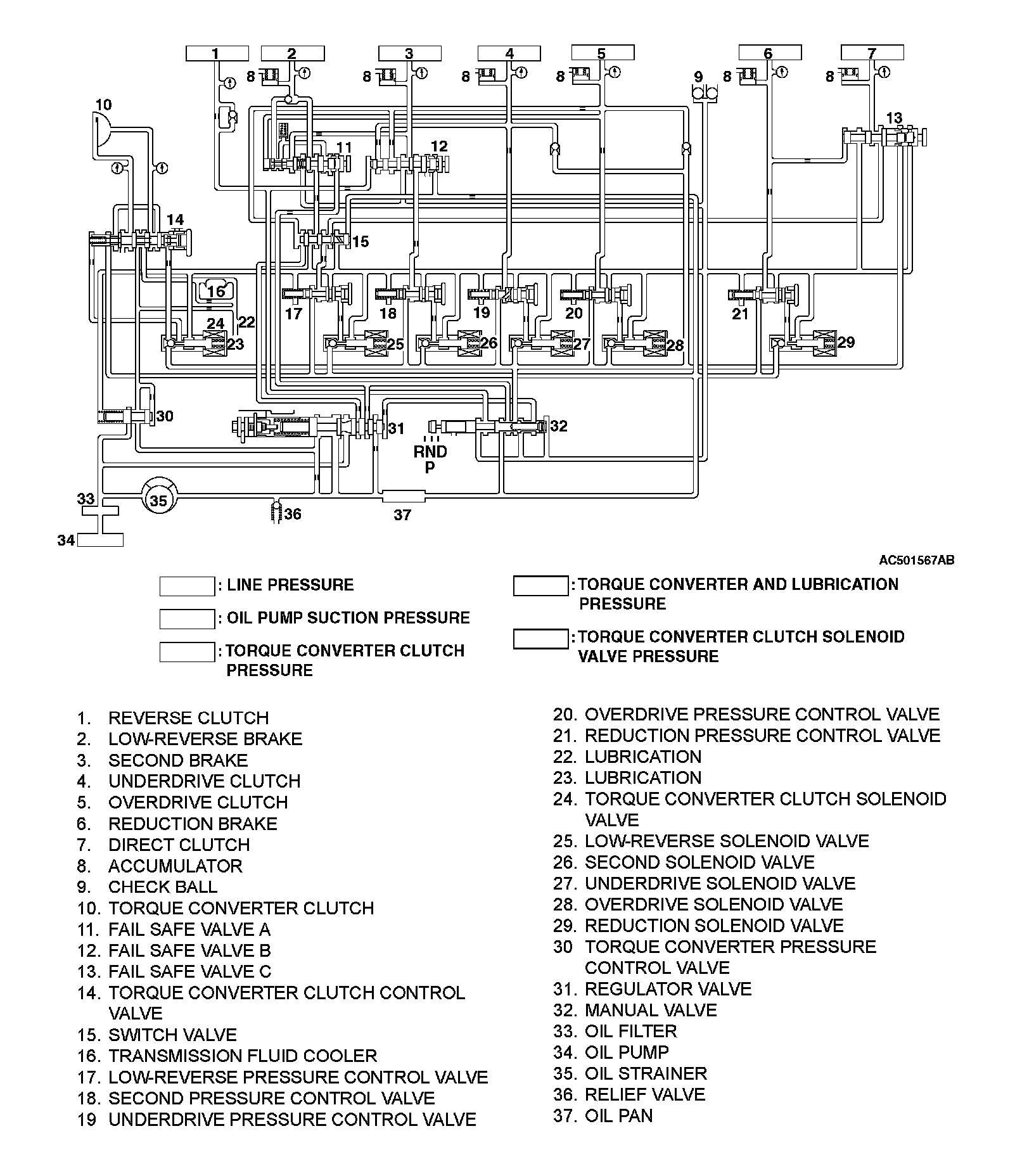

PARKING AND NEUTRAL [5A/T]
PARKING AND NEUTRAL [5A/T]:

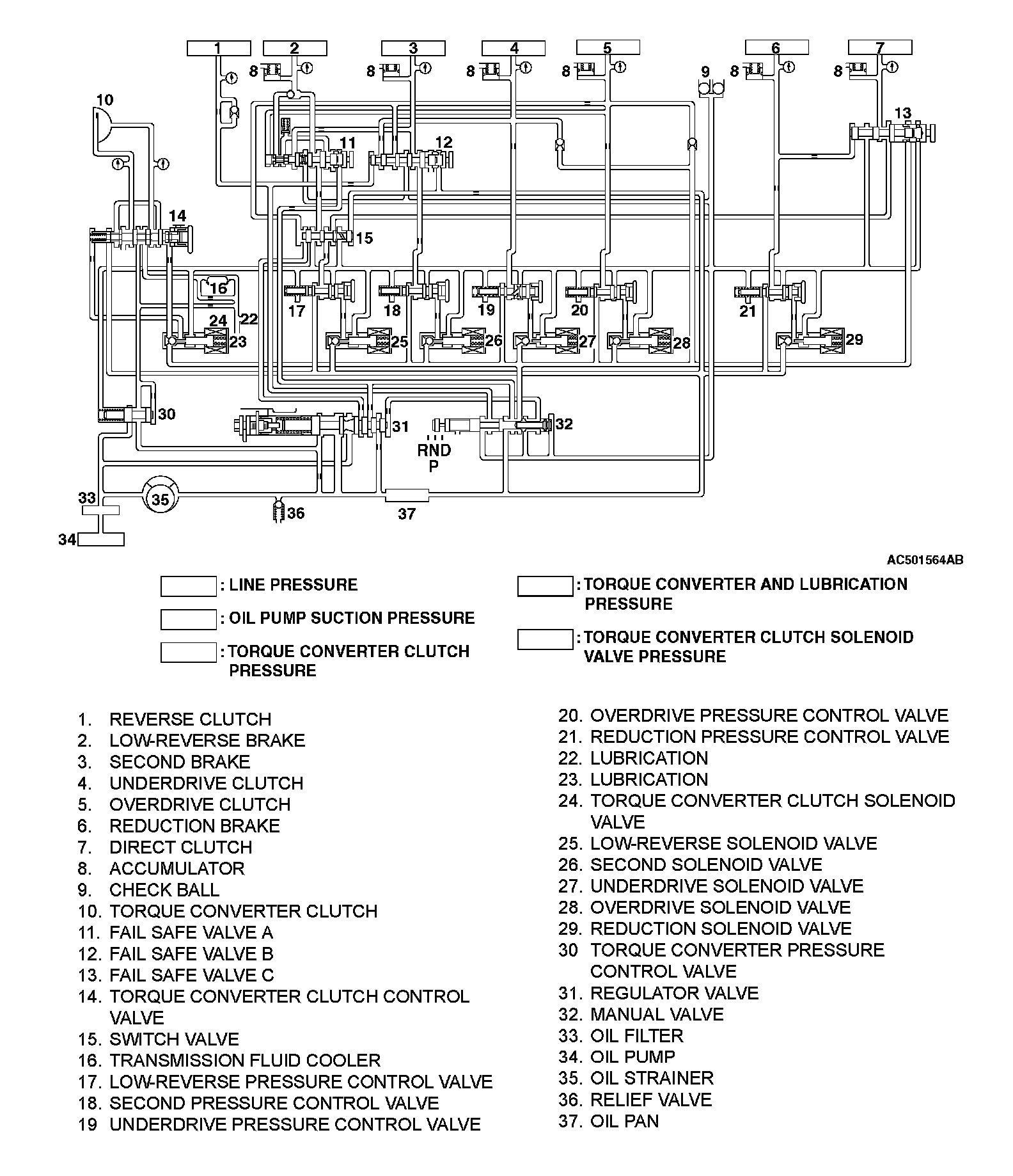

1ST GEAR [5A/T]
1ST GEAR [5A/T]:

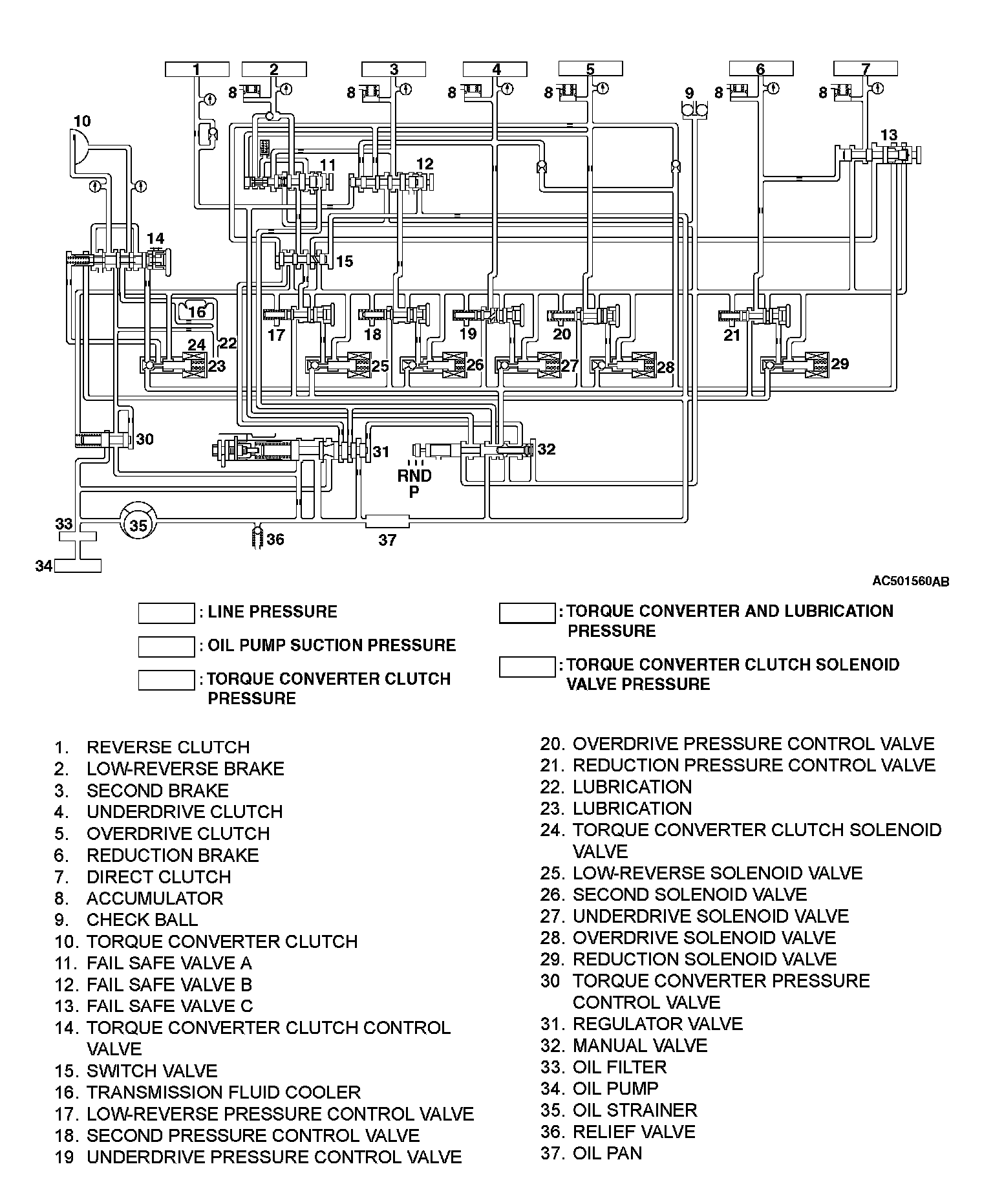

2ND GEAR [5A/T]
2ND GEAR [5A/T]:

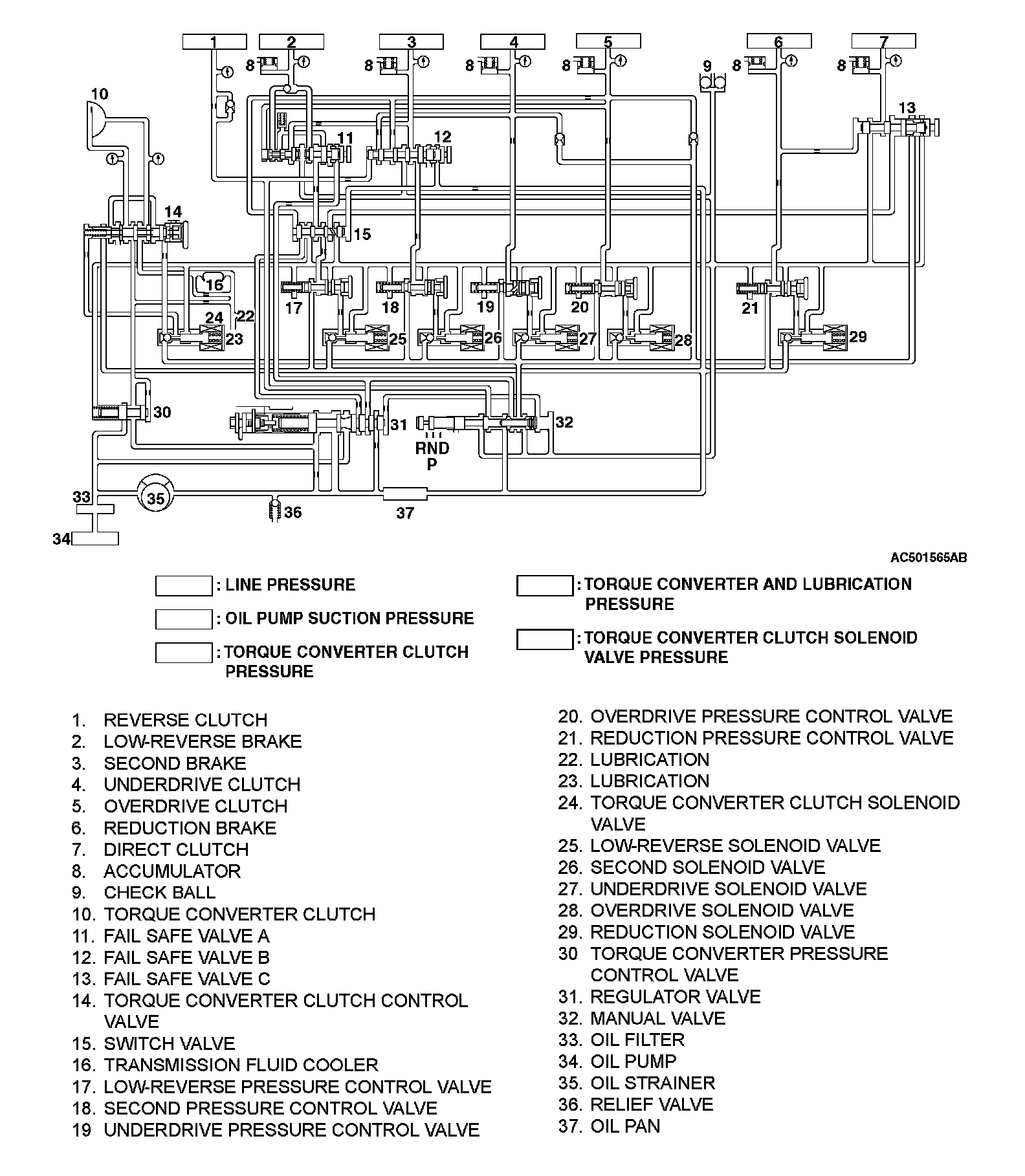

3RD GEAR [5A/T]
3RD GEAR [5A/T]:

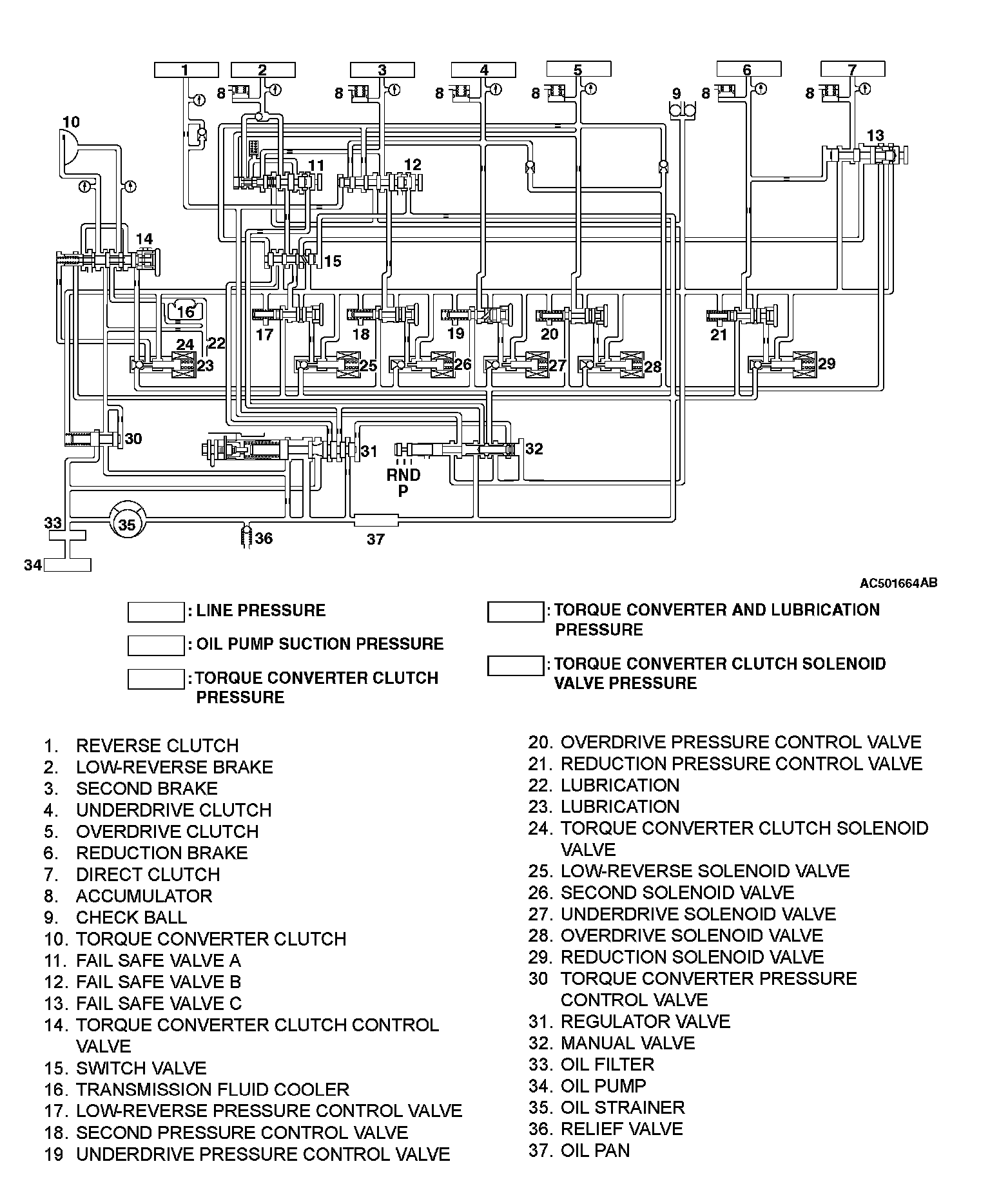

4TH GEAR [5A/T]
4TH GEAR [5A/T]:

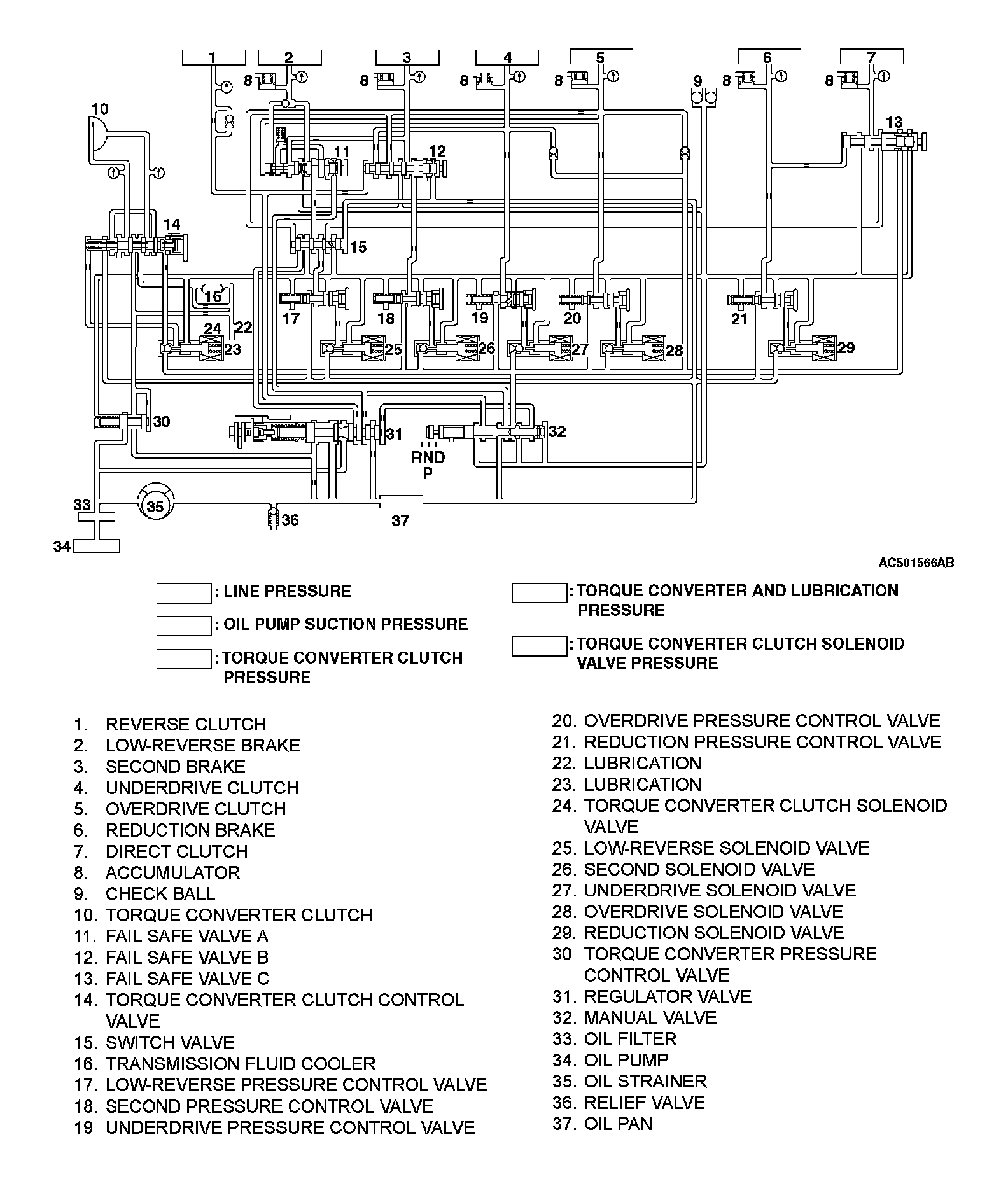

5TH GEAR [5A/T]
5TH GEAR [5A/T]:

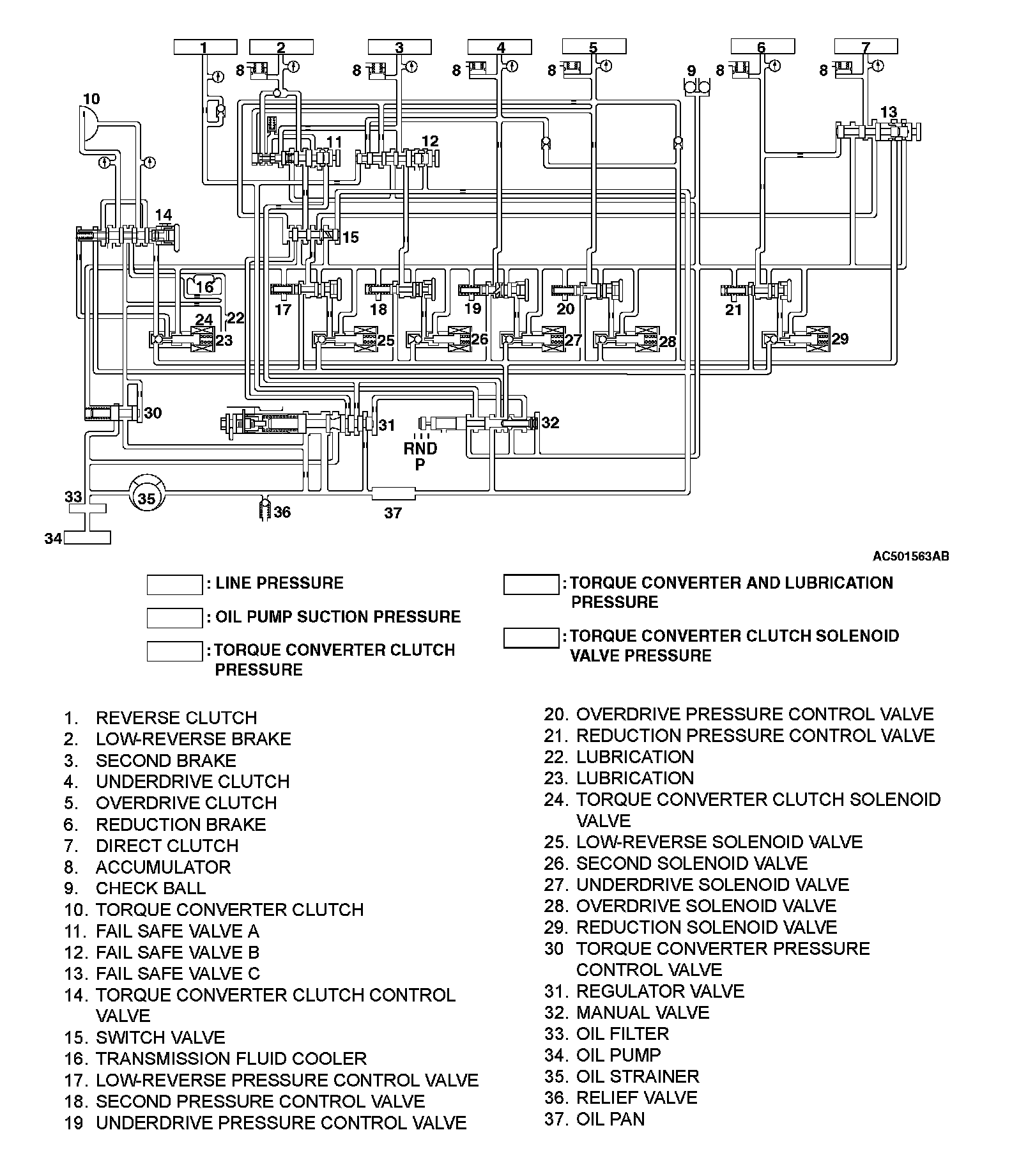

REVERSE GEAR [5A/T]
REVERSE GEAR 5A/T:

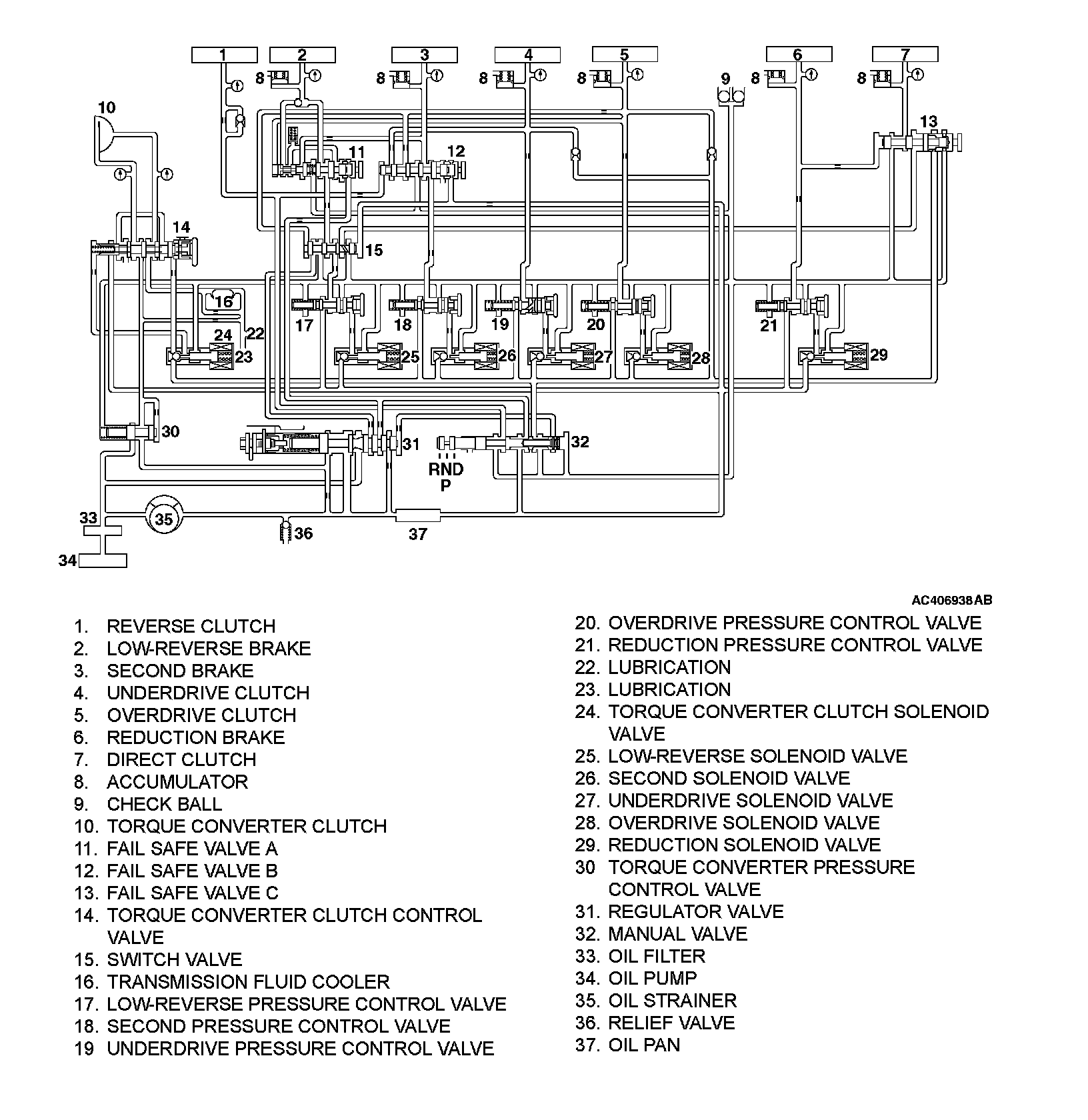

FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE A OPERATION) [5A/T]
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE A OPERATION) [5A/T]:

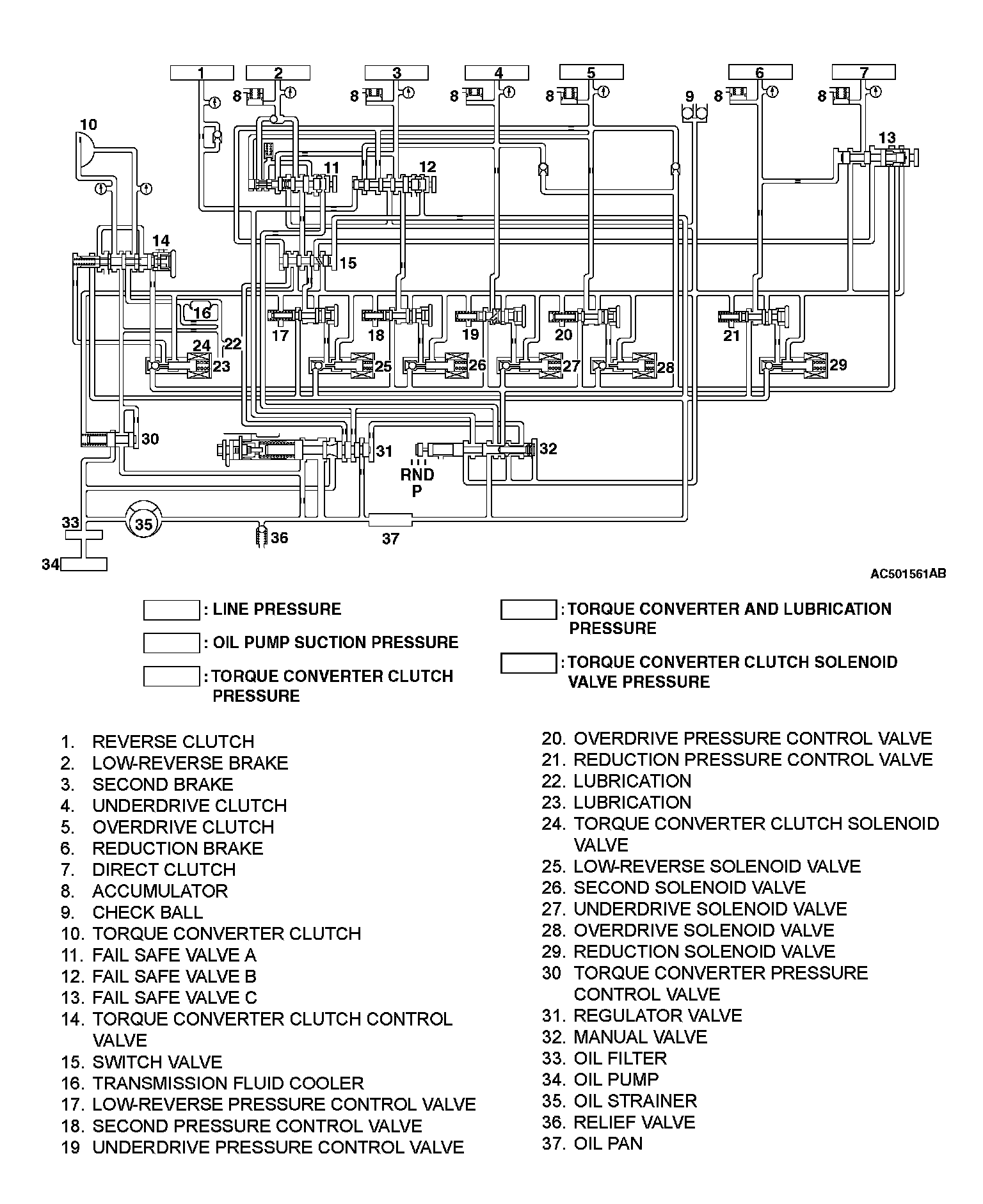

FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE B OPERATION) [5A/T]
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE B OPERATION) [5A/T]:
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE C OPERATION) [5A/T]
FAIL-SAFE (IN CASE OF FAIL-SAFE VALVE C OPERATION) [5A/T]:
PARKING AND NEUTRAL [4A/T]
PARKING AND NEUTRAL [4A/T]:
PARKING AND NEUTRAL [5A/T]
PARKING AND NEUTRAL [5A/T]:
