Suspension - Revised Ball Joint Tool Application

No.: TSB-08-23-003

Date: May, 2008

Model:
See Below

SUBJECT:
CORRECTED APPLICATION DESCRIPTION FOR SPECIAL TOOL - SERVICE MANUAL REVISION

PURPOSE

The description of the application for special tool MB991897 is incorrect in the applicable Service Manuals. This Technical Service Bulletin provides the corrected information.

AFFECTED VEHICLE(S)
2004 - 09 Galant
2004 - 09 Eclipse
2004 - 09 Eclipse Spyder

APPLICABLE MANUAL(S)

Due to the large number of applicable manuals, individual Service Manual pages are not identified. Replace the applicable Special Tools page in the Service Manual, with the corrected attachment.

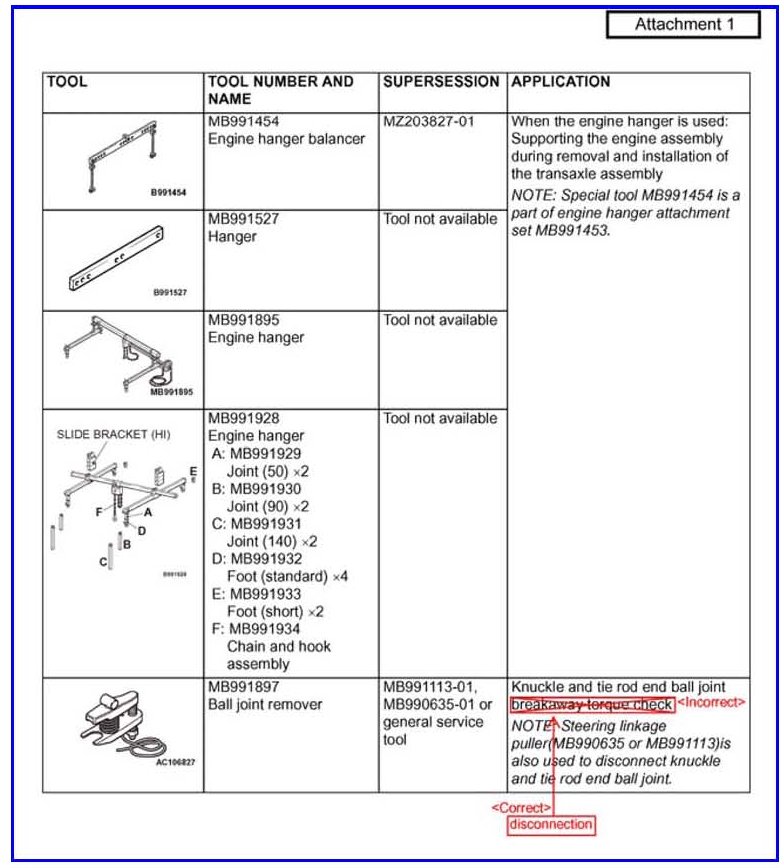

Updated Service Manual Page.
