Rear Suspension Bushing Replacement

REAR SUSPENSION BUSHING REPLACEMENT

Required Special Tools:
^ MB992107: Rear Suspension Bush Replacer

1. Remove the shock absorber assembly, stabilizer link connection nut and lower arm assembly.

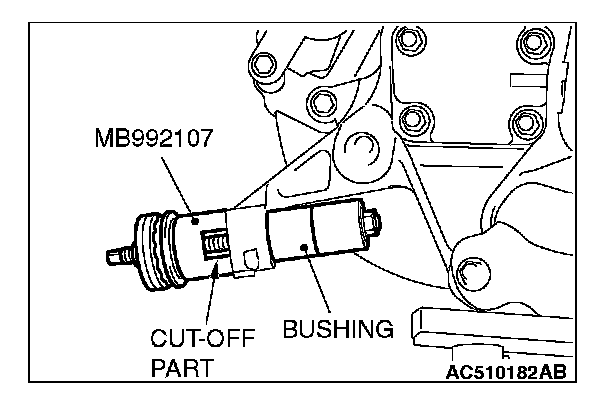

2. Use special tool MB992107 to remove the bush as shown in the illustration.





3. Press in the bushing until its end is flush with the knuckle by observing through the cut-off part of the special tool.
