STEERING WHEEL FREE PLAY CHECK
1. With the engine running (hydraulic operation), set the front wheels straight ahead.

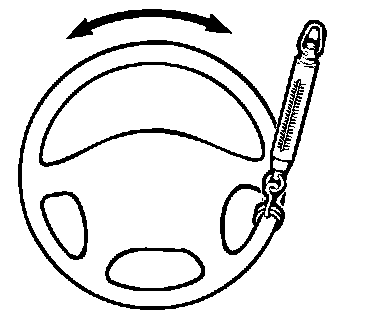

2. Slightly move the steering wheel in both directions and measure the play on the steering wheel circumference before the wheels start to move.
Limit: 30 mm (1.2 inch)
3. If the play exceeds the limit, check on the steering shaft and steering linkage connection. Correct or replace.
4. If the free play still exceeds the limit value, set the steering wheel straight ahead with the engine stopped. Apply 5 N (1.1 pound)towards the steering wheel circumference and check the play.
Standard value (steering wheel play with the engine stopped): 10 mm (0.4 inch) or less
5. If the play exceeds the standard value, remove the steering gear and check the total pinion torque.
