Steering - Power Steering Tube Markings Revision
No.: TSB-08-37-003DATE: March, 2008
MODEL:
See Below
SUBJECT:
MARKINGS FOR POWER STEERING PRESSURE TUBES - SERVICE MANUAL REV.
PURPOSE
Certain marks to identify the Power Steering Pressure Tubes shown in the illustrations in the attachments have been eliminated in production. Vehicles built on or after July 2, 2007, will not have the markings shown in the deleted illustrations. If a vehicle is to be repaired and old and new parts are mixed during the repair apply the corrected information and ignore the markings.
This Technical Service Bulletin advises that those illustrations are deleted from the applicable Service Manual(s).
AFFECTED VEHICLE(S)
Affected vehicles built on or after July 2, 2007
2008 Eclipse/Eclipse Spyder
2007-08 Galant
2007-08 Endeavor
Check vehicle production date prior to applying this Service Manual Revision.

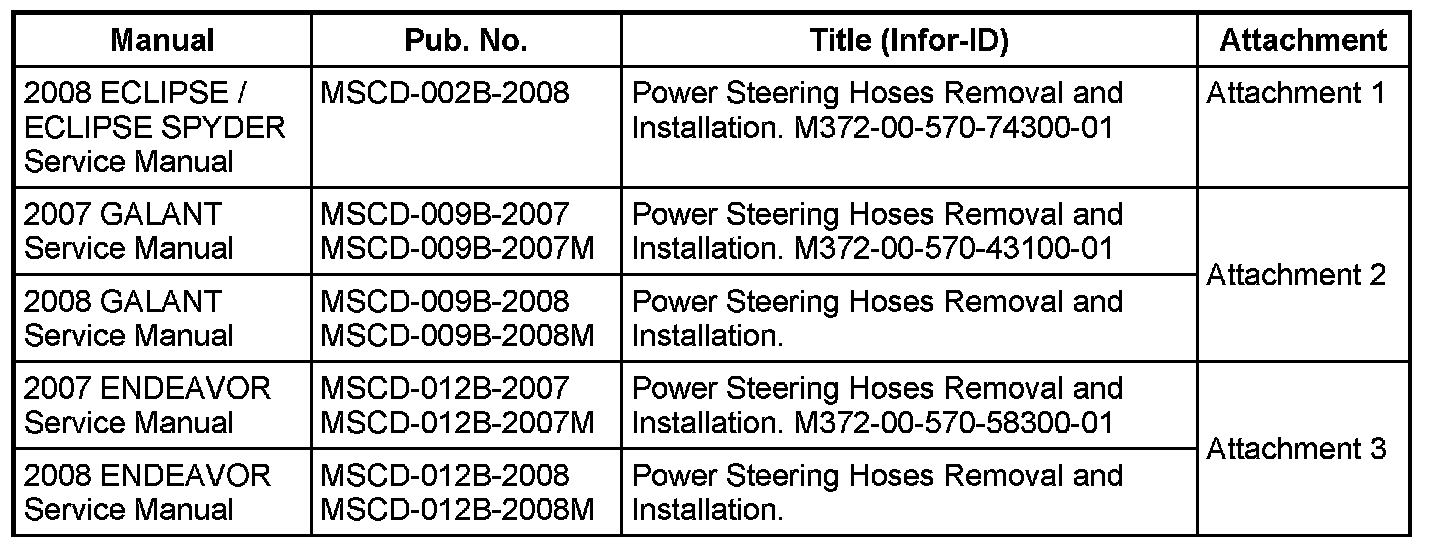

APPLICABLE SERVICE MANUAL(S)

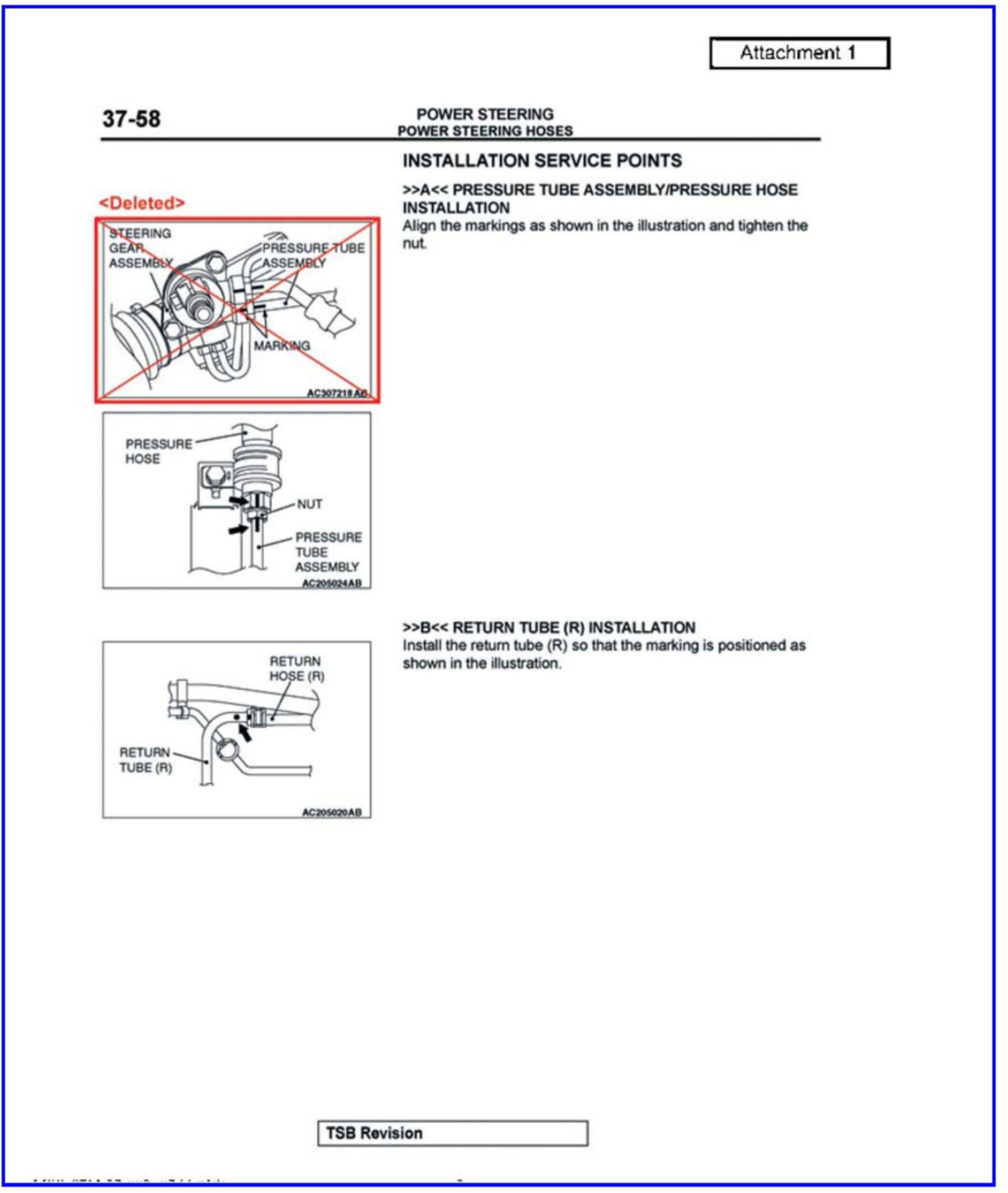

service Manual Revision - Attachment 1

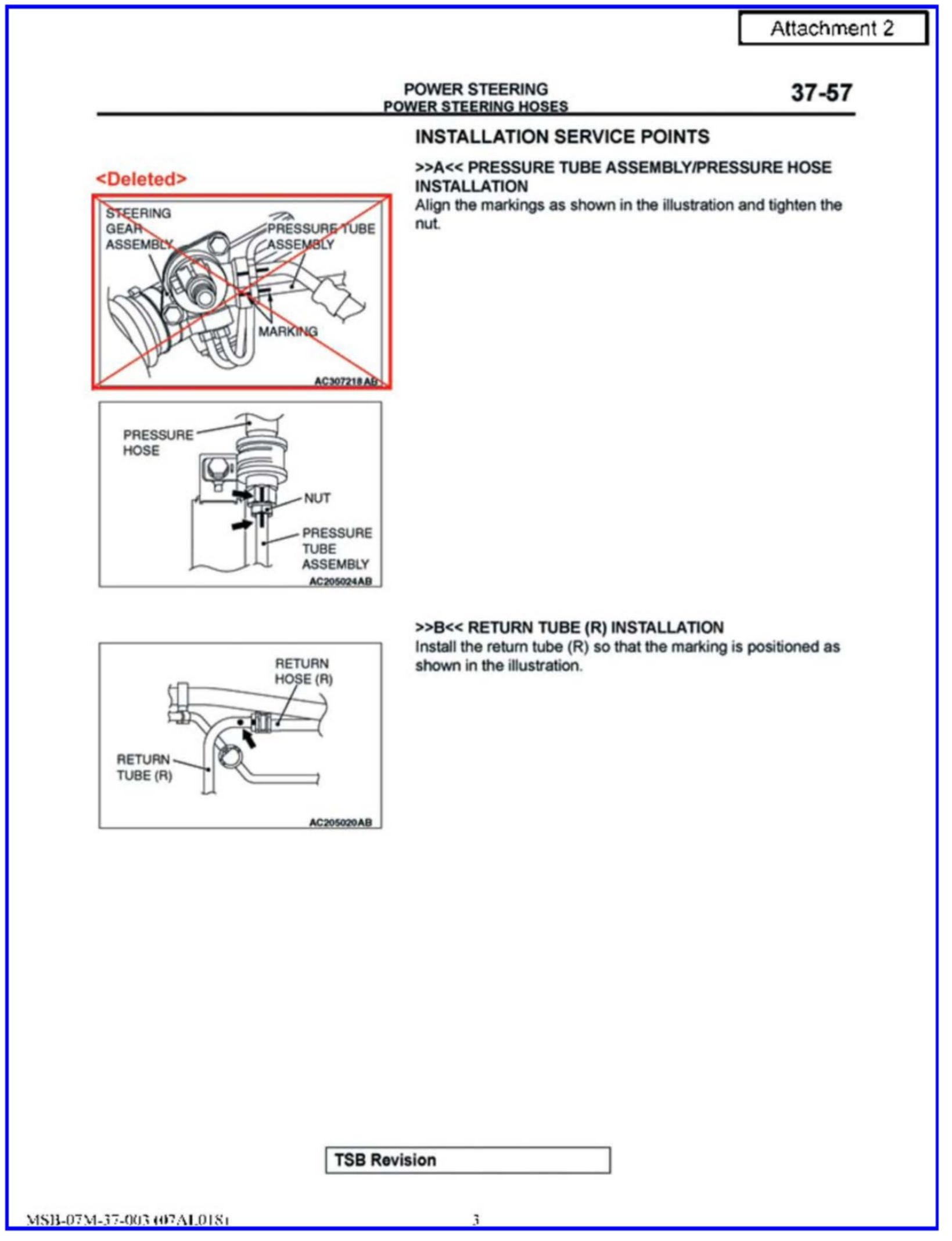

Service Manual Revision - Attachment 2

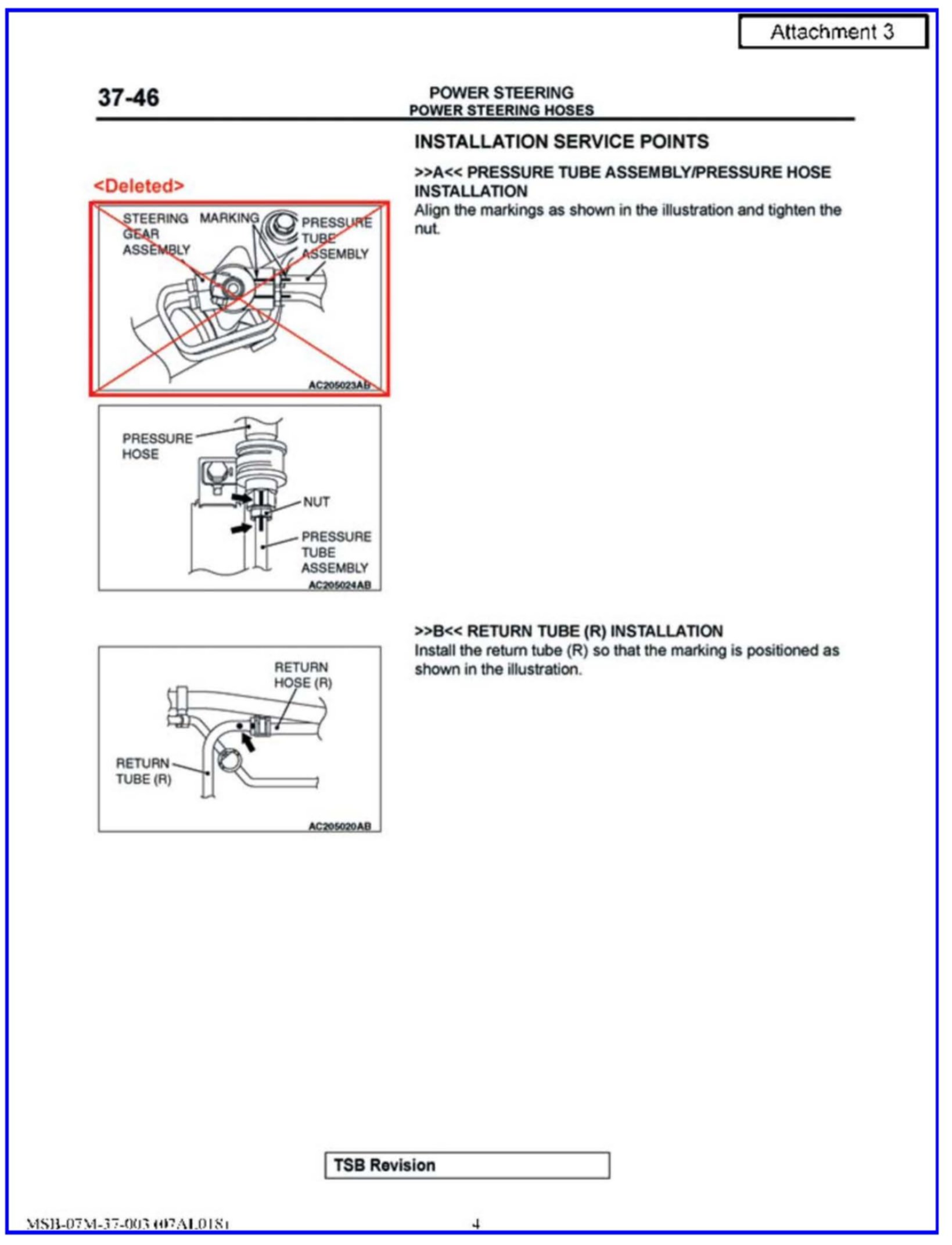

Service Manual Revision - Attachment 3
