Auxiliary Power Outlet: Service and Repair

REMOVAL AND INSTALLATION

Removal Steps 1-11:

REMOVAL SERVICE POINT

[[A]] ACCESSORY SOCKET (BATTERY) CASE B/ ACCESSORY SOCKET (BATTERY) COVER/ FLOOR CONSOLE PLATE BOX REMOVAL

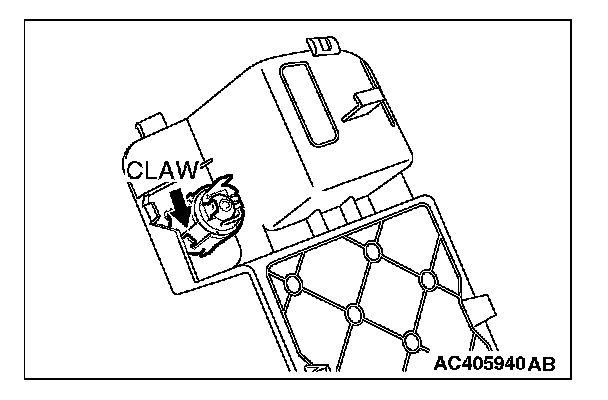

Disengage the claw shown in the illustration and remove the accessory socket (BATTERY) case B and accessory socket (BATTERY) cover.
