Heating and Air Conditioning

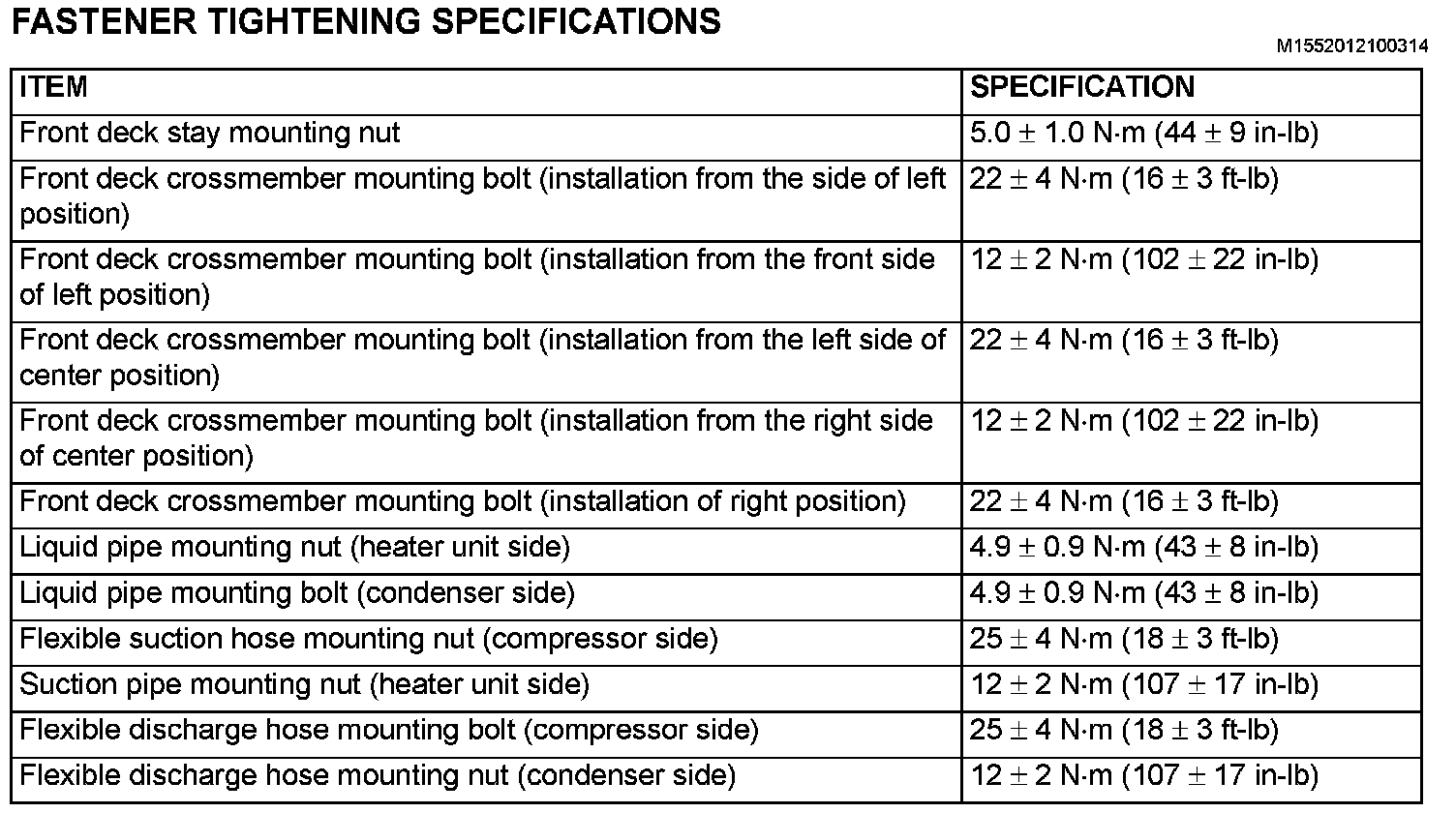

Fastener Tightening Specifications:

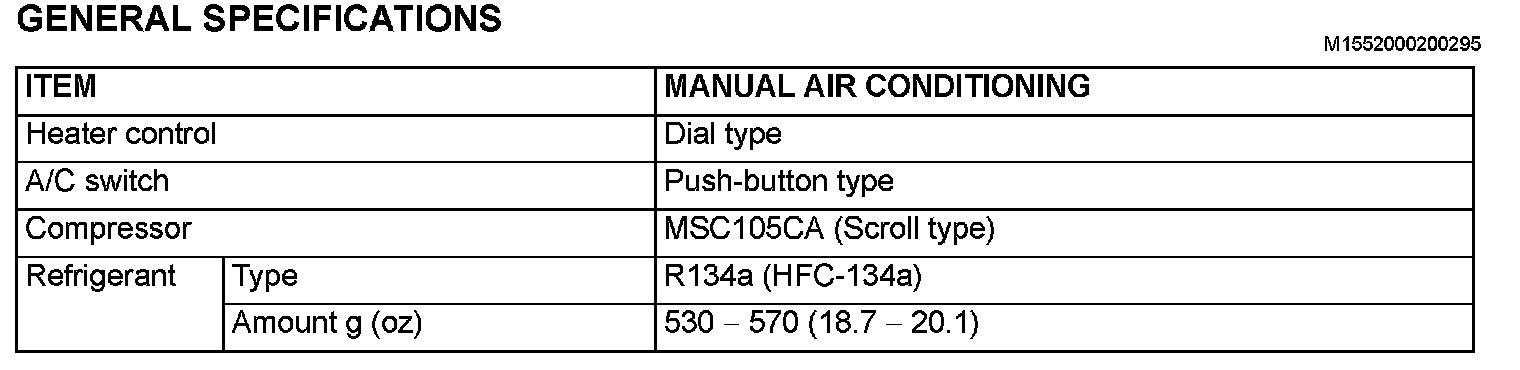

General Specifications:

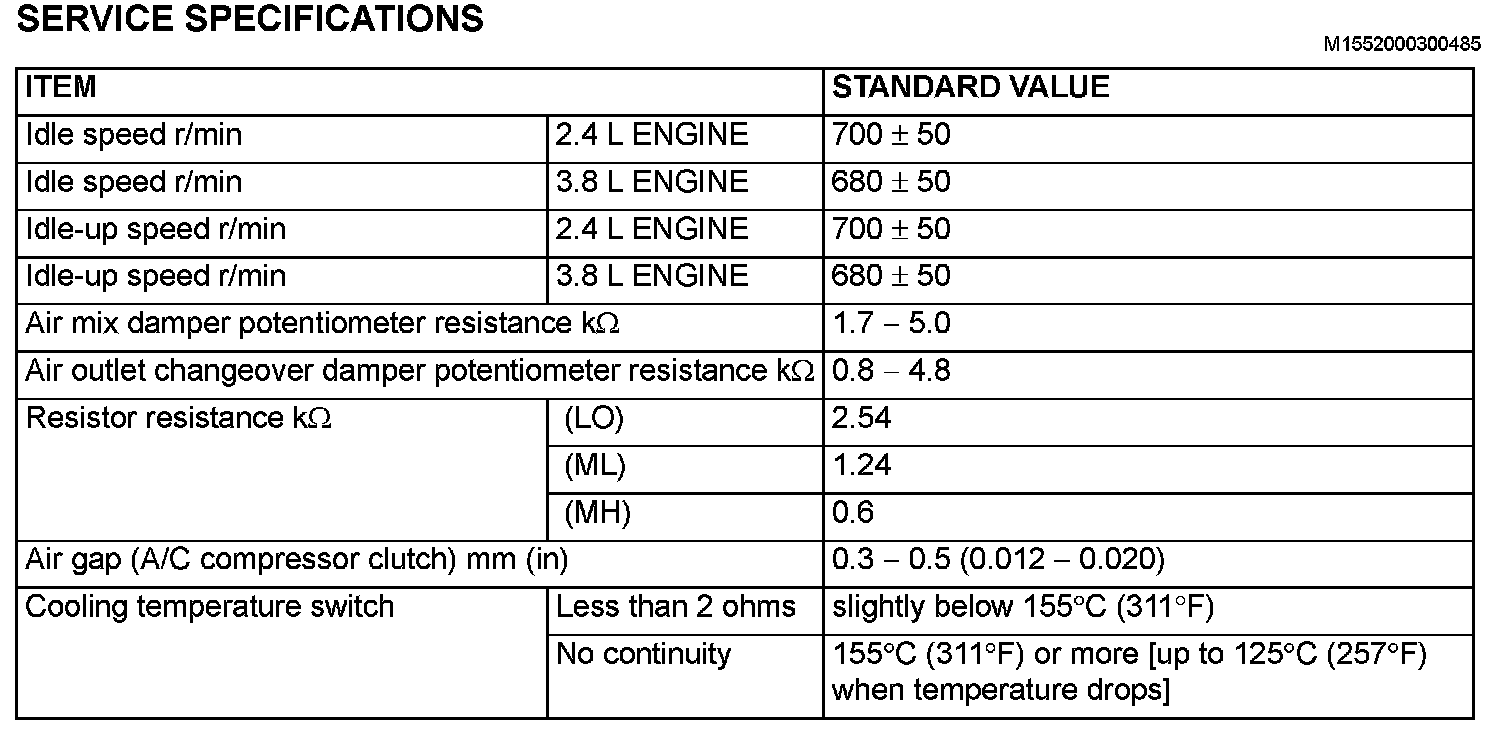

Service Specifications:
