Oil Pan, Engine

OIL PAN

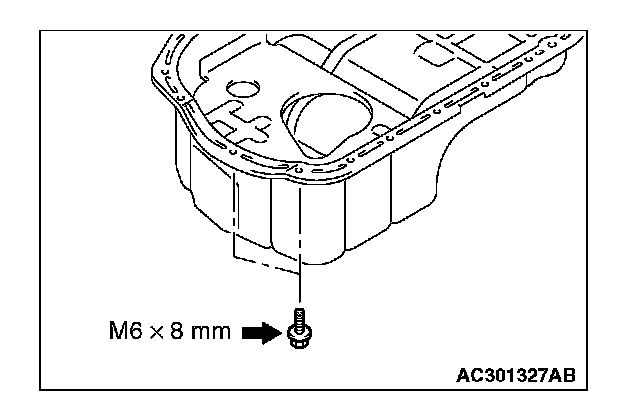

Tighten the engine oil pan mounting bolts to the specified torque. Be careful when installing, as the bolts indicated in the illustration have different lengths from the other bolts.
Tightening torque 9.0 ± 3.0 Nm (80 ± 26 in-lb)
